Chapter 10 Digital KeypadC2000-HS
10-17

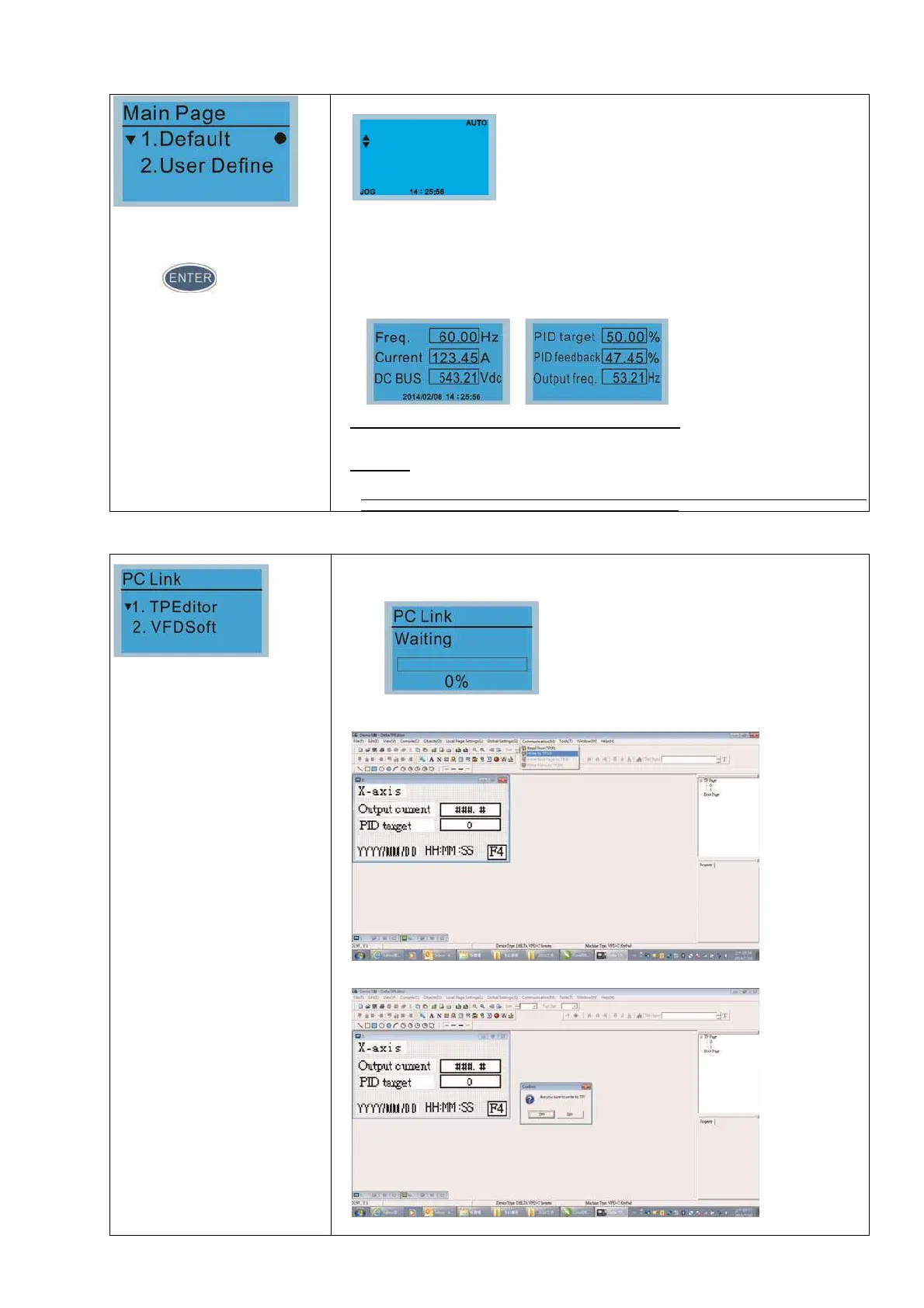

14. Main page
Default picture and editable
picture are available upon
selection.
Press
to select.
1. Default page
F
H
u
60.00Hz
540.0Vdc
0.00Hz
F 60.00Hz >>> H >>> A >>> U (circulate)
2. User Defined: optional accessory is require (TPEditor & USB / RS-485
Communication Interface-IFD6530)
Install an editing accessory would allow users to design their own main
page. If editor accessory is not installed, “user defined” option will display
a blank page.
USB/RS-485 Communication Interface-IFD6530
Please refer to Chapter 07 Optional Accessories for more detail.
TPEditor
Go to Delta’s website to download TPEditor V1.60 or later versions.
http://www.deltaww.com/services/DownloadCenter2.aspx?secID=8&pid=2&tid=0&CID=06&itemID=060302&typeID=1&dow
nloadID=,&title=-- Select Product Series --&dataType=8;&check=1&hl=en-US
15. PC Link
1. TPEditor: This function allows users to connect the keypad to a
computer then to download and edit user defined pages.
Click ENTER to go to <Waiting to
connect to PC>
In TPEditor, choose <Communication>, then choose “Write to HMI”
Choose <YES> in the <Confirm to Write> dialogue box.
To Next Page
