Chapter 12 Description of Parameter SettingsC2000-HS
12.1-02-25

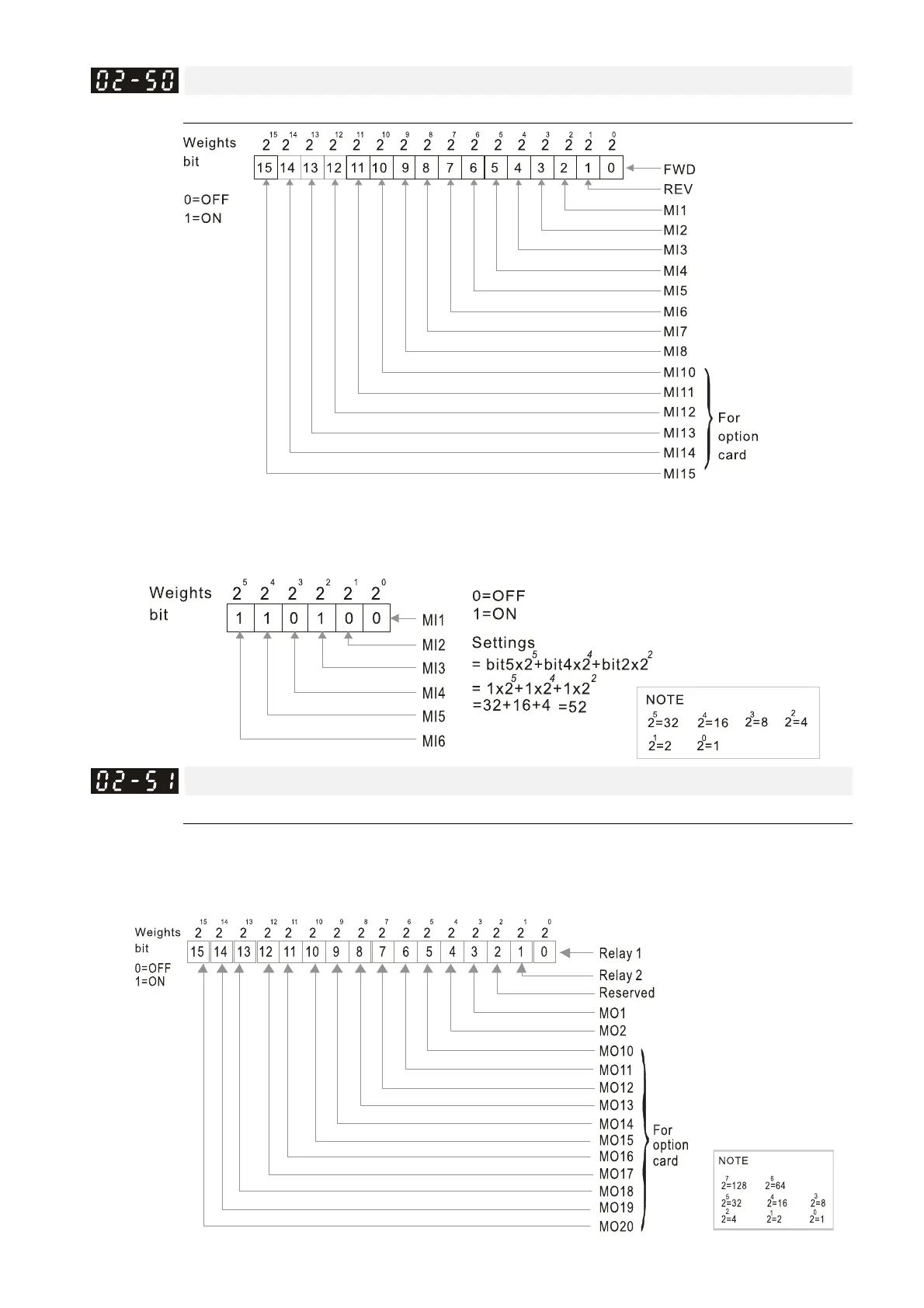

Display the Status of Multi-function Input Terminal
Default: Read only
Example:
When Pr. 02-50 displays 0034h (hex), (that is, the value is 52 (decimal), and 110100 (binary)). It
means MI1, MI3 and MI4 are ON.
Display the Status of Multi-function Output Terminal
Default: Read only
Example:
When Pr. 02-51 displays 000Bh (hex) (that is, the value is 11 (decimal), and 1011 (binary)). It
means that RY1, RY2 and MO1 are ON.
