Chapter 12 Description of Parameter SettingsC2000-HS
12.1-06-8

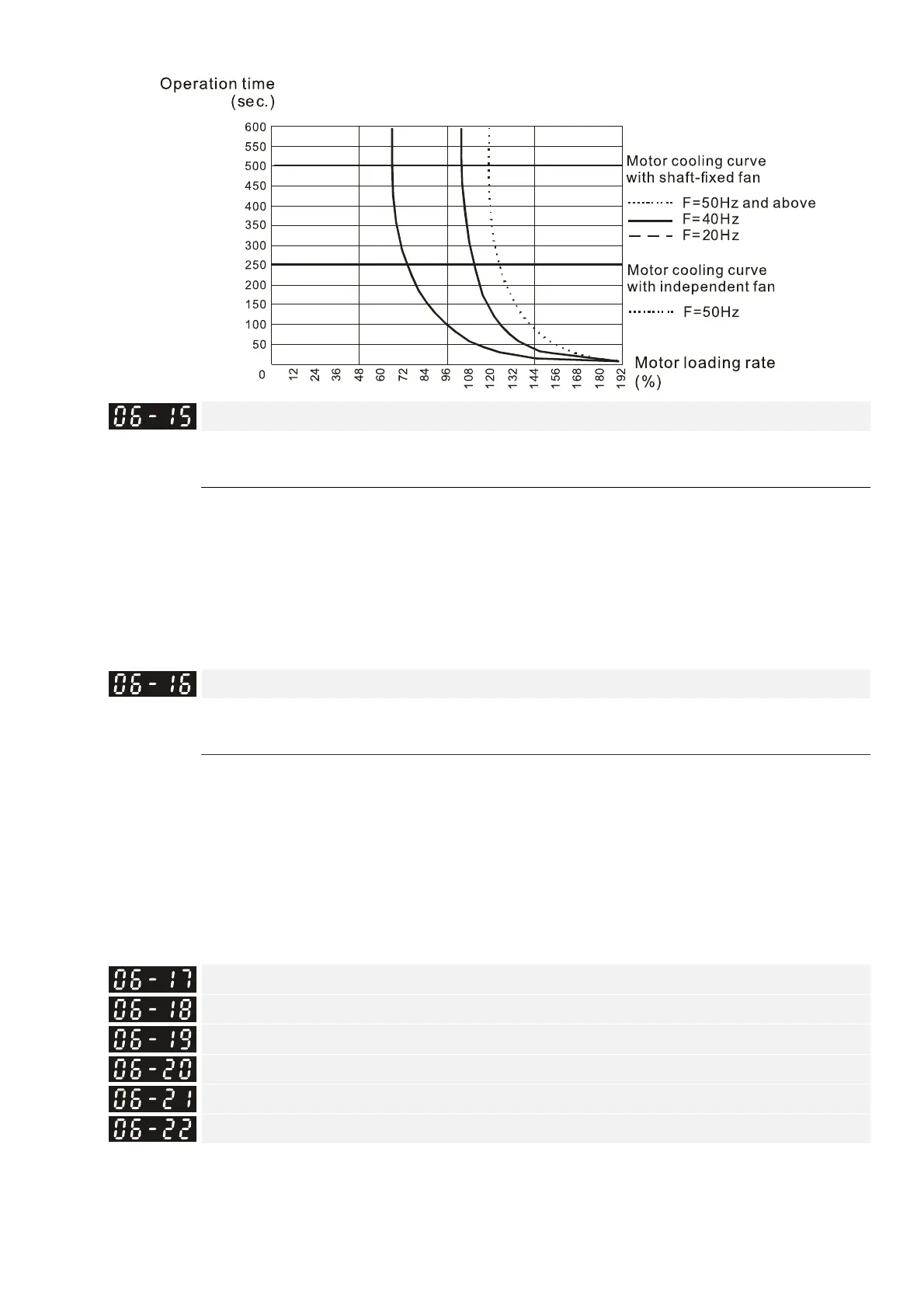

Temperature Level Over-heat (oH) Warning
Default: 105.0
Settings 0.0–110.0ºC
If Pr. 06-15 is set to 110ºC, when the temperature reaches 110ºC, the drive stops with an IGBT
over-heat fault.
For Frame C and above, when IGBT temperature is above Pr. 06-15 minus 15ºC, the cooling fan
enhances performance to 100%; however, when IGBT temperature is below 35ºC of Pr. 06-15
and the temperature of CAP is below 10ºC of oH2 over-heat warning (Pr. 06-51), the cooling fan
resets. The temperature 35ºC is the criterion if Pr. 06-15 is set below 35ºC.
Stall Prevention Limit Level (Weak Magnetic Area Current Stall Prevention Level)
Default: 100
Settings 0–100% (Refer to Pr. 06-03, Pr. 06-04)
Sets the over-current stall prevention level when operation frequency is larger than Pr.01-01. This
parameter only works during acceleration.
Example: Pr. 06-03 = 150%, Pr. 06-04 = 100% and Pr. 06-16 = 80%, when the operation
frequency is larger than Pr. 01-01, the over-current stall prevention Level during acceleration is:
Pr. 06-03 × Pr. 06-16 = 150 × 80% = 120%.
Pr. 06-16 is invalid when the over-current stall prevention activates according to Pr. 06-04 at
constant speed.
Fault Record 1
Fault Record 2
Fault Record 3
Fault Record 4
Fault Record 5
Fault Record 6
Settings
0: No fault record
1: Over-current during acceleration (ocA)
