3-2 The Lifting Hook

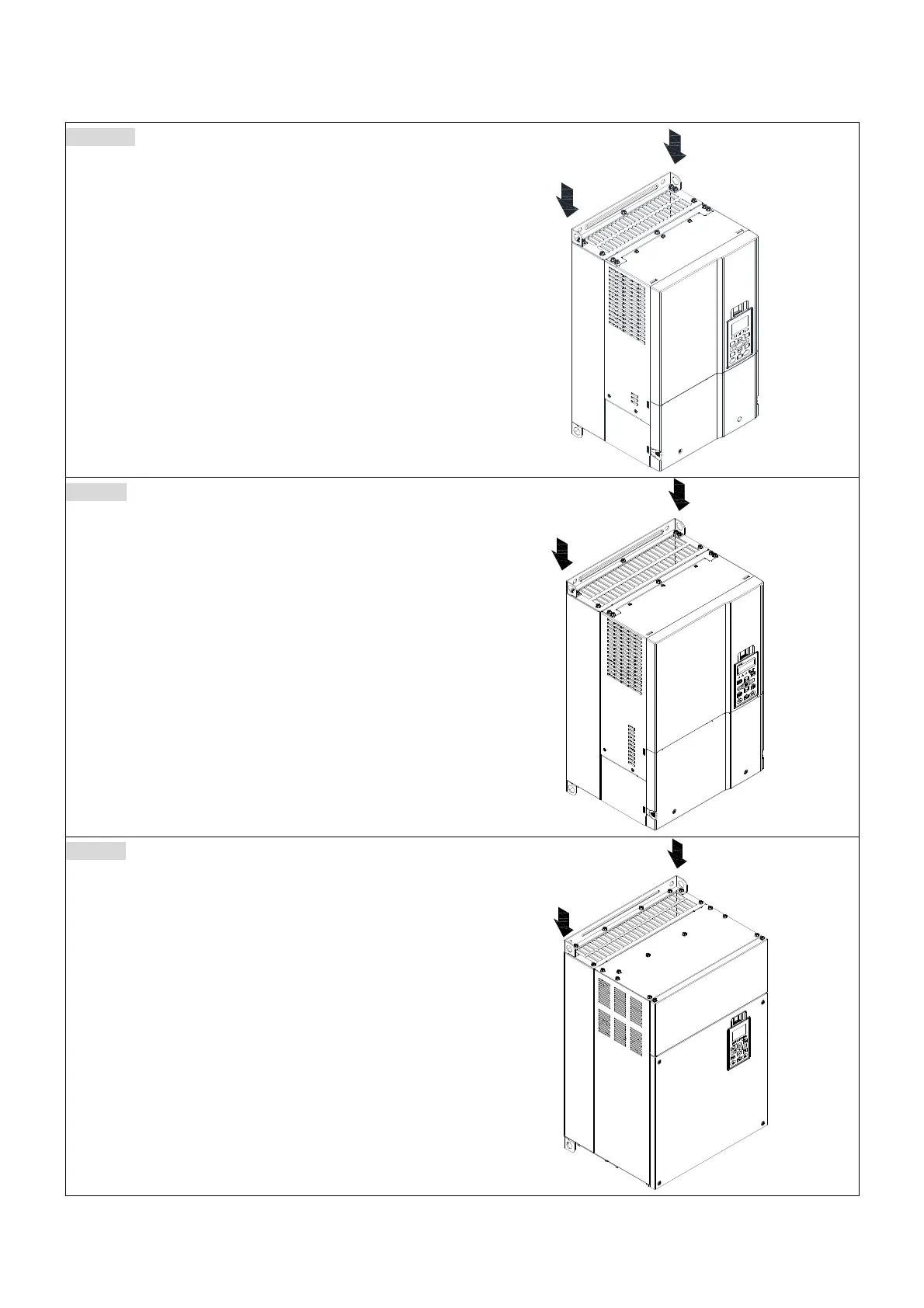

The arrows indicate the location of the lifting holes of frame D0 to H, as shown in figures below:
Frame D0
Applicable models: VFD300C43S-HS; VFD370C43S-HS
D0
Frame D
Applicable models: VFD750C43A-HS
D
Frame E
Applicable models: VFD1100C43A-HS
E
D0
D
E
Figure 3-21
Figure 3-22
Figure 3-23
