Chapter 16 PLC Function ApplicationsC2000-HS
16-14
16-3-5 Program download
After inputting a program using WPLSoft, select compile
. After completing compilation, select
the
to download a program. WPLSoft will perform program download with the online PLC in the
communications format specified in communications settings.
16-3-6 Program monitoring

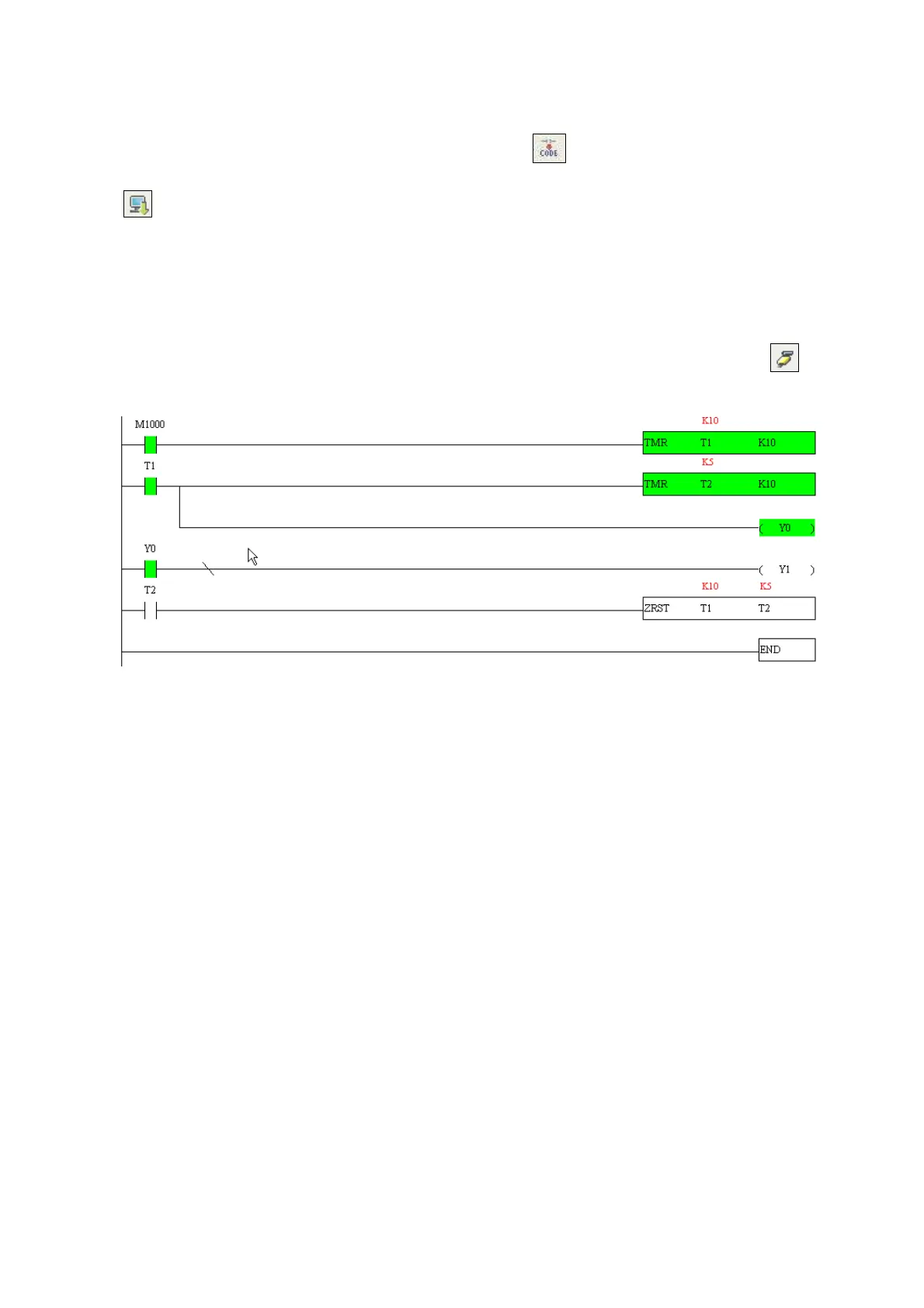

While confirming that the PLC is in the Run mode, after downloading a program, click on
in the
communications menu and select start ladder diagram control (see figure below)
