Chapter 6 Control TerminalsC2000-HS
6-9

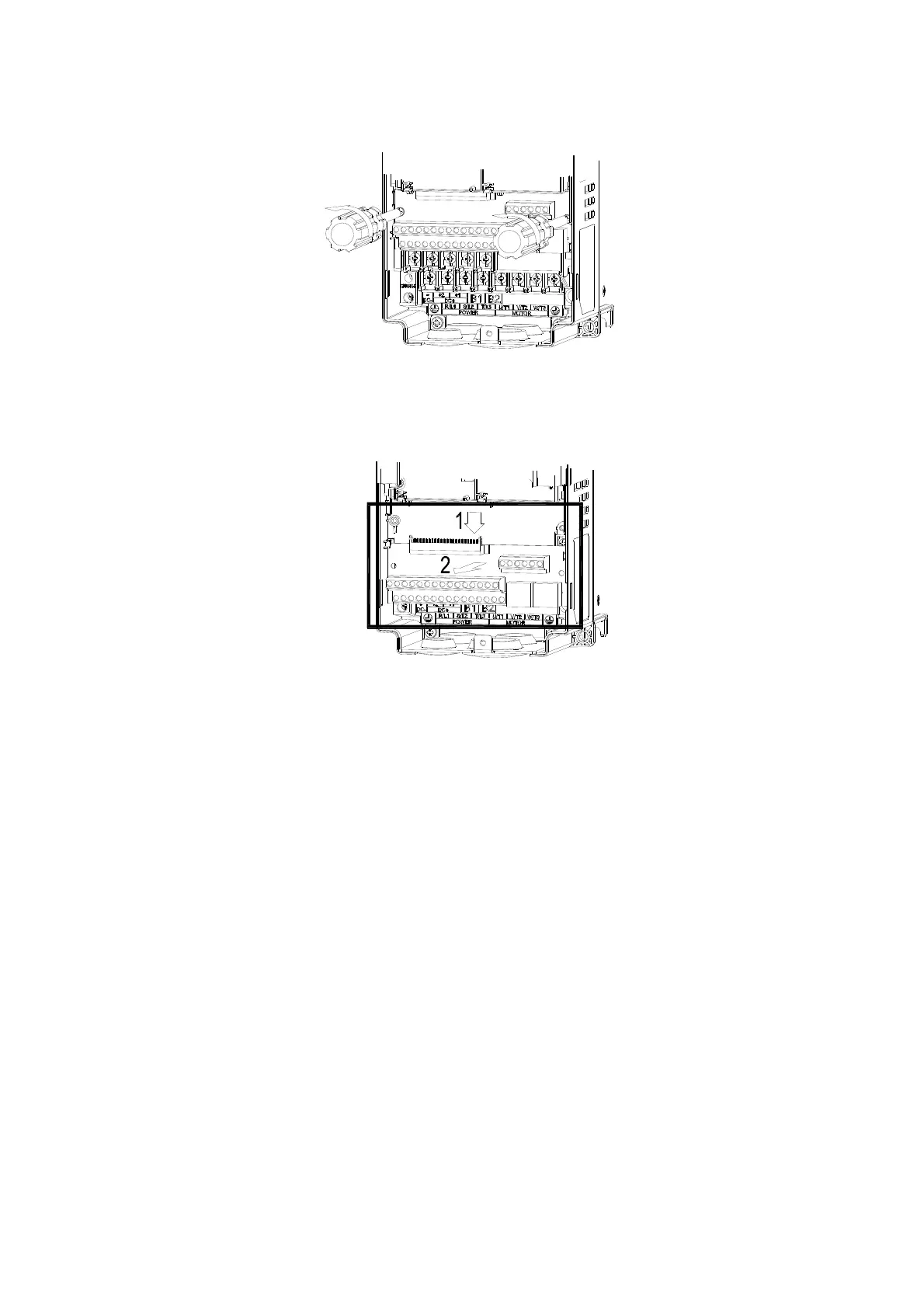

6-3 Remove the Terminal Block
1. Loosen the screws by screwdriver. (As shown in figure below).
Figure 6-18
2. Remove the control board by pulling it out for a distance 6–8 cm (as 1 in the figure) then lift the
control board upward (as 2 in the figure).
Figure 6-19
