Chapter 16 PLC Function ApplicationsC2000-HS
16-95
API
ATAN
Binary floating point number ATAN operation
135
D P
Bit device Word device
16-bit command
－ － － －
32-bit command (9 STEP)
DATAN Continuous
execution type
DATANP Pulse
execution type
Flag signal: none
X Y M K H KnX KnY KnM T C D
S * * *
D *
Notes on operand usage:
Please refer to the function specifications table for each device in
series for the scope of device usage
S: the designated source (binary floating point number). D: the ATAN value result.
ATAN value =tan
-1

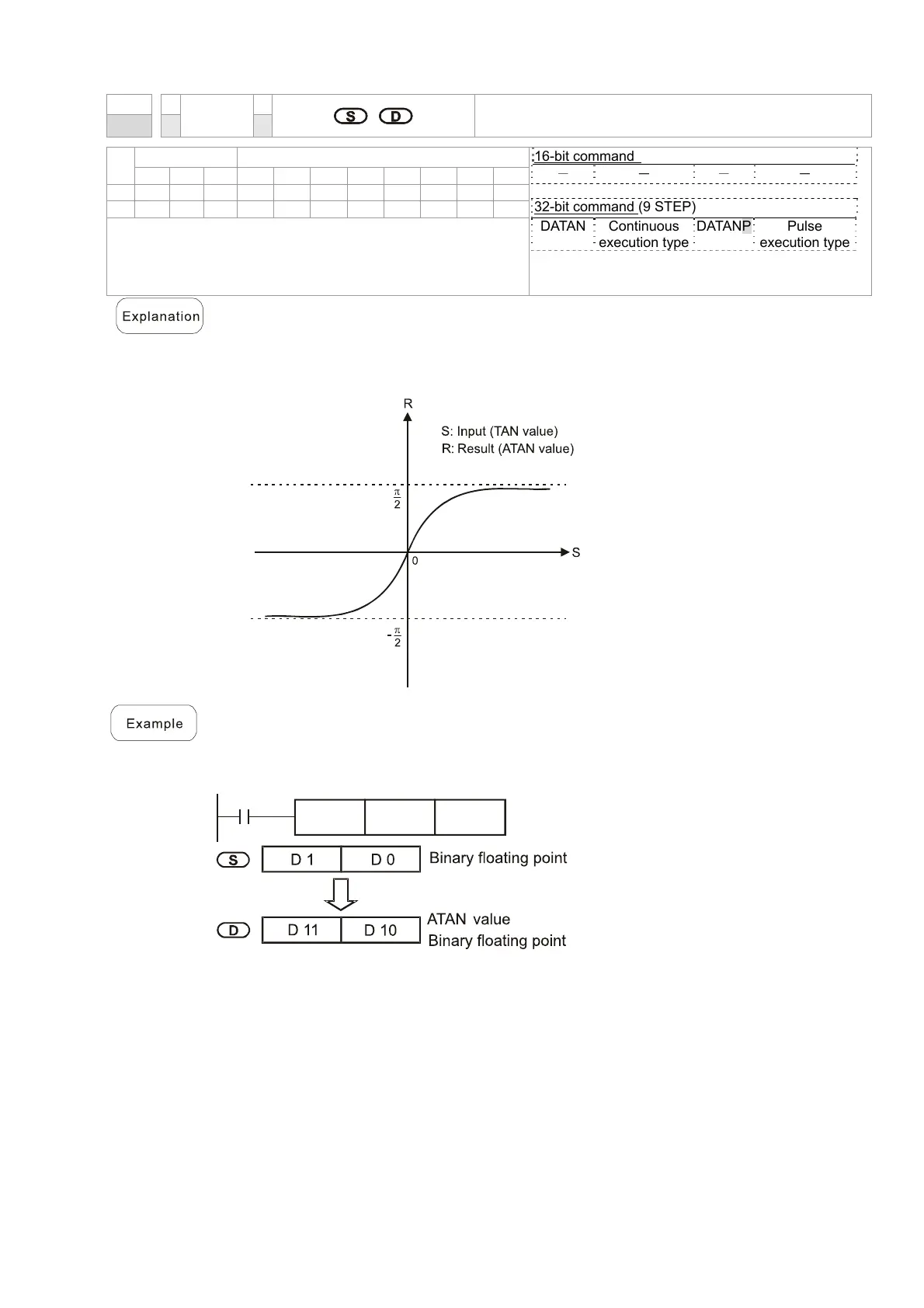

The figure below shows the relationship between input data and result:
When X0=On, the TAN value obtained from the designated binary floating point
number (D1, D0) will be stored in (D11, D10), with the content consisting of a
binary floating point number.
X0
DATAN
D0 D10
