Chapter 16 PLC Function ApplicationsC2000-HS
16-103
API
TCMP
Comparison of calendar data
160
P
Bit device Word device
16-bit command (11 STEP)
TCMP Continuous
execution type
TCMPP Pulse
execution type
32-bit command
－ － － －
Flag signal: none
X Y M K H KnX KnY KnM T C D
S1 * * * * * * * *
S2 * * * * * * * *
S3 * * * * * * * *
S * * *
D * *
Notes on operand usage:
Please refer to the function specifications table for each device in
series for the scope of device usage
 S
1
: Sets the hours of the comparison time, setting range is "K0–K23." S
2
: Sets the
minutes of the comparison time, setting range is "K0–K59." S
3
: Sets the seconds of
the comparison time, setting range is "K0–K59." S: current calendar time. D:
Results of comparison.
 Compares the time in hours, minutes, and seconds set in S
1
–S
3
with the current
calendar time in hours, minutes, and seconds, with the results of comparison
expressed in D.
 S The hour content of the current calendar time is "K0–K23." S +1 comprises the
minutes of the current calendar time, and consists of "K0–K59." S +2 comprises the
seconds of the current calendar time, and consists of "K0–K59."
 The current calendar time designated by S is usually compared using the TCMP
command after using the TRD command to read the current calendar time. If the
content value of S exceeds the range, this is considered an operating error, the
command will not execute, and M1068=On.

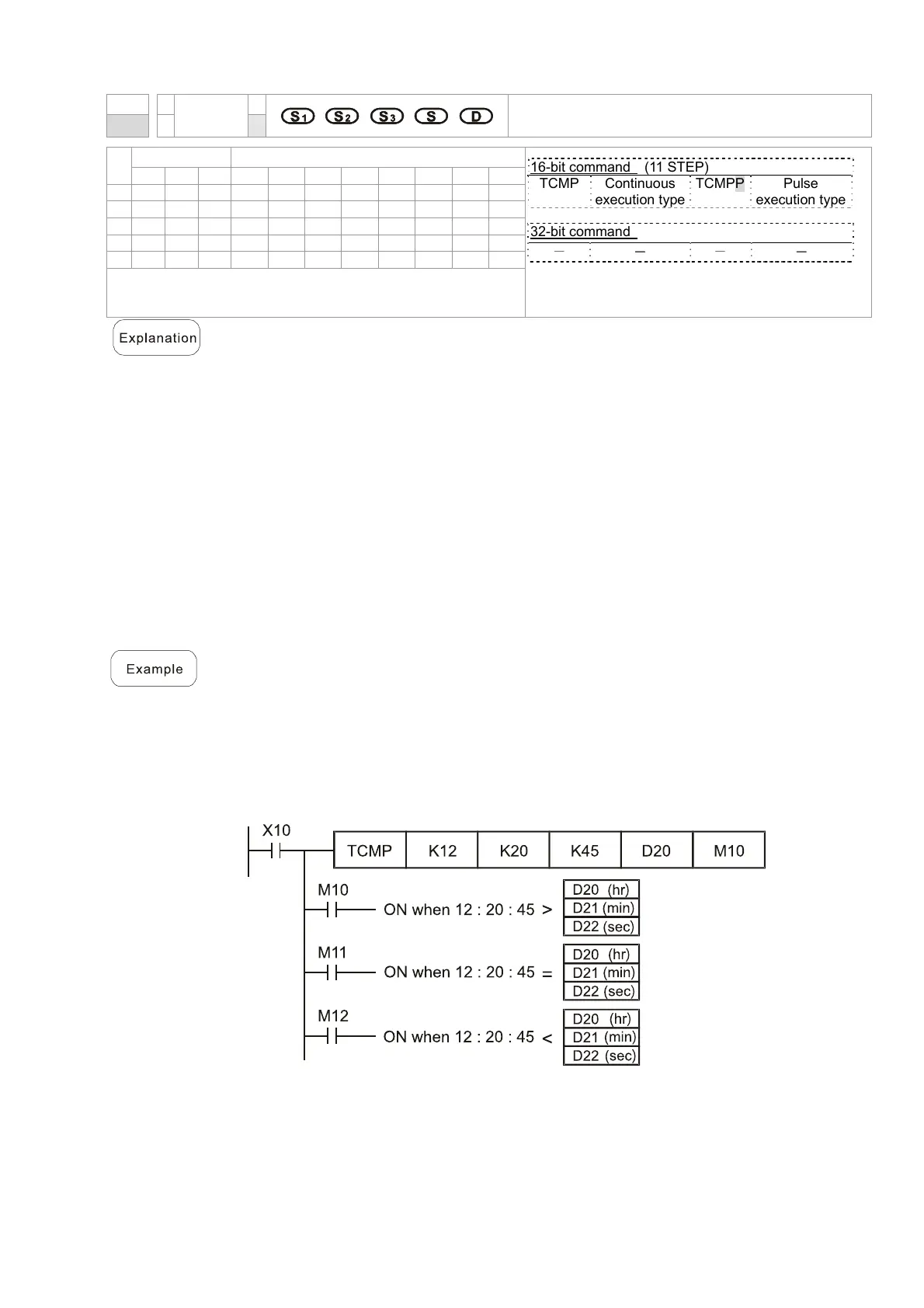

 When X10=On, the command will execute, and the current calendar time in
D20–D22 will be compared with the preset value of 12:20:45; the results will be
displayed in M10–M12. When X10 On→Off, the command will not be executed, but
the On/Off status prior to M10–M12 will be maintained.
 If results in the form of ≥, ≤, or ≠ are needed, they can be obtained by series and
parallel connection of M10–M12.
