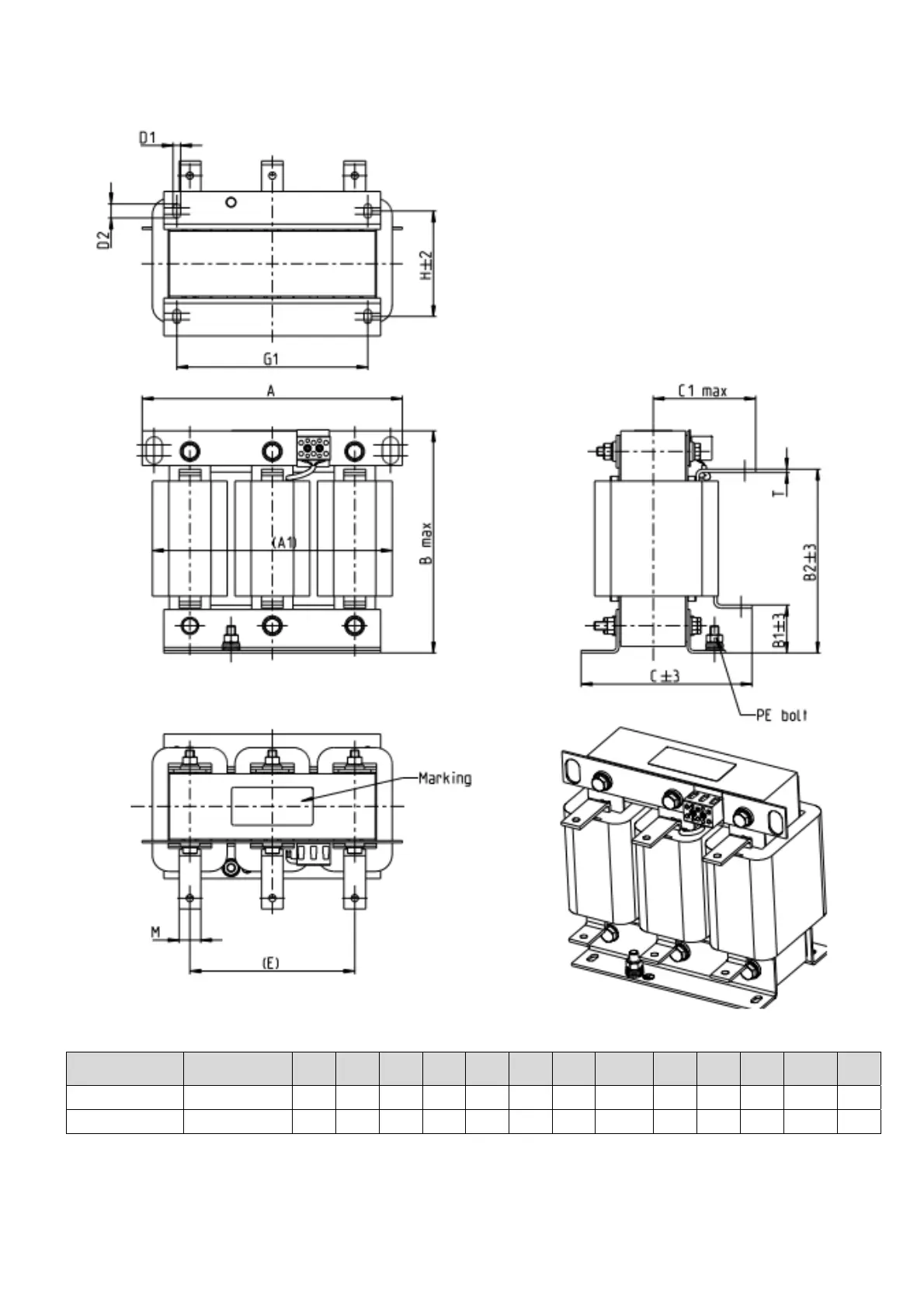

AC input reactor dimension and specification:
Unit: mm
Model
Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T PE
VFD300C43S-HS
DR060AP405 240 225 210 44 170 163 100 7*13 152 176 97 20*3 M8
VFD370C43S-HS
DR073AP334 250 230 225 44 186 174 105 11*18 160 190 124 20*3 M8
Table 7-6
