Delta VFD1100C43A-HS - Page 81

Chapter 7 Optional AccessoriesC2000-HS
7-9

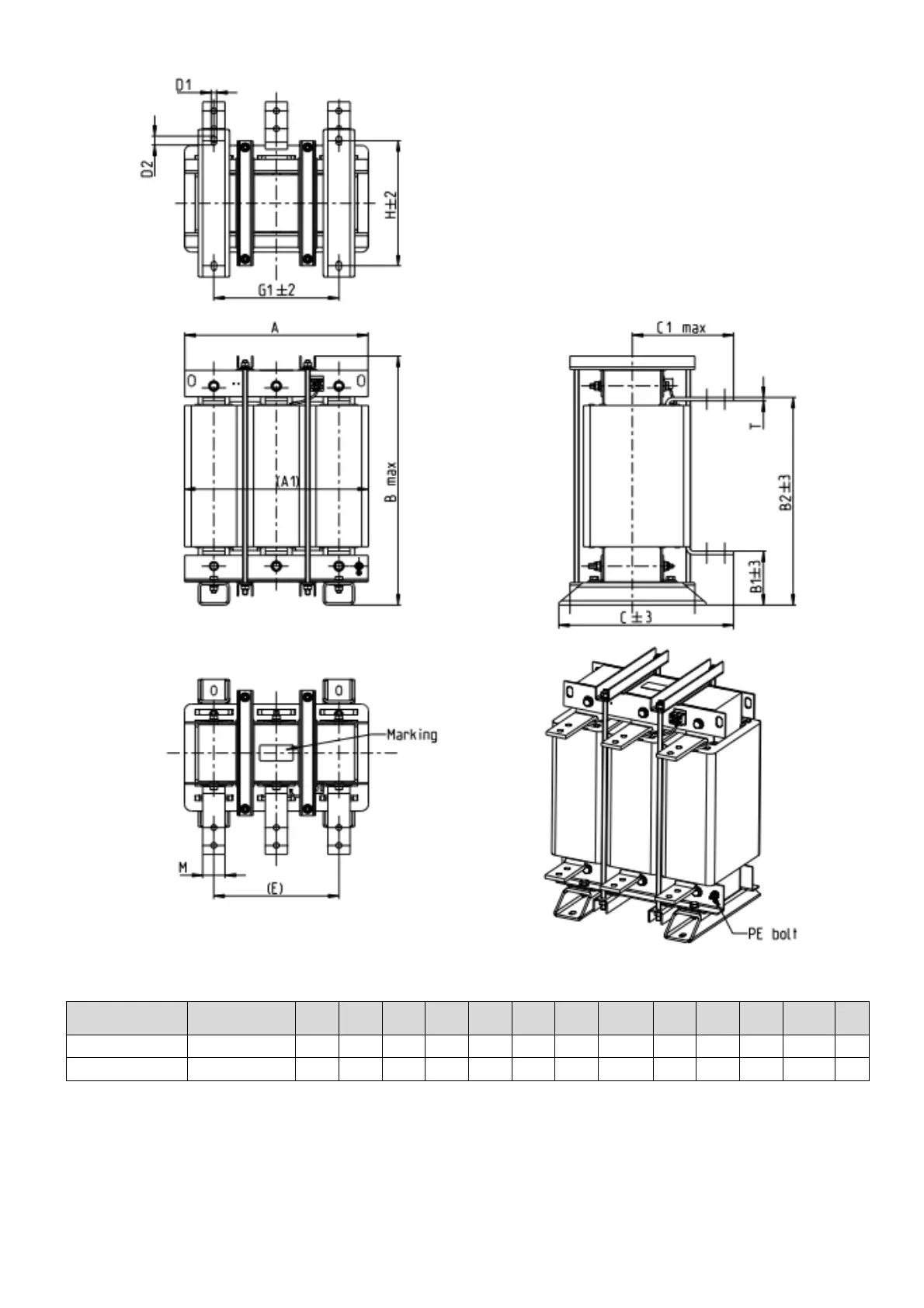

Unit: mm
Model
Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T PE
VFD2200C43A-HS DR460AP054 360 350 490 106 401 346 205 12*20 240 240 240 50*5 M8
VFD3550C43A-HS DR683AP036 360 350 490 110 404 396 232 12*20 240 240 290 50*8 M8
Table 7-8
