Delta VFD13AMS43ANSAA

Chapter 2 Dimensions MS300
2-6

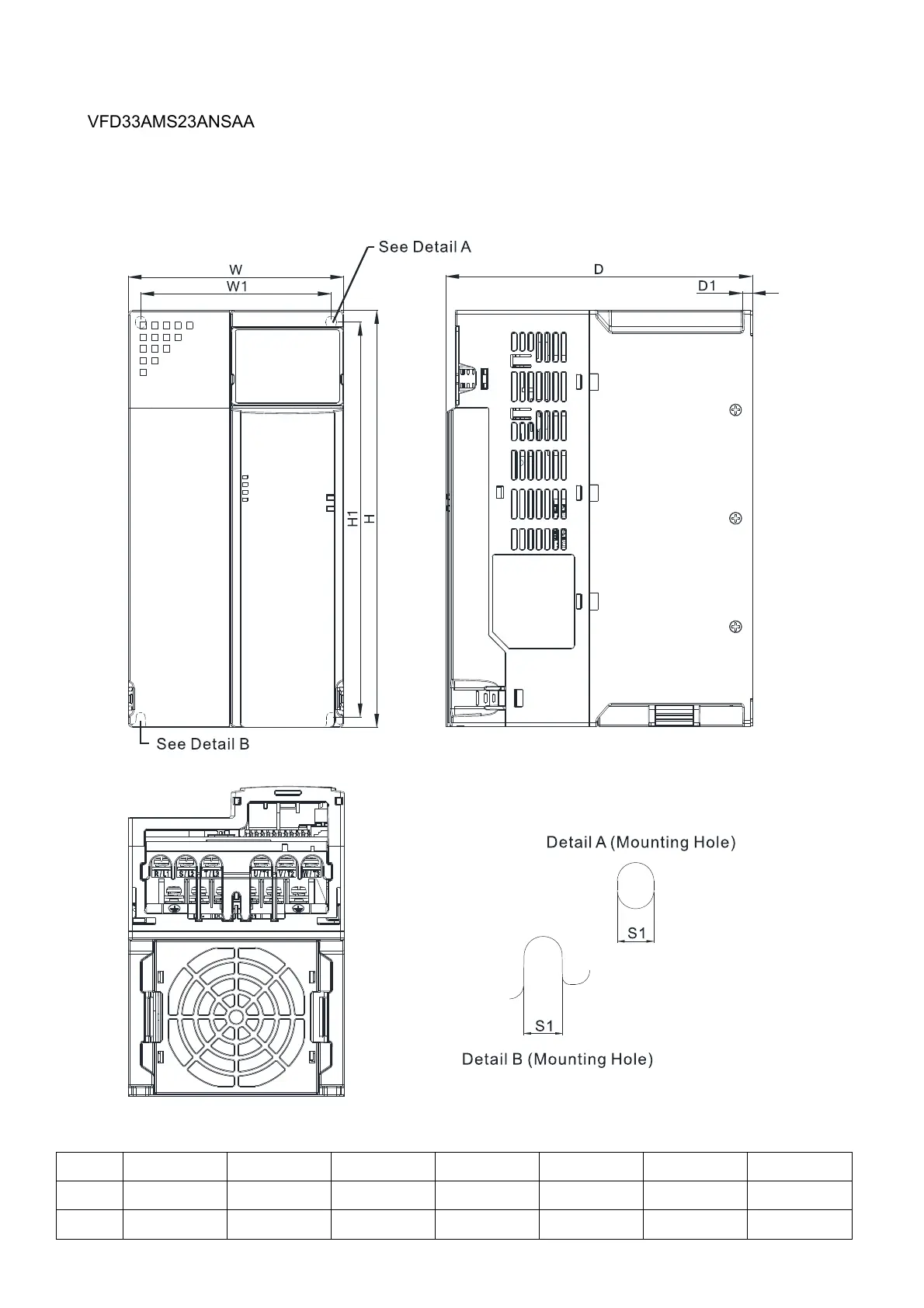

2-5 Frame E
E1: VFD33AMS23ANSAA; VFD33AMS23ENSAA; VFD49AMS23ANSAA; VFD49AMS23ENSAA;
VFD25AMS43ANSAA; VFD25AMS43ENSAA; VFD32AMS43ANSAA; VFD32AMS43ENSAA
E2: VFD25AMS43AFSAA; VFD32AMS43AFSAA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
E1 130.0 [5.12] 250.0 [9.84] 185.0 [7.83] 115.0 [4.53] 236.8 [9.32] 6.0 [0.24] 5.5 [0.22]
E2 130.0 [5.12] 250.0 [9.84] 219.0 [8.62] 115.0 [4.53] 236.8 [9.32] 6.0 [0.24] 5.5 [0.22]
