Chapter 7 Optional AccessoriesCP2000
7-97

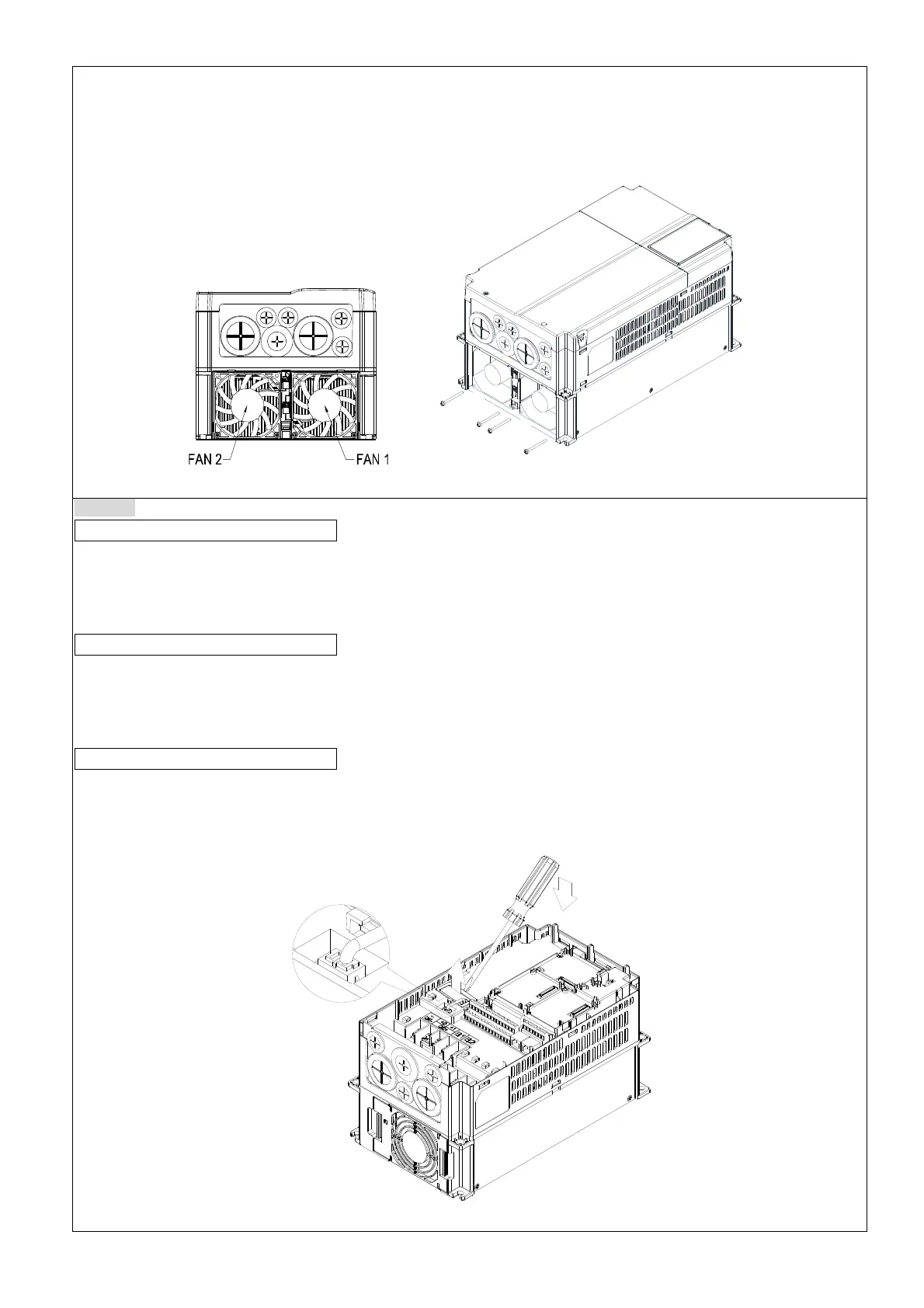

2. (As shown in Figure 2), remove the power connector, loosen the screw and remove the fan kit. When installing
the fan kit, have the label on the fan kit facing inside of the motor drive.
Screw’s torque: 10–12 kg-cm / [8.7–10.4 lb-in.] / [1.0–1.2 Nm]
Figure 2
Frame C
Model『MKC-CFKB1』Capacitor Fan
Applicable model
VFD185CP23A-21; VFD220CP23A-21; VFD300CP23A-21; VFD185CP63A-21; VFD220CP63A-21;
VFD300CP63A-21; VFD370CP63A-21
Model『MKC-CFKB2』Capacitor Fan
Applicable model
VFD220CP43A-21; VFD220CP4EA-21; VFD300CP43B-21; VFD300CP4EB-21; VFD370CP43B-21;
VFD370CP4EB-21
Model『MKC-CFKB3』Capacitor Fan
Applicable model
VFD185CP63A-21; VFD220CP63A-21; VFD300CP63A-21; VFD370CP63A-21
Disconnect fan power and pull out the fan by using flathead screwdriver. (As shown in the larger picture)
Figure 1
Disconnect fan power and pull out the
fan by flathead screwdriver
Pay attention to direction of the
latch during the installation.
To Next Page
