Chapter 7 Optional AccessoriesCP2000
7-98

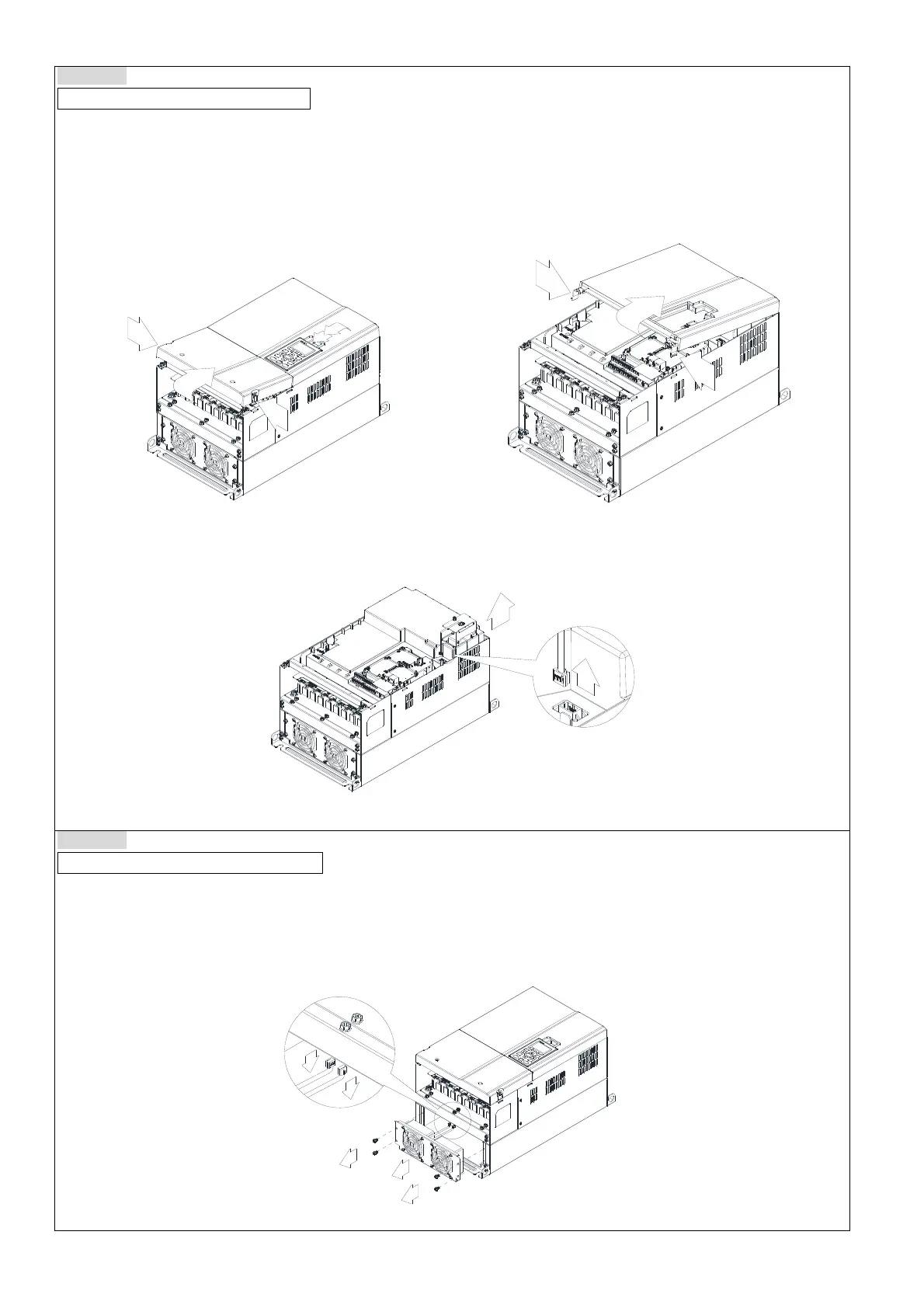

Frame D0
Model『MKC-DFKB』Capacitor Fan
Applicable model
VFD450CP43S-00; VFD450CP43S-21; VFD550CP43S-00; VFD550CP43S-21
1. Loosen screw 1 and screw 2, press the tabs on the
right and left to remove the cover, follow the
direction the arrows indicate. Press on top of digital
keypad to properly remove it. Screw 1, 2 Torque
:
12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
1
2
Figure 1
2. (Figure 2) Loosen screw 3, press the tabs on the
right and the left to remove the cover. Screw 3
Torque: 6–8 kg-cm / [5.2–6.9 lb-in.] / [0.6–0.8 Nm]
3
Figure 2
3. Loosen screw 4 (figure 3) and disconnect fan power and pull out the fan. (As shown in the enlarged picture 3)
Screw 4 Torque: 10–12 kg-cm / [8.7–10.4 lb-in.] / [1.0–1.2 Nm]
4
Figure 3
Frame D0
Model『MKC-D0FKM』Heat Sink Fan
Applicable model
VFD450CP43S-00; VFD450CP43S-21; VFD550CP43S-00; VFD550CP43S-21
1. Loosen the screw and remove the fan kit. Screw torque:
24–26 kg-cm / [20.8–22.6 lb-in. / [2.4–2.5 Nm]
2. (As shown Figure 1) Before removing the fan, remove the cover by using a slotted screwdriver.
1
2
3
4
Figure 1
To Next Page
