Delta VFD150CP43B-21 User Manual

Chapter 1 IntroductionCP2000
1-21
Frame H
H1: VFD3150CP43A-00; VFD3550CP43A-00; VFD4000CP43A-00; VFD5000CP43A-00;
VFD5600CP43A-00; VFD6300CP43A-00


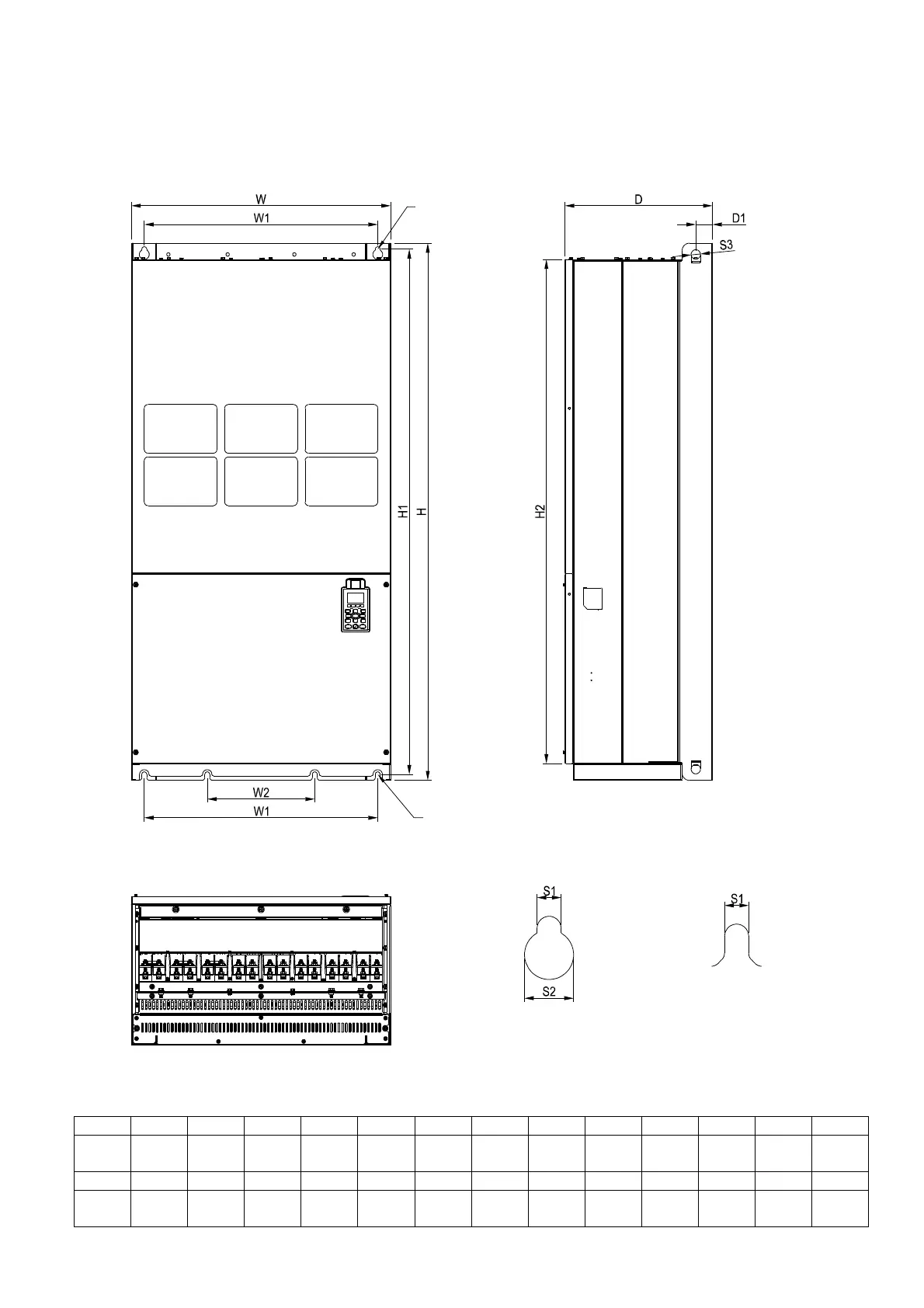

Figure 1-27
Unit: mm [inch]
Frame W H D W1 W2 W3 W4 W5 W6 H1 H2 H3 H4
H1
700.0
[27.56]
1435.0
[56.5]
398.0
[15.67]
630.0
[24.8]
290.0
[11.42]
- - - -
1403.0
[55.24]
1346.6
[53.02]
- -
Frame H5 D1 D2 D3 D4 D5 D6 S1 S2 S3 Φ1 Φ2 Φ3
H1 -
45.0
[1.77]
- - - - -
13.0
[0.51]
26.5
[1.04]
25.0
[0.98]
- - -
See Detail
A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
