Chapter 12 Description of Parameter SettingsCP2000
12.1-02-16

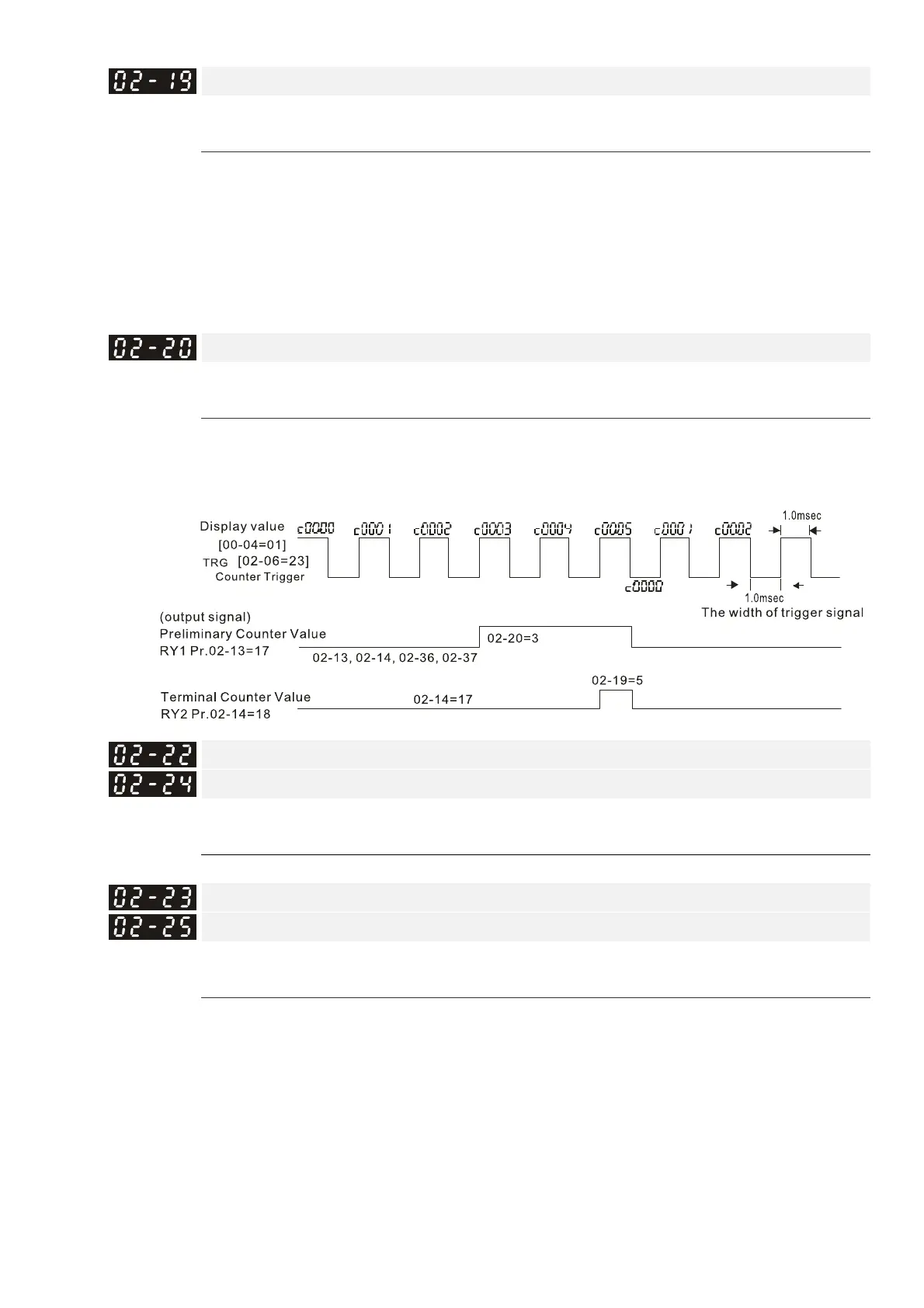

Terminal Counting Value Reached (return to 0)
Default: 0
Settings 0–65500
You can set the input point for the counter using the multi-function terminal MI6 as a trigger
terminal (set Pr.02-06 to 23). When counting is completed, the specified multi-function output
terminal is activated (Pr.02-13, Pr.02-14, Pr.02-36, Pr.02-37 are set to 18), and Pr.02-19 cannot
be set to 0 at this time.
Example: When the displayed value is c5555, the drive count is 5,555 times. If the displayed
value is c5555, the actual count value is 55,550–55,559.
Preliminary Counting Value Reached (does not return to 0)
Default: 0
Settings 0–65500
When the count value counts from 1 to reach this value, the corresponding multi-function output
terminal is activated (Pr. 02-13, Pr.02-14, Pr.02-36, Pr.02-37 are set to 17). You can use this
parameter as the end of counting to make the drive run from the low speed to stop.
Desired Frequency Reached 1
Desired Frequency Reached 2
Default: 60.00 / 50.00
Settings 0.00–599.00 Hz
The Width of the Desired Frequency Reached 1
The Width of the Desired Frequency Reached 2
Default: 2.00
Settings 0.00–599.00 Hz
Once output speed (frequency) reaches the desired speed (frequency), if the corresponding
multi-function output terminal is set to 3–4 (Pr.02-13, Pr.02-14, Pr.02-36, and Pr.02-37), this
multi-function output terminal is “closed”.
