Chapter 12 Description of Parameter SettingsCP2000
12.1-02-17
02-13,02-14,
02-36,02-37,
Fcmd=60Hz
02-22=10Hz
02-23=2Hz
02-24=40Hz
02-25=2Hz
38Hz
40Hz
42Hz
10Hz
12Hz
8Hz
T
=3
02-13,02-14,
02-36,02-37,
=4

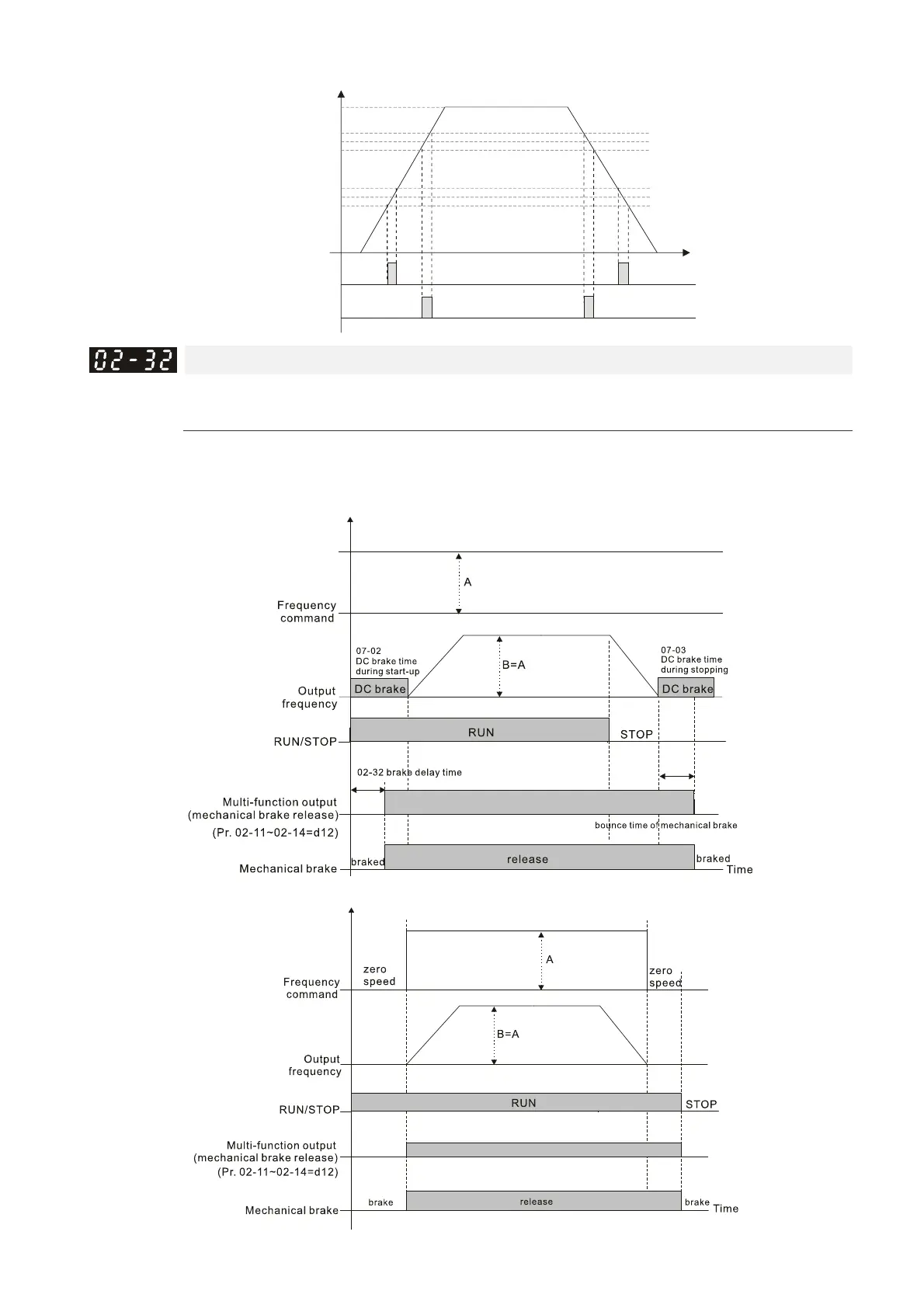

Brake Delay Time
Default: 0.000
Settings 0.000–65.000 sec.
When the AC motor drive runs after the setting delay time of Pr.02-32, the corresponding
multi-function output terminal (12: mechanical brake release) is “closed”. The function must be
used with DC brake.
This parameter is invalid if it is used without DC brake. Refer to the following operation timing.
To Next Page
