Chapter 12 Description of Parameter SettingsCP2000
12.1-03-18
Settings Functions Descriptions
21 RS-485 analog output
For RS-485 (InnerCOM / Modbus) control output
Terminal
Corresponding
address
AFM1 26A0H
AFM2 26A1H
AO10 26AAH
AO11 26ABH
22
Communication card analog
output
Communication analog output (CMC-EIP01, CMC-PN01,
CMC-DN01)
Terminal
Corresponding
address
AFM1 26A0H
AFM2 26A1H
AO10 26AAH
AO11 26ABH
23 Constant voltage output
Pr.03-32 and Pr.03-33 control voltage output level
0–100% of Pr.03-32 corresponds to 0–10 V of AFM1.
0–100% of Pr.03-33 corresponds to 0–10 V of AFM2.
Analog Output Gain 1 (AFM1)
Analog Output Gain 2 (AFM2)
Default: 100.0
Settings 0.0–500.0%
Adjusts the voltage level outputted to the analog meter from the analog signal (Pr.03-20) output
terminal AFM of the drive.

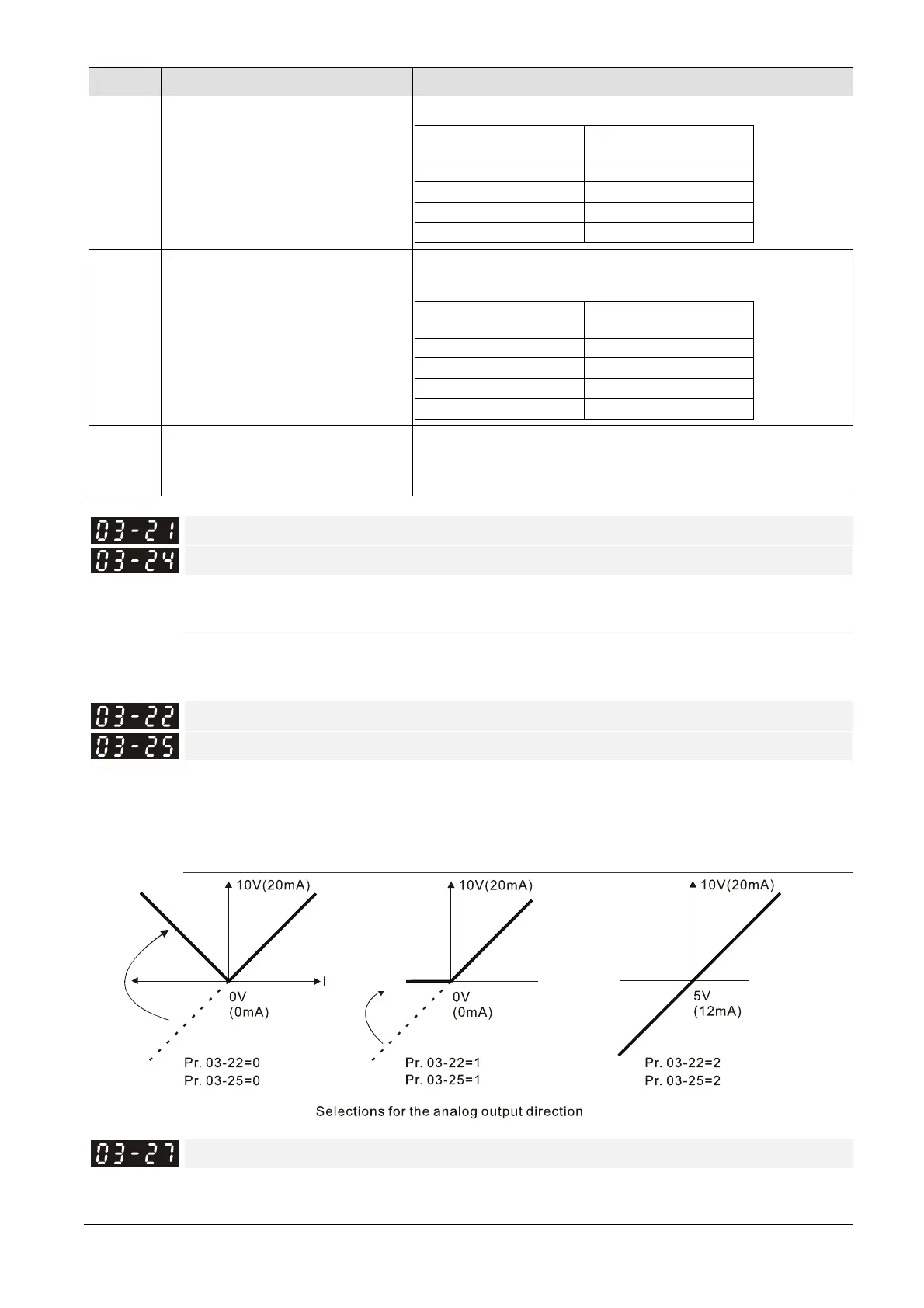

Analog Output 1 in REV Direction (AFM1)
Analog Output 2 in REV Direction (AFM2)
Default: 0
Settings 0: Absolute value of output voltage
1: Reverse output 0 V; forward output 0–10 V
2: Reverse output 5–0 V; forward output 5–10 V
AFM2 Output Bias
Default: 0.00
Settings -100.00–100.00%
Frequency Frequency
Frequency
