Chapter 16 PLC Function Applications│CP2000
16-124

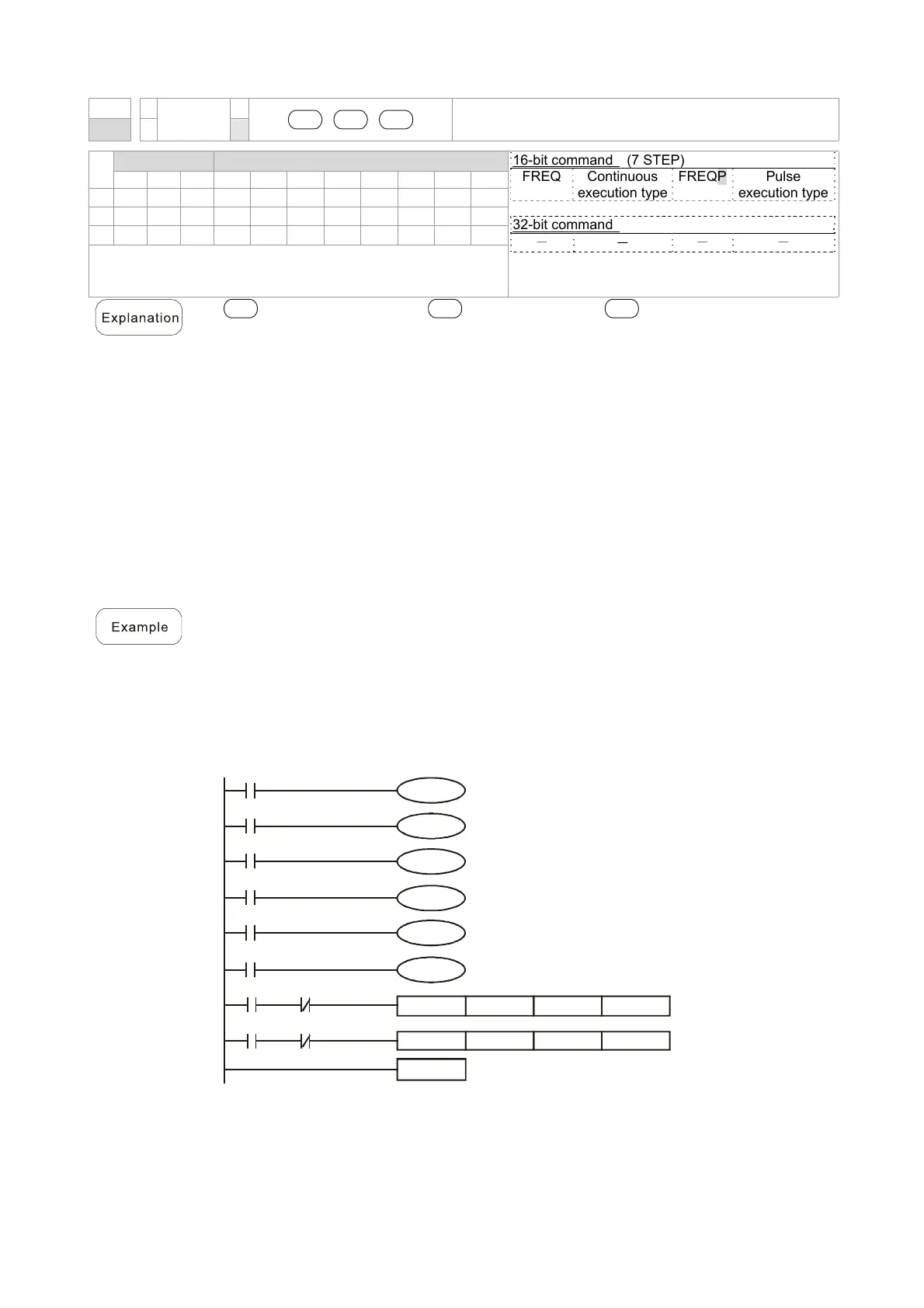

API
FREQ
S1 S2 S3
Driver speed control mode
142
P
Bit device Word device
16-bit command (7 STEP)
FREQ Continuous
execution type
FREQP Pulse
execution type
32-bit command
－ － － －
Flag signal: M1015
X Y M K H KnX KnY KnM T C D
S1
＊ ＊ ＊
S2
＊ ＊ ＊
S3
＊ ＊ ＊
Notes on operand usage: none

S1
: Frequency command.
S2
: Acceleration time.
S3
: Deceleration time
 S2, S3: In acceleration/deceleration time settings, the number of decimal places is
determined by the definitions of Pr.01-45.
Example
When Pr.01-45=0: units of 0.01 sec.
The setting of 50 for S2 (acceleration time) in the ladder diagram below implies 0.5 sec,
and the S3 (deceleration time) setting of 60 implies 0.6 sec
 The FREQ command can control driver frequency commands, and acceleration and
deceleration time; it also uses special register control actions, such as:
M1025: Control driver RUN(On)/STOP(Off) (RUN requires Servo On (M1040 On) to be
effective)
M1026: Control driver operating direction FWD(Off)/REV(On)
M1040: Control Servo On/Servo Off.
M1042: Trigger quick stop (ON)/does not trigger quick stop (Off).
M1044: Pause (On)/release pause (Off)
M1052: Lock frequency (On)/release lock frequency (Off)

M1025: Driver RUN (On) / STOP (Off), M1026: driver operating direction FWD (Off) / REV
(On). M1015: frequency reached.
 When M10=On, sets the driver frequency command K300 (3.00 Hz), with an
acceleration/deceleration time of 0.
When M11=On, sets the driver frequency command K3000 (30.00 Hz), with an
acceleration time of 50 (0.5 sec.) and deceleration time of 60 (0.6 sec.). (When
Pr.01-45=0)
 When M11=Off, the driver frequency command will now change to 0
END
M13
M1044
FREQP
K300 K0 K0
FREQ
K3000 K50 K60
M11
M10
M10
M11
M1000
M1040
M12
M1042
M1000
M1025
M11
M1026
M14
M1052
 Pr.09-33 are defined on the basis of whether the reference commands have been cleared
before PLC operation.
bit0: Prior to PLC scanning procedures, whether the target frequency has been cleared is
0. (This will be written to the FREQ command when the PLC is ON).
