Chapter 7 Optional AccessoriesMS300
114

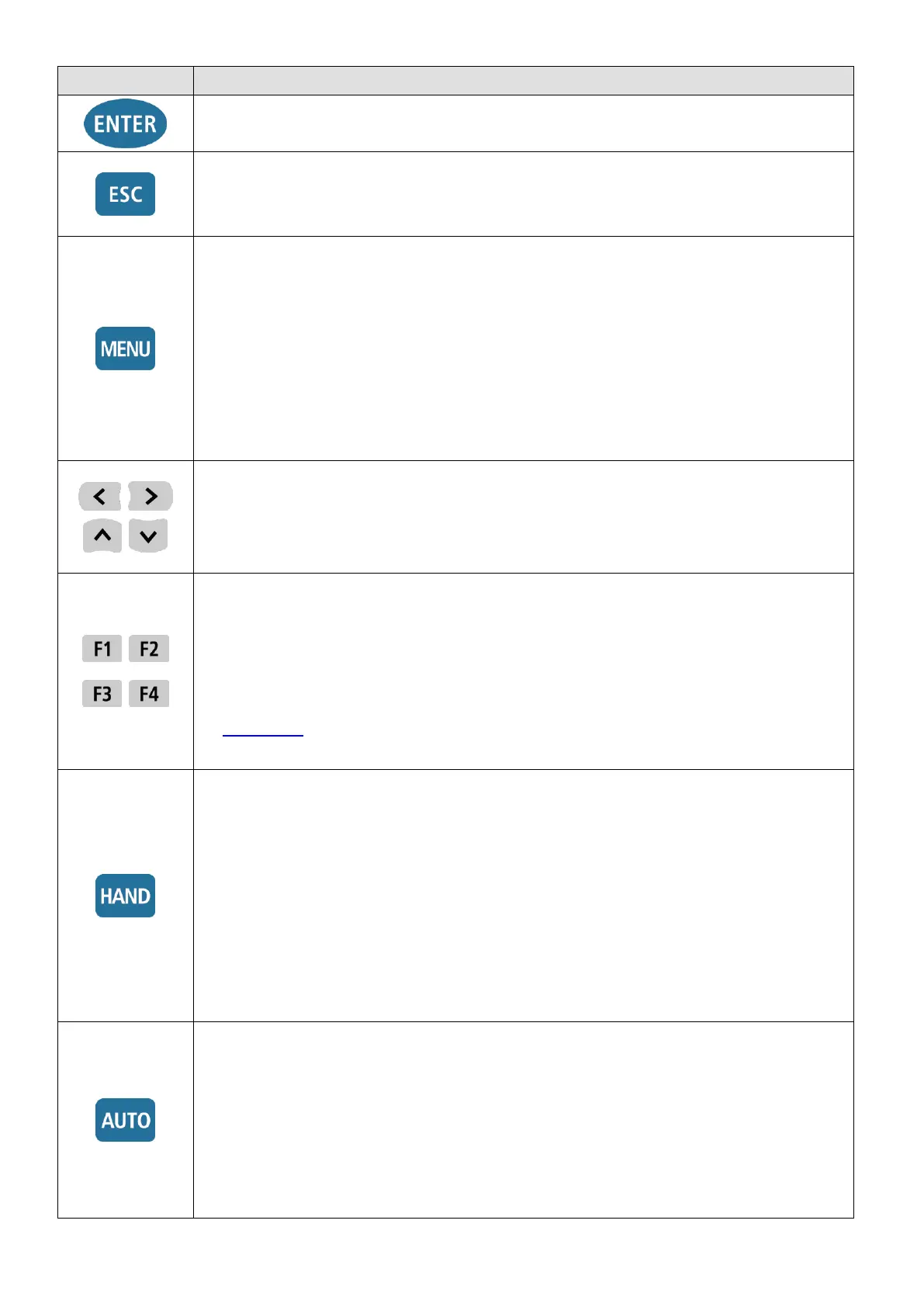

Key
Descriptions
ENTER Key
Goes to the next menu level. If at the last level, press ENTER to execute the command.
ESC Key
Leaves the current menu and returns to the previous menu; also functions as a return
key or cancel key in a sub-menu.
Returns to the main menu.
Menu commands:
1. Parameter Setup
2. Quick Start
3. Application Selection List
4. Changed List
5. Copy Parameter
6. Fault Record
7. Language Setup
8. Time Setup
9. Keypad Locked
10. PLC Function
11. Copy PLC
12. Display Setup
13. Start-up Menu
14. Main Page
15. PC Link
16. Start Wizard
Direction: Left / Right / Up / Down
1. In the numeric value setting mode, moves the cursor and changes the numeric
value.
2. In the menu/text selection mode, selects an item.
Function Key
1. The functions keys have defaults and can also be user-defined. The defaults for F1
and F4 work with the function list below. For example, F1 is the JOG function, and
F4 is a speed setting key for adding/deleting user-defined parameters.
2. Other functions must be defined using TPEditor.
Download TPEditor software at Delta website. Select TPEditor version 1.60 or
later. Refer to the installation instruction for TPEditor in Section 7-14-3.
HAND Key
1. Use this key to select HAND mode. In this mode, the drive’s parameter settings for
frequency command source is Pr.00-30, and that for operation command source is
Pr.00-31.
2. Press the HAND key at STOP, then the setting switches to the HAND frequency
source and HAND operation source.
3. Press HAND key at RUN, and it stops the AC motor drive first (displays AHSP
warning), and switches to HAND frequency source and HAND operation source.
4. Successful mode switching for the KPC-CC01 displays HAND mode on the screen.
AUTO Key
1. The default of the drive is AUTO mode.
2. Use this key to select AUTO mode. In this mode, the drive’s parameter settings for
frequency command source is Pr.00-20, and that for operation command is Pr.00-
21.
3. Press the AUTO key at STOP, then the setting switches to the AUTO frequency
source and AUTO operation source.
