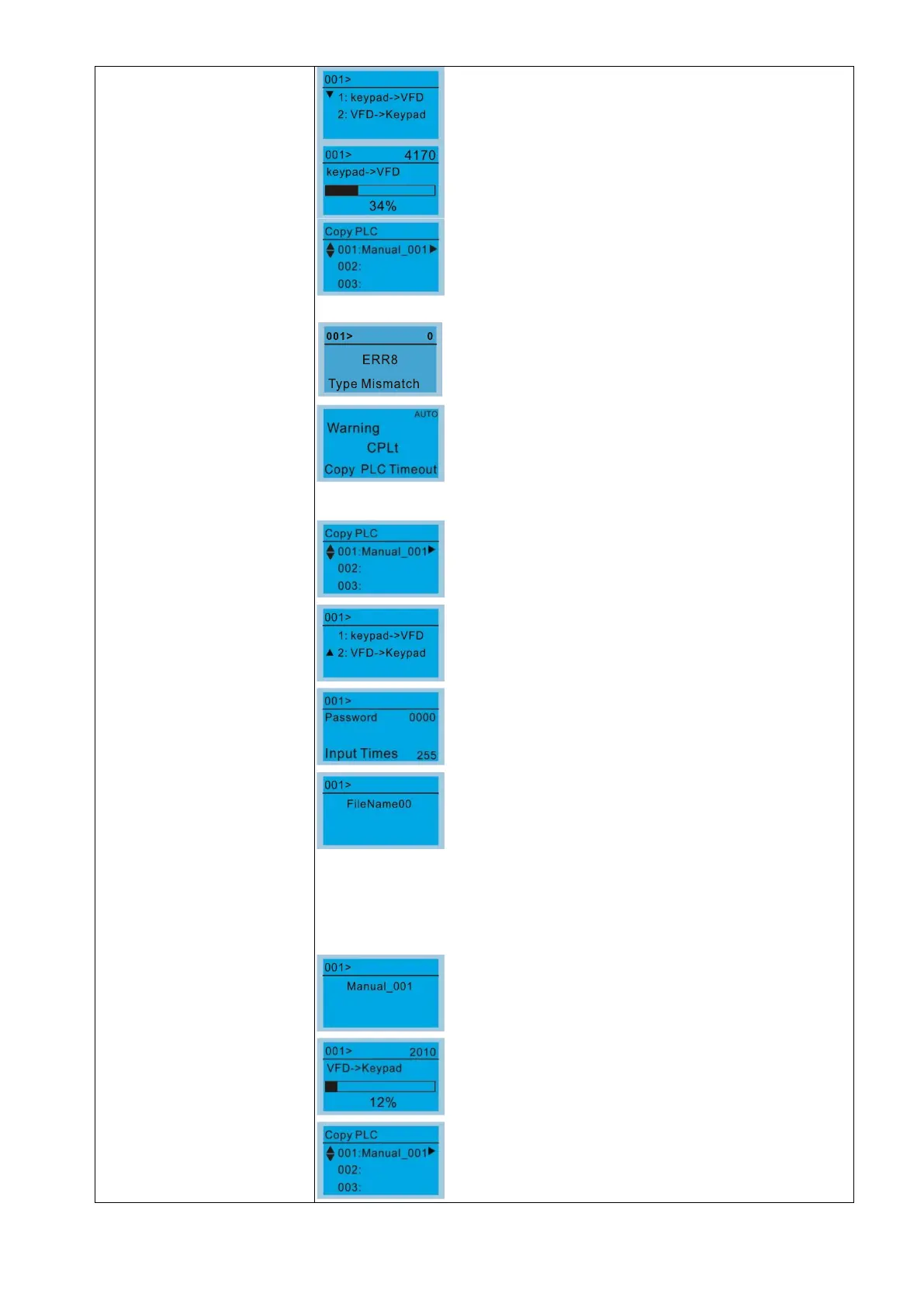

1. Select 1: keypadVFD.
2. Press ENTER to go to the “keypadVFD” screen.
Begin copying the PLC program until it is done.
After copying is done, the keypad automatically returns
to this screen.
If you select “Option 1: keypadVFD”, check if the PLC
program is built-in to the KPC-CC01 keypad. If the PLC
program is not available in the keypad when you select
“Option 1: keypadVFD”, an “ERR8 Warning: Type
Mismatch” displays on the screen.
If you unplug the keypad and plug it back while copying
the PLC program, the screen displays a CPLt warning.
Example: PLC program saved in the keypad.
1. Go to Copy PLC.
2. Select the PLC program to copy and press ENTER.
Press ENTER to go to the “VFDkeypad” screen.
If the WPLSoft editor is installed and uses password,
enter the password to save the file to the keypad.
Press the Up/ Down keys to select a symbol.
Press the Left/ Right keys to move the cursor to select
a file name.
String & Symbol Table:
！＂＃＄％＆＇（）＊＋，－．／０１２３４５６７８９：；＜＝＞？＠Ａ
ＢＣＤＥＦＧＨＩＪＫＬＭＮＯＰＱＲＳＴＵＶＷＸＹＺ［＼］＾＿｀ａｂ
ｃｄｆｇｈｉｊｋｌｍｎｏｐｑｒｓｔｕｖｗｘｙｚ｛｜｝～
After you confirm the file name, press ENTER.
Begin copying the PLC program until it is done.
After copying is done, the keypad automatically returns
to this screen.
