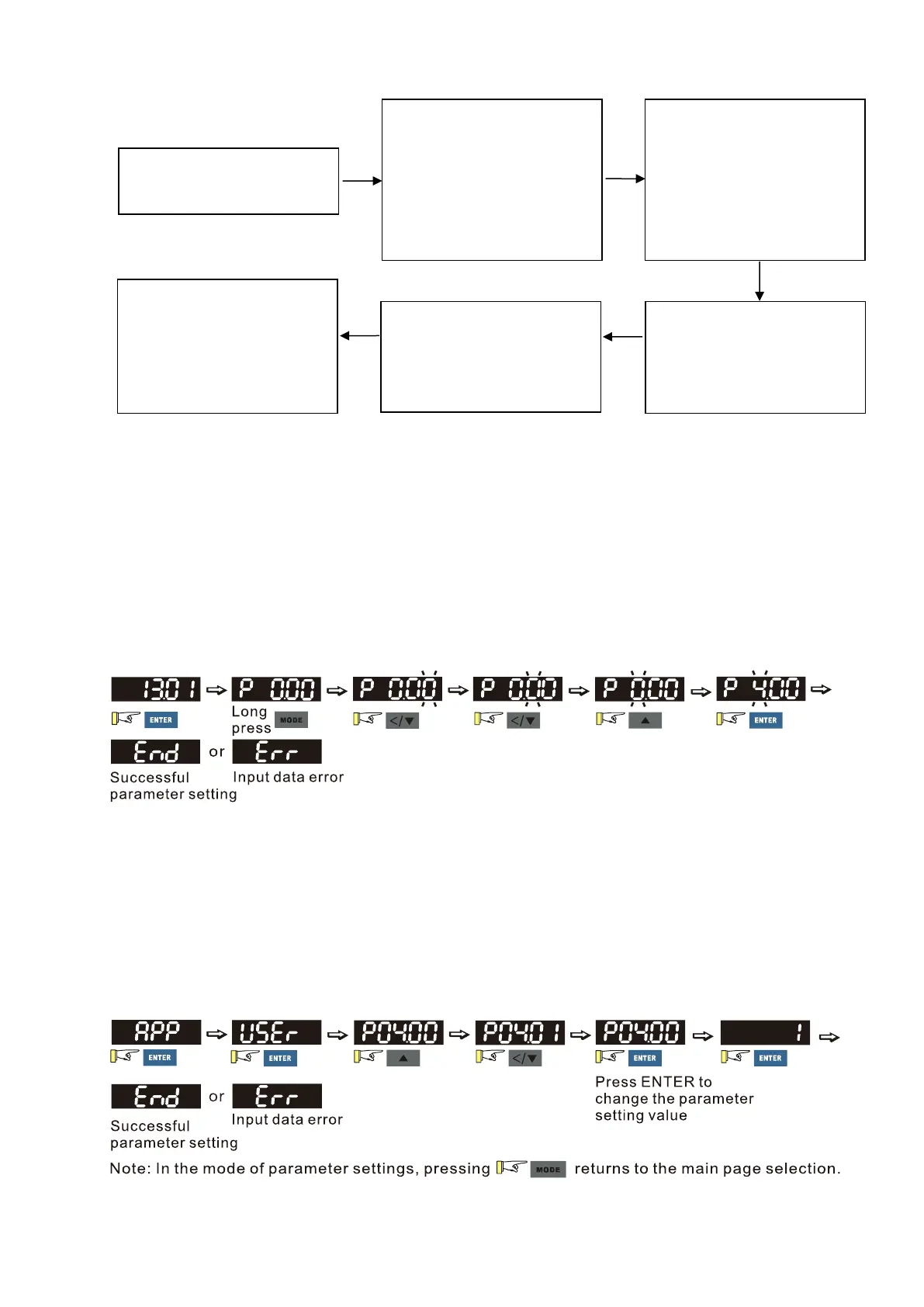

Follow the process below to set the user-defined application selection (Pr.13-00 = 1).
1. Use Pr.13-01–Pr.13-50 to set the user-defined parameters in sequence according to your
requirement. The default setting 0.00 means there is no user-defined parameter. Press ENTER
to set the corresponding parameters for Pr.13-01–Pr.13-50.
2. The setting method of user-defined parameters is the same as that for non-user-defined
parameters. You can use Up and Down keys or left shift key to speed up the settings.
Example:
Setting Pr.13-01 to the user-defined parameter 04-00. First, press ENTER at Pr.13-01 to enter the
setting page. Then, long press MODE to enable the left shift key to start the setting. The setting
process shows as follows.
NOTE: You must set Pr.13-01, 02……50 in sequence, or the display shows “Err”.
3. After finishing the setting, press MODE to return to the APP page, and then press ENTER. The
keypad displays “USEr”. After you press ENTER again, the corresponding parameter that you
set appears.
Example:
If you set Pr.13-01 as the user-defined parameter Pr.04-00, and Pr.13-02 as Pr.04-01, the
parameters you set appear when you press ENTER at the “USEr” page.
Set Pr.13-00=1 to enable
the user-defined application
selection.
Set Pr.13-01–Pr.13-50 user-
defined parameters in
sequence.
(If Pr.13-00≠1, the setting is
invalid.)
After finishing setting, press
MODE to display the APP
page, and then press
ENTER to display the USEr
page. Press ENTER again
to display the user-defined
parameters.
Use Up and Down keys to
select the user-defined
parameters, and press
ENTER to check and set the
setting.
To change a user-defined
parameter, return to Pr.13-
01–Pr.13-50 to modify the
setting value.
To remove a user-defined
parameter, return to Pr.13-
01–Pr.13-50 and set the
parameters as 0.00 from the
last defined parameter in
sequence.
