Chapter 10 Digital KeypadMS300

202

4. To remove a set user-defined parameter, remove from the last defined parameter (set to 0.00)

first, or the display shows “Err”. For example, if there are five user-defined parameters (Pr.13-

01, 13-02…13-05), to remove Pr.13-02, you must remove Pr.13-05 first, then 13-04, then 13-

03, and then 13-02.

D. Parameter setting

D-1. Unsigned parameter

(Parameter setting range ≥ 0; for example, Pr.01-00)

1. Without using the left shift key: Use Up and Left/Down key to select and adjust the parameters.

Then, press ENTER to start the parameter settings.

2. Using the left shift key: Long press MODE for two seconds until the last digit of the parameter

value starts to blink. Increase the value by pressing the Up key. The value goes back to 0 after

3. Press left/down key to shift the blinking cursor one digit to the left, and increase the value by

pressing the Up key.

4. After you finish setting the parameter, the left shift key function is not disabled automatically

until you disable it manually by pressing MODE for two seconds.

Example:

The default setting for Pr.01-00 is 60.00. Long pressing MODE for two seconds enables the left shift

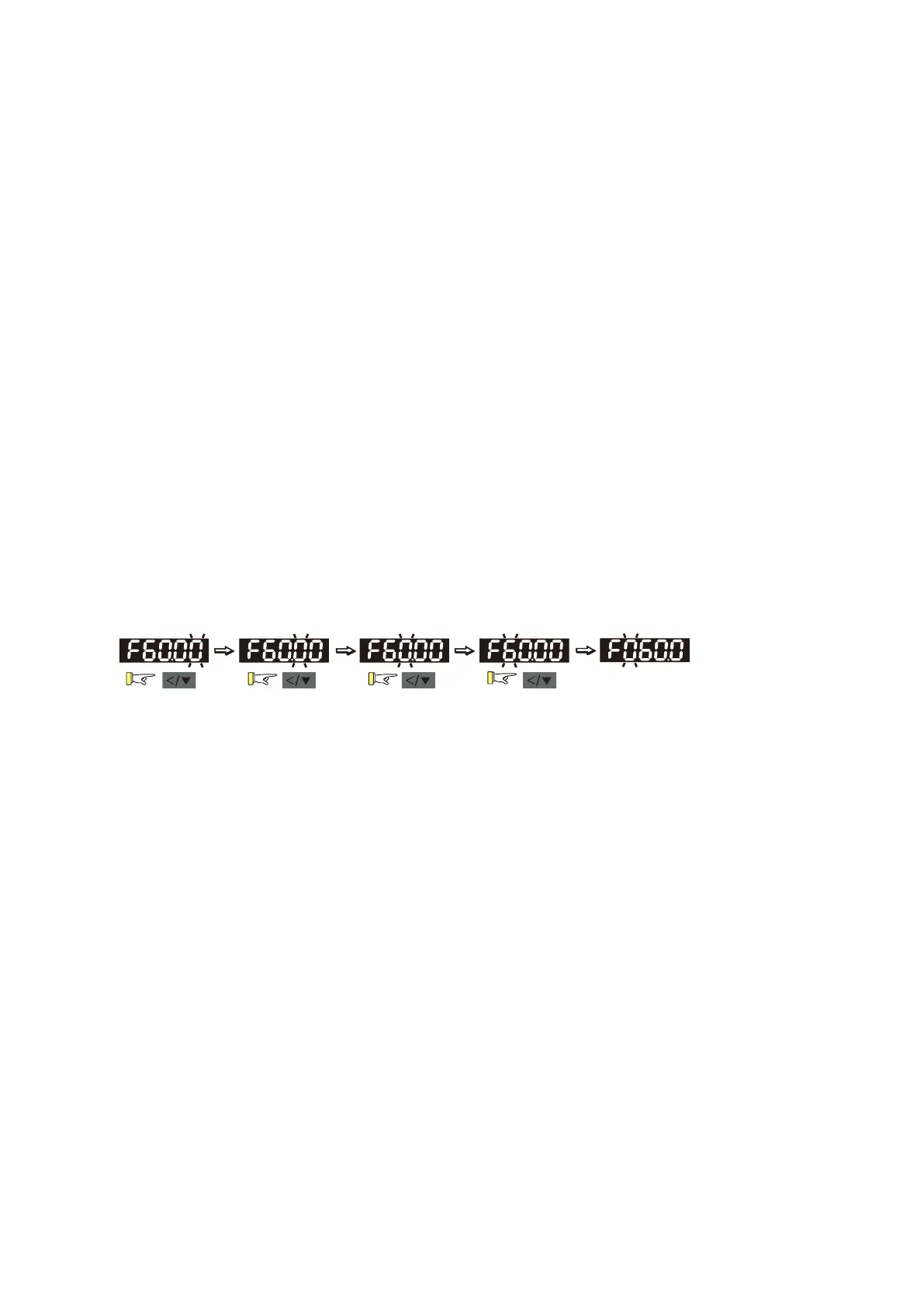

function. The process for pressing the Left/Down key shows as follows:

The upper limit for Pr.01-00 is 599.00. If you set a value greater than 599.00, “Err” appears after you

press ENTER, and then the keypad shows the upper limit (599.00) for a second to remind you of the

incorrect setting. The setting value remains as the original set value and the cursor returns to the

last digit.

D-2. Minus-signed parameter setting status 1

(Parameter setting range can be < 0; for example, Pr.03-03)

1. Without using the left shift key: Use Up and Left/Down key to select and adjust the parameters.

Then, press ENTER to start the parameter settings.

2. Using the left shift key: Long press MODE for two seconds until the last digit of the parameter

value starts to blink. Increase the value by pressing the Up key. The value goes back to 0 after

3. Press left/down key to shift the blinking cursor one digit to the left, and increase the value by

pressing the Up key. When you shift to the first digit and press the Up key, the digit “0” changes

to “-” (minus).

4. After you finish setting the parameter, the left shift key function is not disabled automatically

until you disable it manually by pressing MODE for two seconds.
