Chapter 7 Optional AccessoriesC2000 Plus
7-98

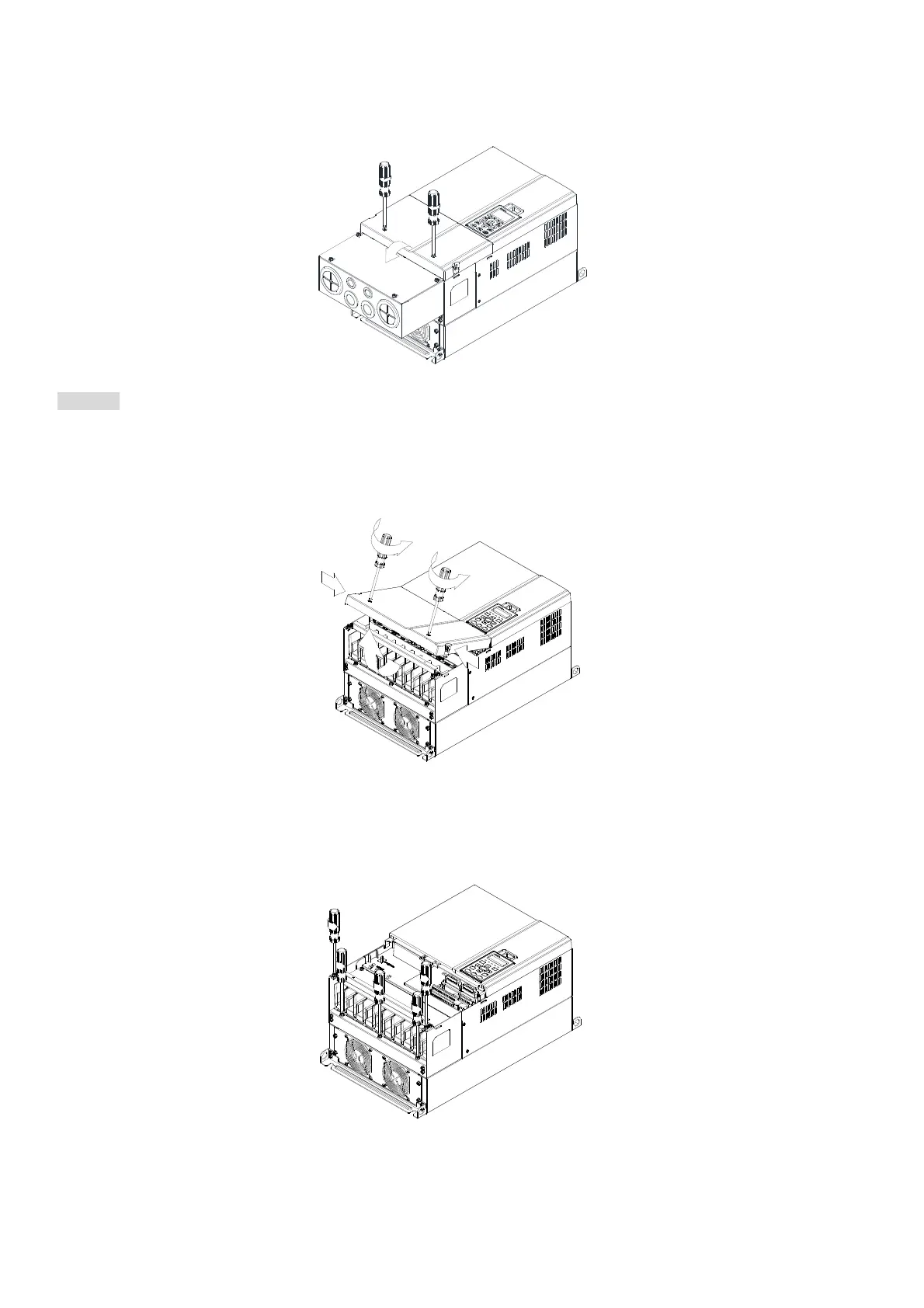

4. Tighten the 2 screws shown in the following figure.
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
Figure 7-96
Frame D
1. Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as shown in the
following figure.
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
Figure 7-97
2. Remove the 5 screws shown in the following figure.
Screw torque:
24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
Figure 7-98
