Delta VFD220C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-100

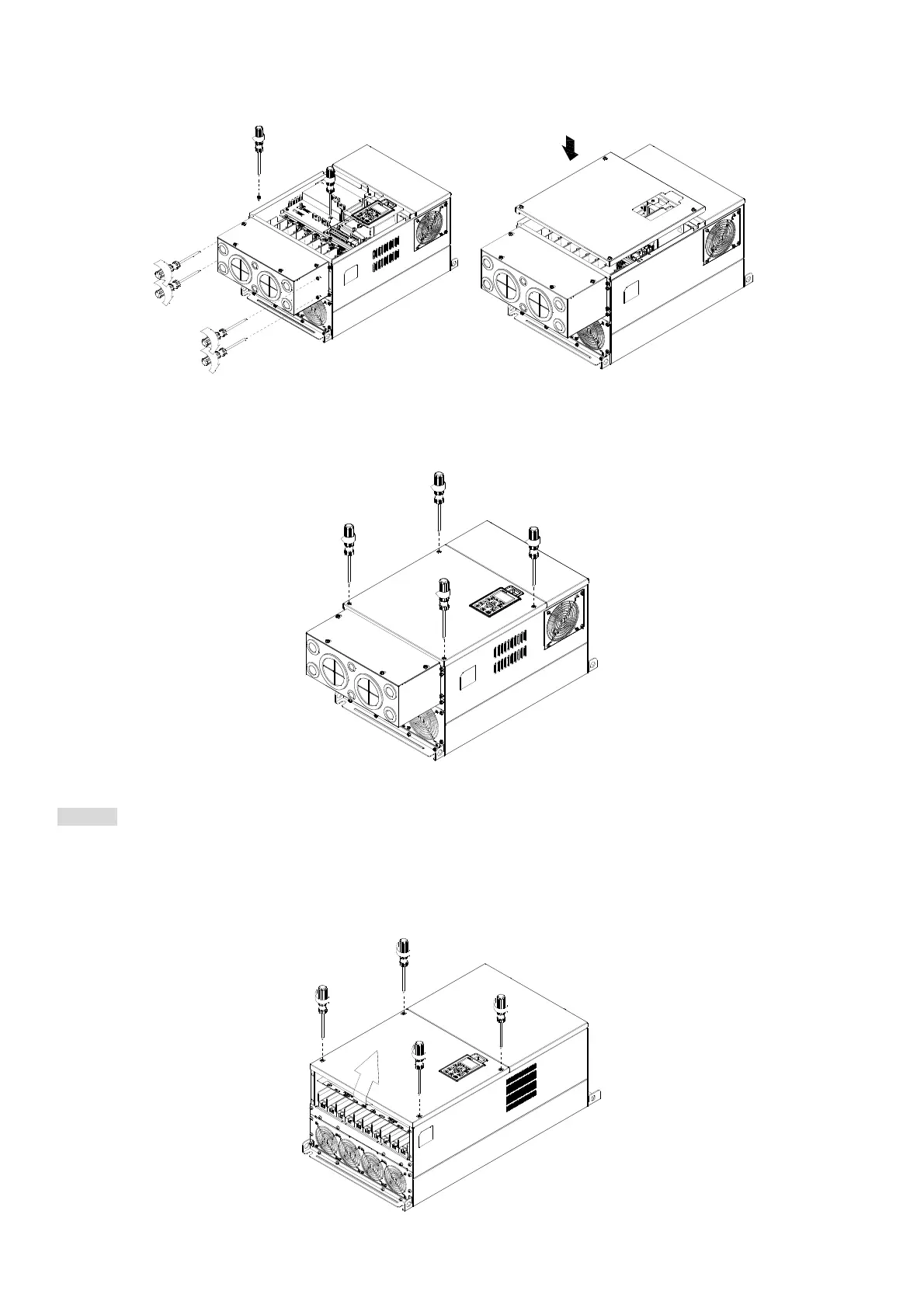

2. Tighten the 6 screws shown in the following figure and place the cover back to the original position.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
Figure 7-102
3. Tighten the 4 screws shown in the following figure.
Screw torque:
12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
Figure 7-103
Frame F
1. Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as shown in the
following figure.
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
2
3
4
1
Figure 7-104
