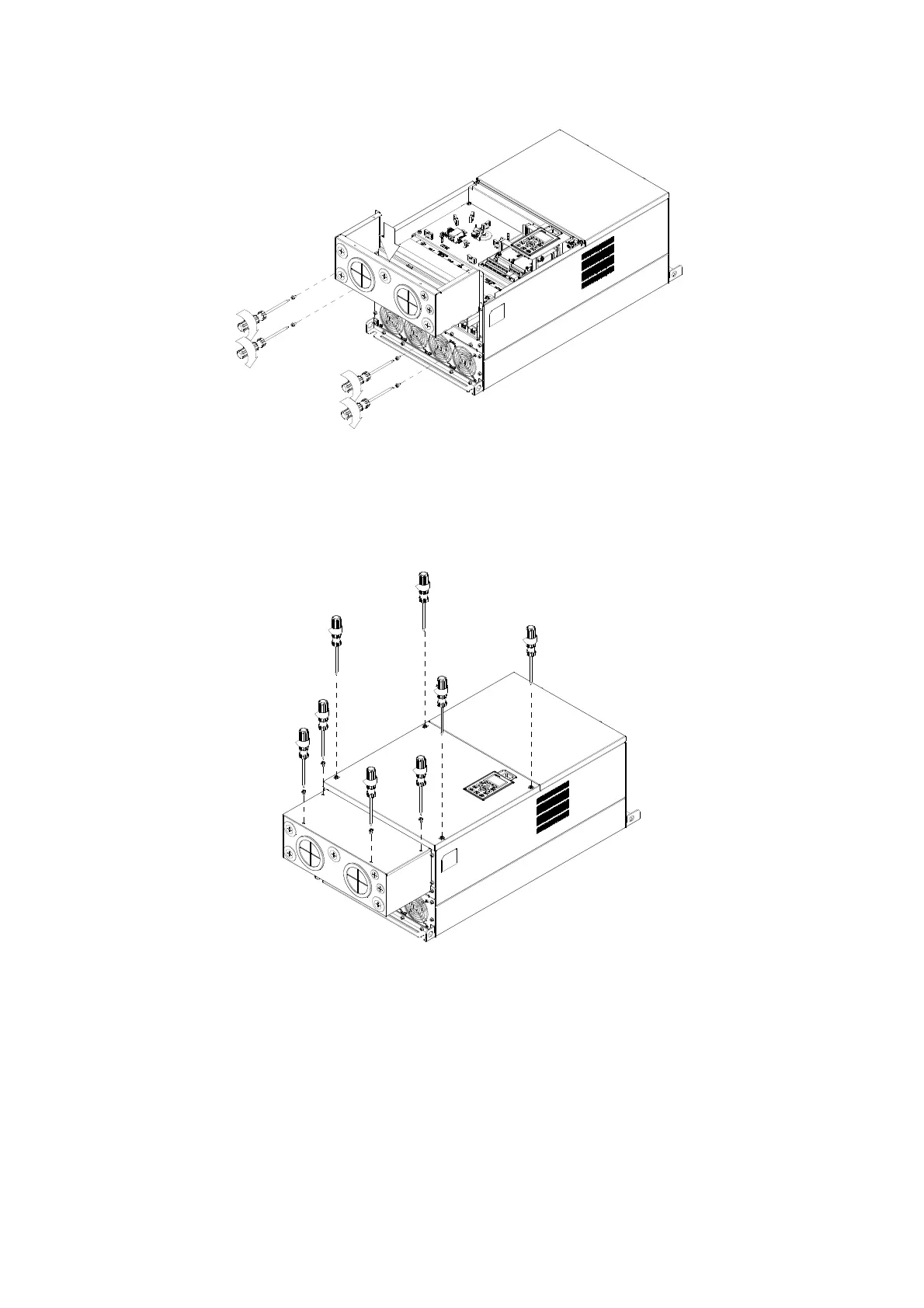

2. Install the conduit box by tightening the 4 screws, as shown in the following figure.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
5
6
7
8
Figure 7-105
3. Install the conduit box by tightening all the screws shown in the following figure
Screw 9–12 torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
Screw 13–16 torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
9
10
11
12
13
14
15
16
Figure 7-106
