Chapter 7 Optional AccessoriesC2000 Plus
7-102
Frame G

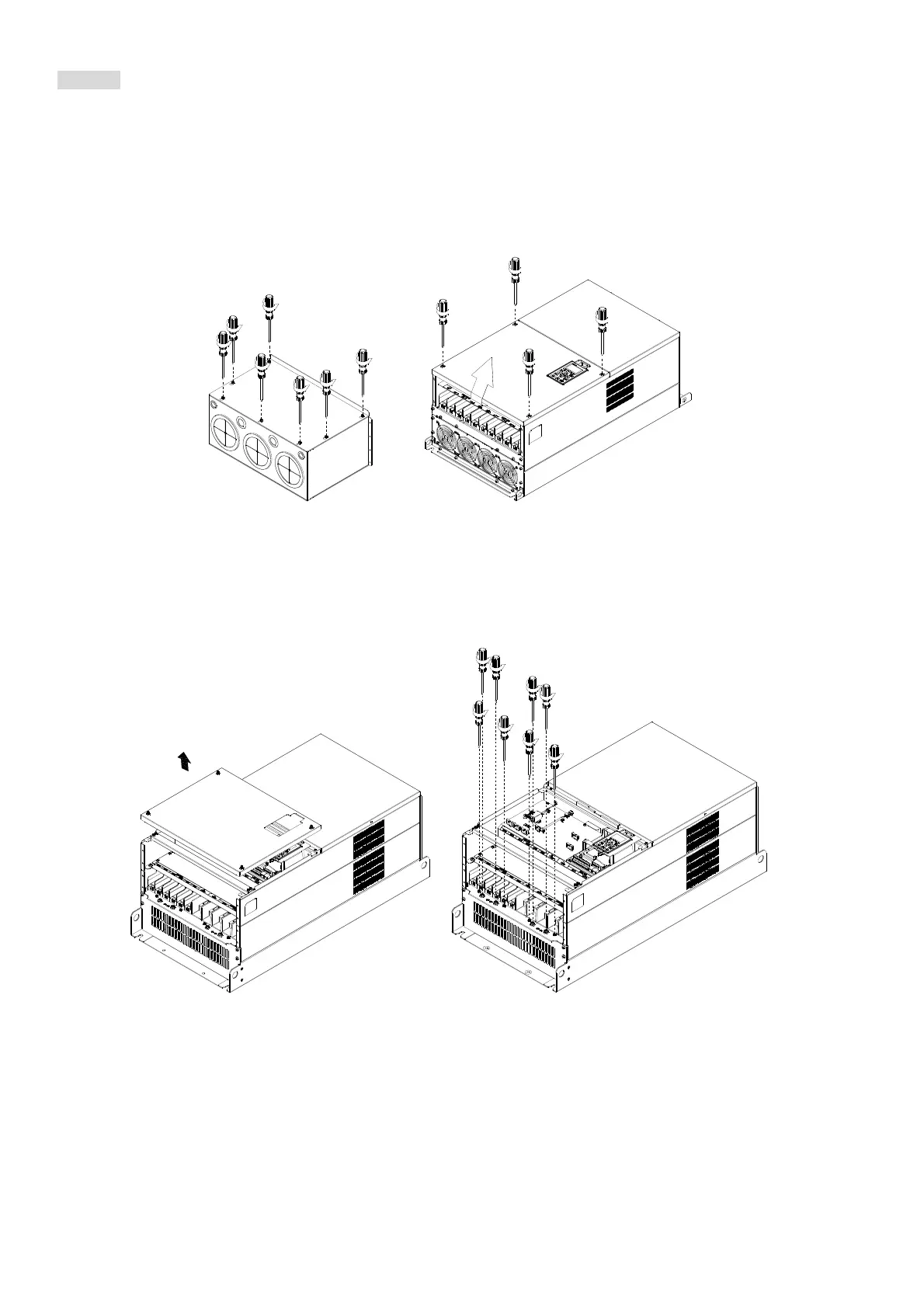

1. On the conduit box, loosen 7 of the cover screws and remove the cover
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
2. On the drive, loosen 4 of the cover screws and press the tabs on each side of the cover to remove the cover,
as shown in the following figure.
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
2
3
4
1
Figure 7-107
3. Remove the top cover and loosen the screws.
M5 Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
M8 Screw torque: 100–120 kg-cm / (86.7–104.1 Ib-in.) / (9.8–11.8 Nm)
Figure 7-108
