Chapter 7 Optional AccessoriesC2000 Plus
7-108
Assembly for Frame H2 (Straight Stand)
1. Loosen the 3 screws and remove the cover of conduit box.
Figure 7-118
2. Remove the 4 covers of conduit box, and tighten the loosen screws back to the original location.
Screw Torque: 100–110 kg-cm / (86.7–95.4 Ib-in) / (9.8–10.8 Nm)
Figure 7-119

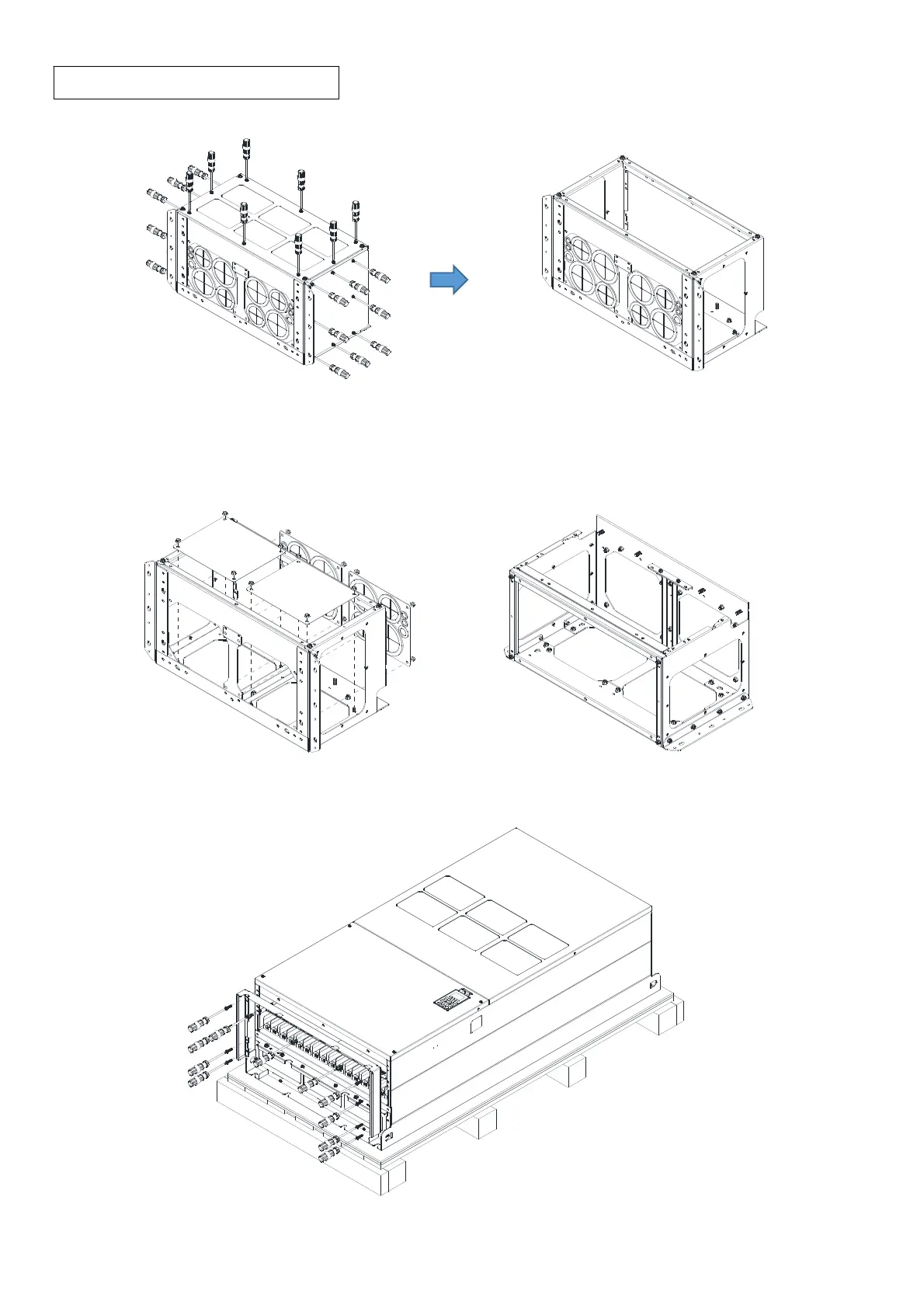

3. Remove the parts and screws as below figure shown.
Figure 7-120
To Next Page
