Delta VFD220C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-109

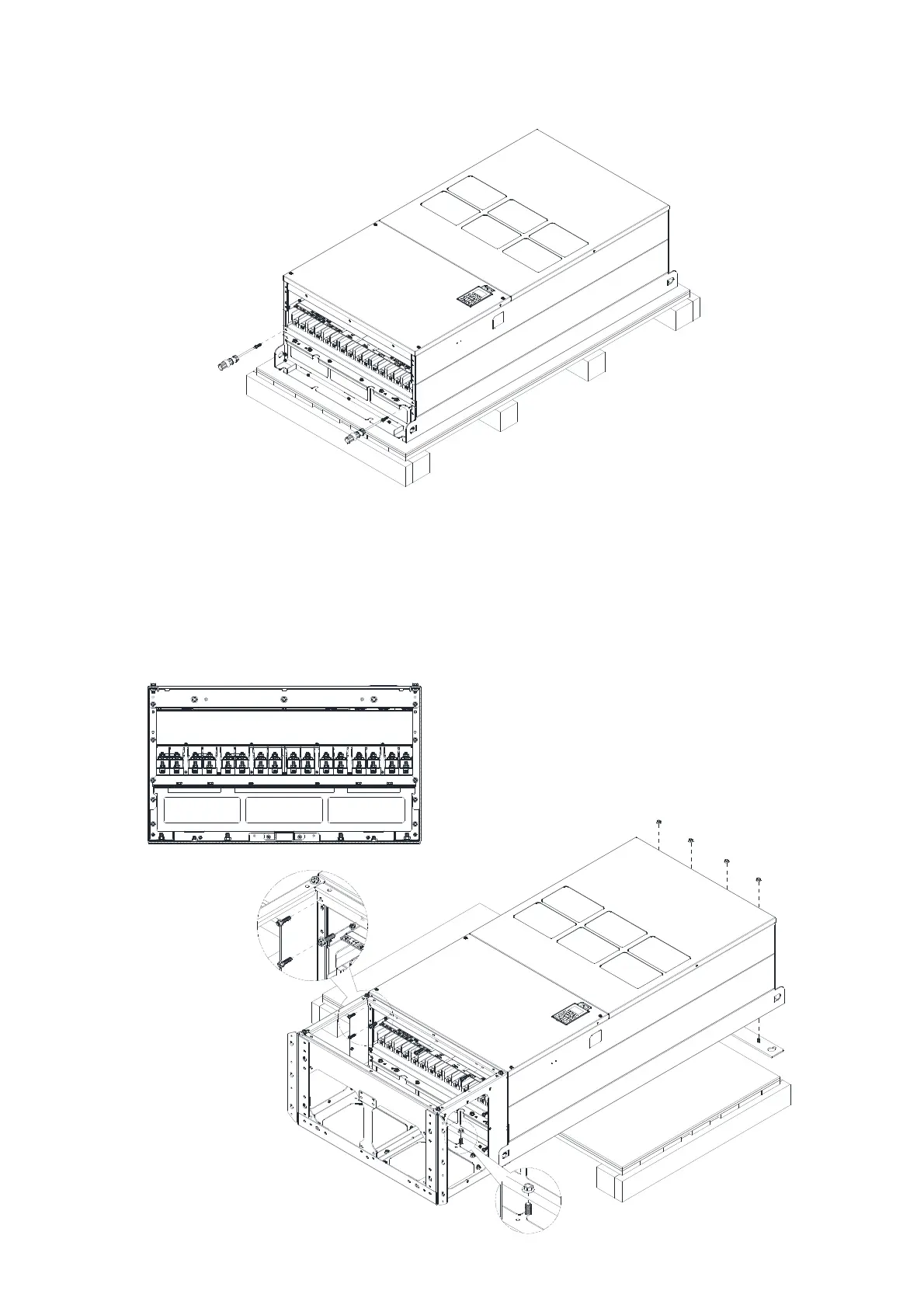

4. Tighten the M6 screws to locations shown in below figure.
Screw Torque: 35–45 kg-cm / (30.3–39 Ib-in.) / (3.4–4.4 Nm)
Figure 7-121
5. Install conduit box and accessories by tightening all the screws shown in the following figure.
Screw 1–6: M6 screw torque: 55–65 kg-cm / (47.7–56.4 Ib-in) / (5.4–6.4 Nm)
Screw 7–9: M8 screw torque: 100–110 kg-cm / (86.7–95.4 Ib-in) / (9.8–10.8 Nm)
Screw 10–13: M10 screw torque: 250–300 kg-cm / (216.9–260.3 Ib-in) / (24.5–29.4 Nm)
Screw 14–17: M8 screw torque: 100–110 kg-cm / (86.7–95.4 Ib-in) / (9.8–10.8 Nm)
Figure 7-122
1
3
1
8
6
1
0
2
9
1
1
3
5
1
2
7
4
12
7
3
2
17
16
15
14
