Chapter 1 IntroductionC2000 Plus
1-16

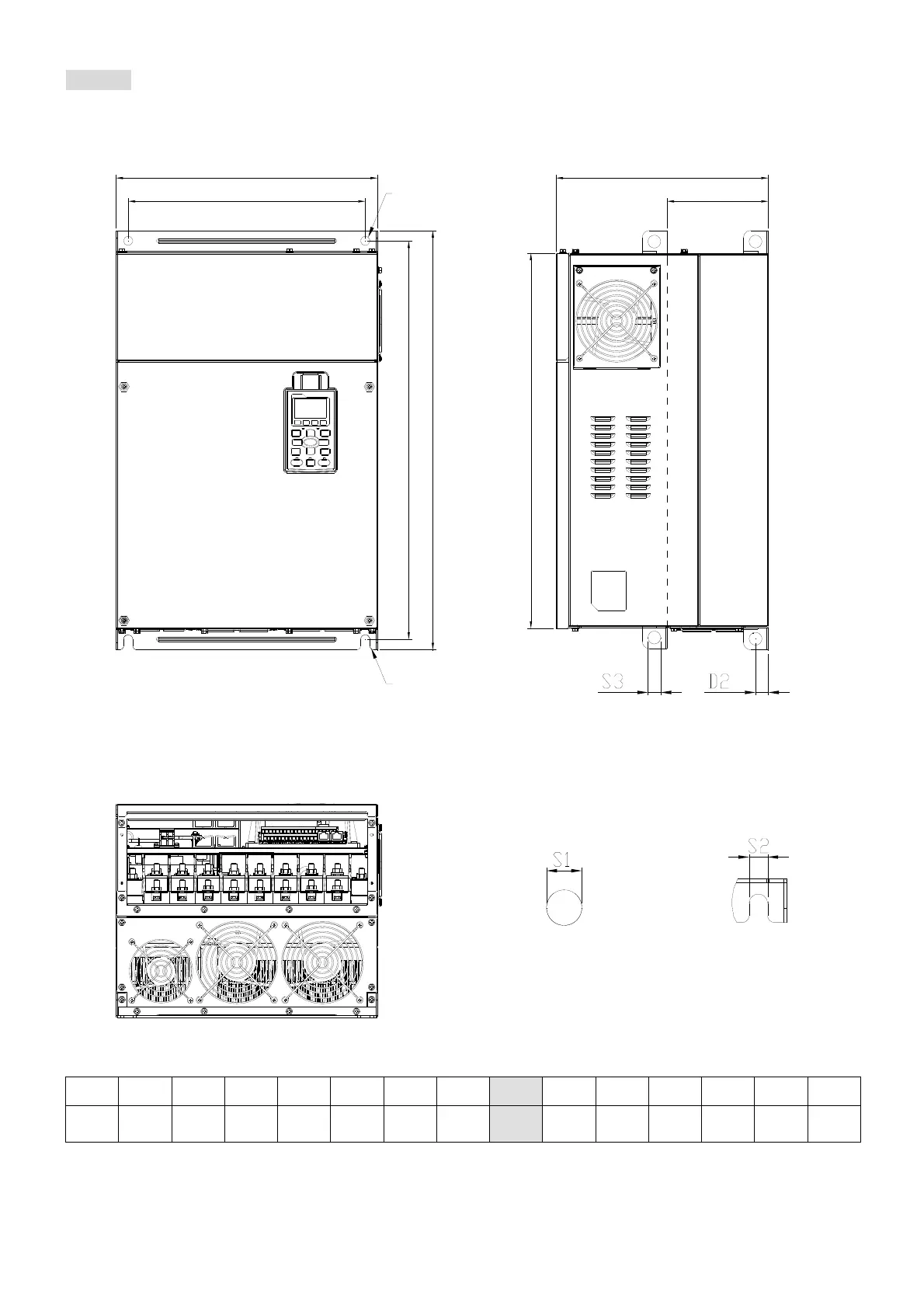

Frame E
E1: VFD450C23A-00; VFD550C23A-00; VFD750C23A-00; VFD750C63B-00; VFD900C43A-00;
VFD900C63B-00; VFD1100C43A-00; VFD1100C63B-00; VFD1320C63B-00
W1
W
H2
H1
H3
D1
D
Figure 1-22
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1, S2 S3 Ф1 Ф2 Ф3
E1
370.0
[14.57]
-
300.0
[11.81]
335.0
[13.19
589
[23.19]
560.0
[22.05]
528.0
[20.80]
143.0
[5.63]
18.0
[0.71]
13.0
[0.51]
18.0
[0.71]
- - -
D1*: Flange mounting
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
See Detail A
