Delta VFD220C43A-21 User Manual

Chapter 1 IntroductionC2000 Plus
1-17

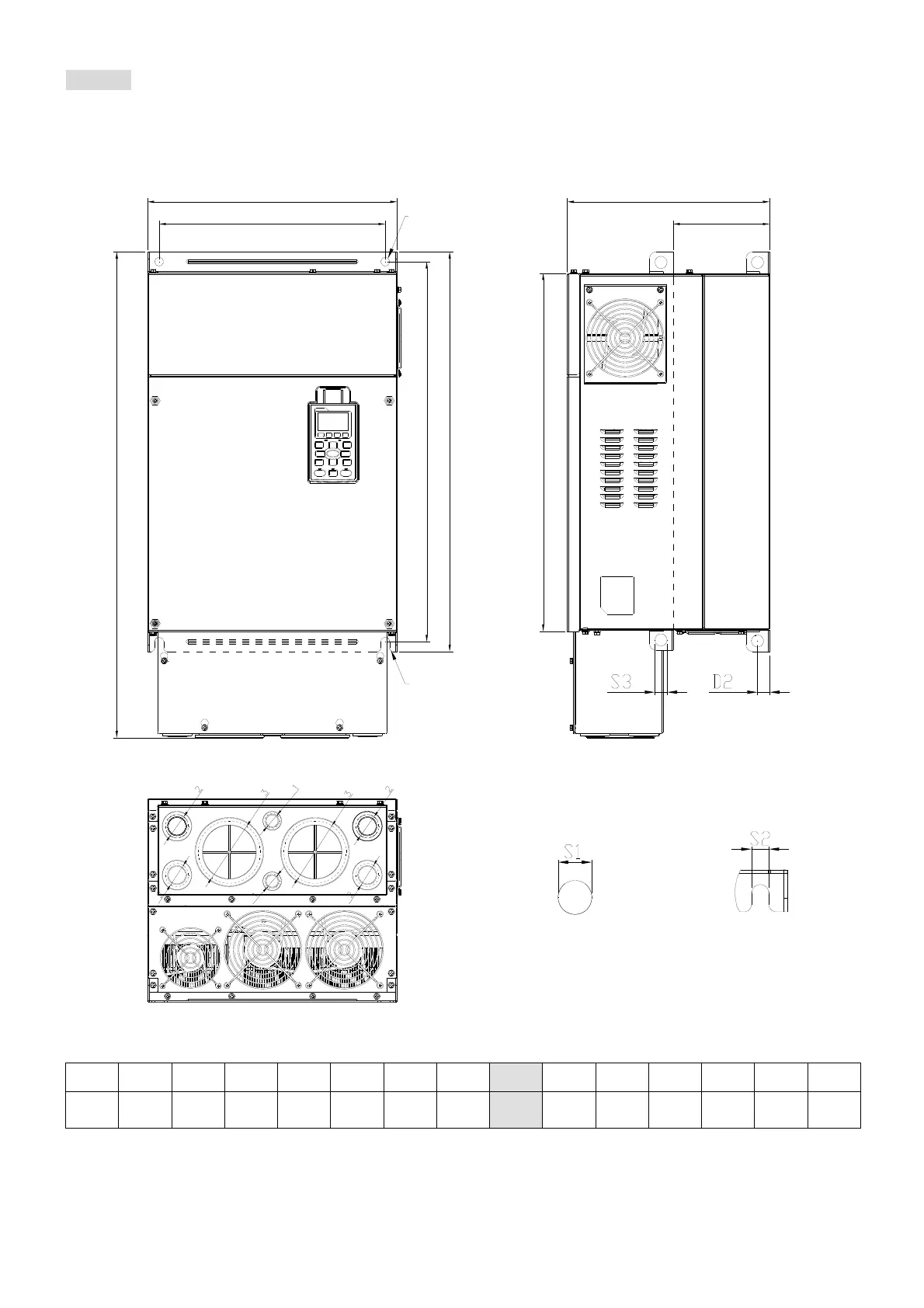

Frame E
E2: VFD450C23A-21; VFD550C23A-21; VFD750C23A-21; VFD750C63B-21; VFD900C43A-21;
VFD900C63B-21; VFD1100C43A-21; VFD1100C63B-21; VFD1320C63B-21
W1
W
H2
H1
H3
H
D1
D
?
?
?
?
?
?
?
?
Figure 1-23
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1, S2 S3 Ф1 Ф2 Ф3
E2
370.0
[14.57]
715.8
[28.18]
300.0
[11.81]
335.0
[13.19
589
[23.19]
560.0
[22.05]
528.0
[20.80]
143.0
[5.63]
18.0
[0.71]
13.0
[0.51]
18.0
[0.71]
22.0
[0.87]
34.0
[1.34]
92.0
[3.62]
D1*: Flange mounting
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
See Detail B
See Detail A
