Delta VFD220VL43A-J - Page 31

2-10

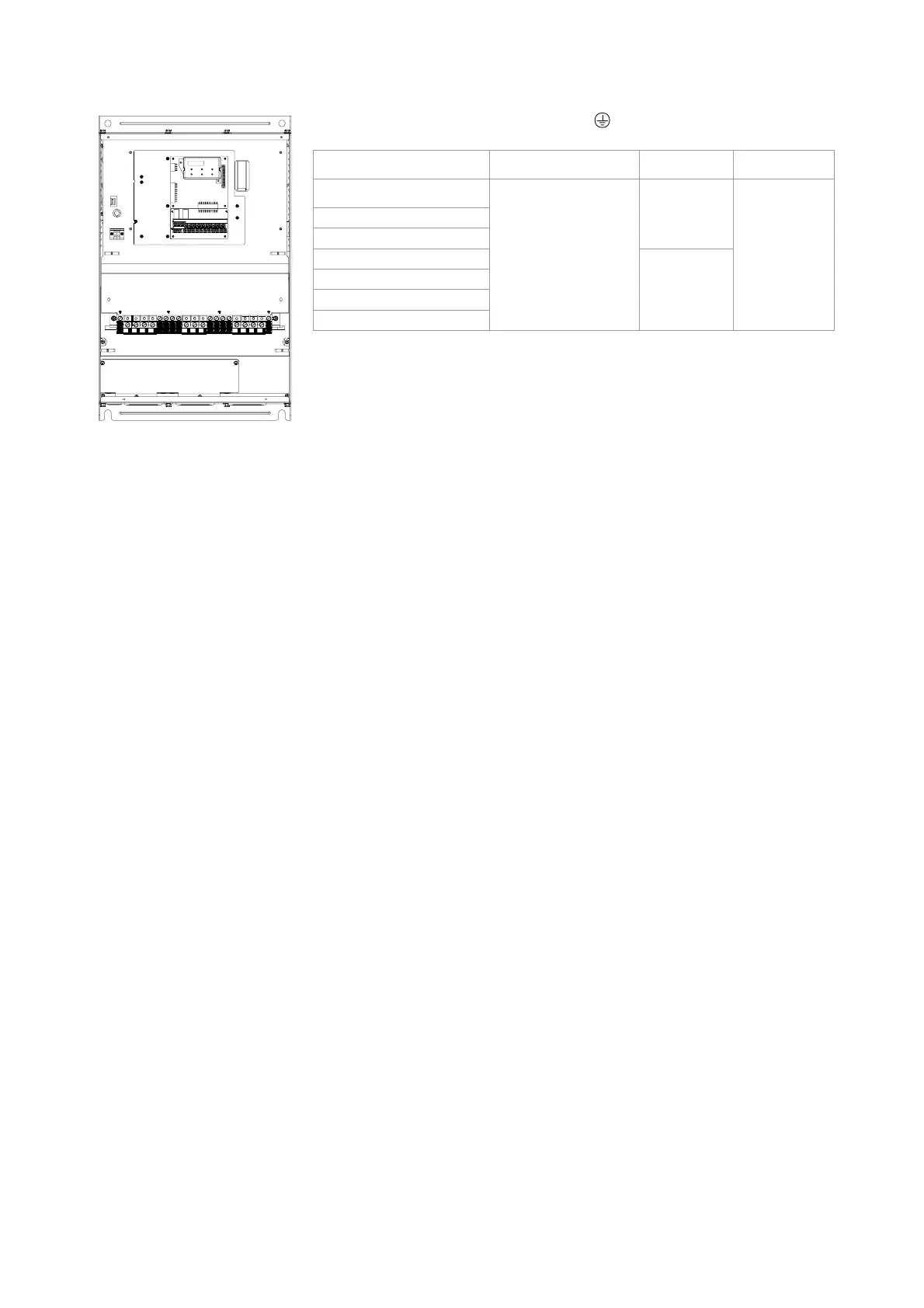

Frame No. E
Terminals on the main circuit:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, +1, +2, -
Model Wire Diameter Torque Wire Type
VFD300VL43A-J
VFD370VL43A-J
VFD450VL43A-J
57kgf-cm
(49in-lbf)
VFD300VL23A-J
VFD370VL23A-J
VFD550VL43A-J
VFD750VL43A-J
4-2 AWG.
(21.2-33.6mm
2
)
200kgf-cm
(173in-lbf)
Stranded
copper
only，
75°C
Wire Type: Stranded copper only, 75°C
