Chapter 7 Optional AccessoriesME300
7-33
7-8 Capacitive Filter

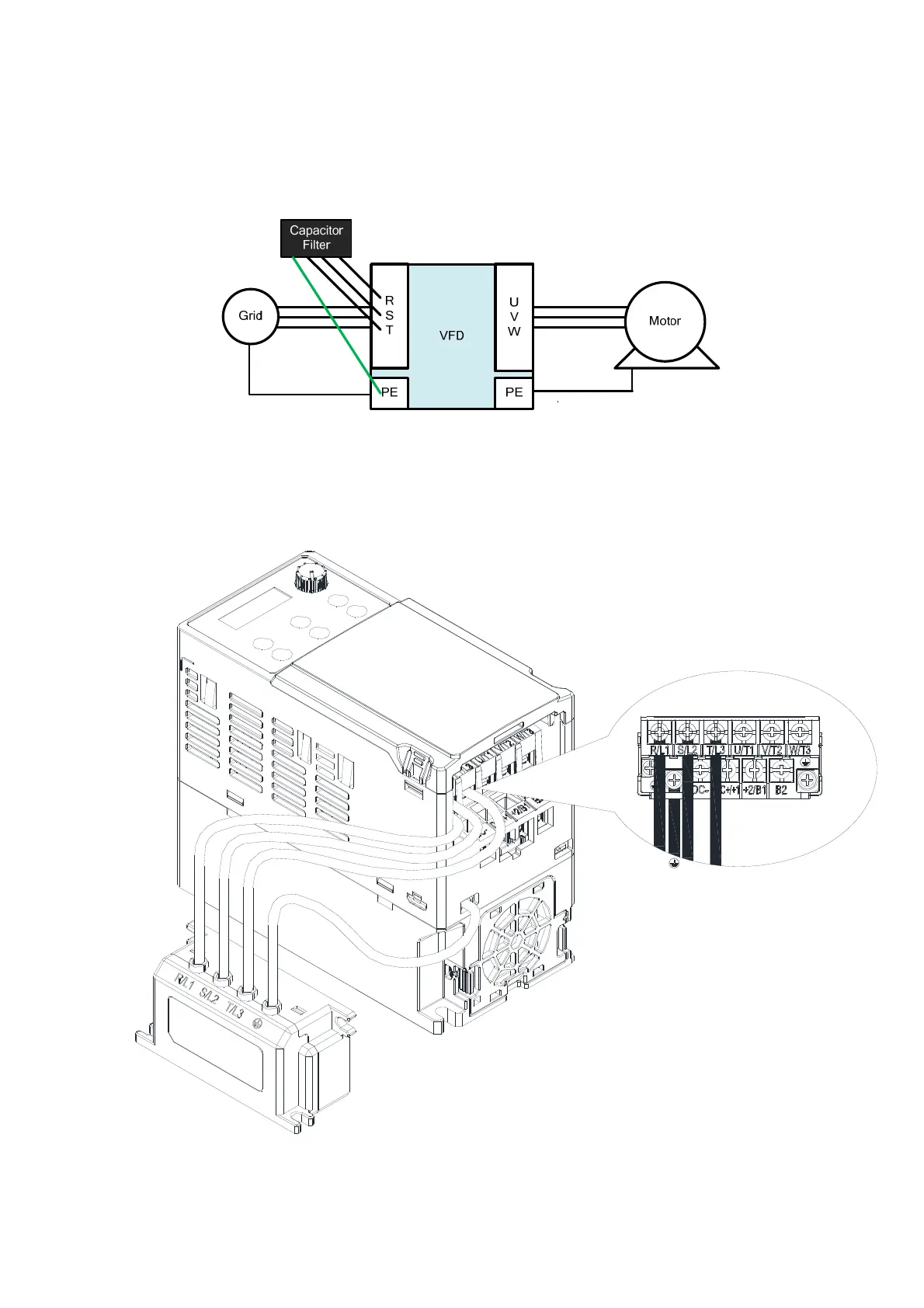

Installation diagram:
The capacitive filter (CXY101-43A) is a simple filter that supports basic filtering and noise
interference reduction.
Capacitive filter and drive wiring figure:
