Delta VFD2A8MS21ANSAA User Manual

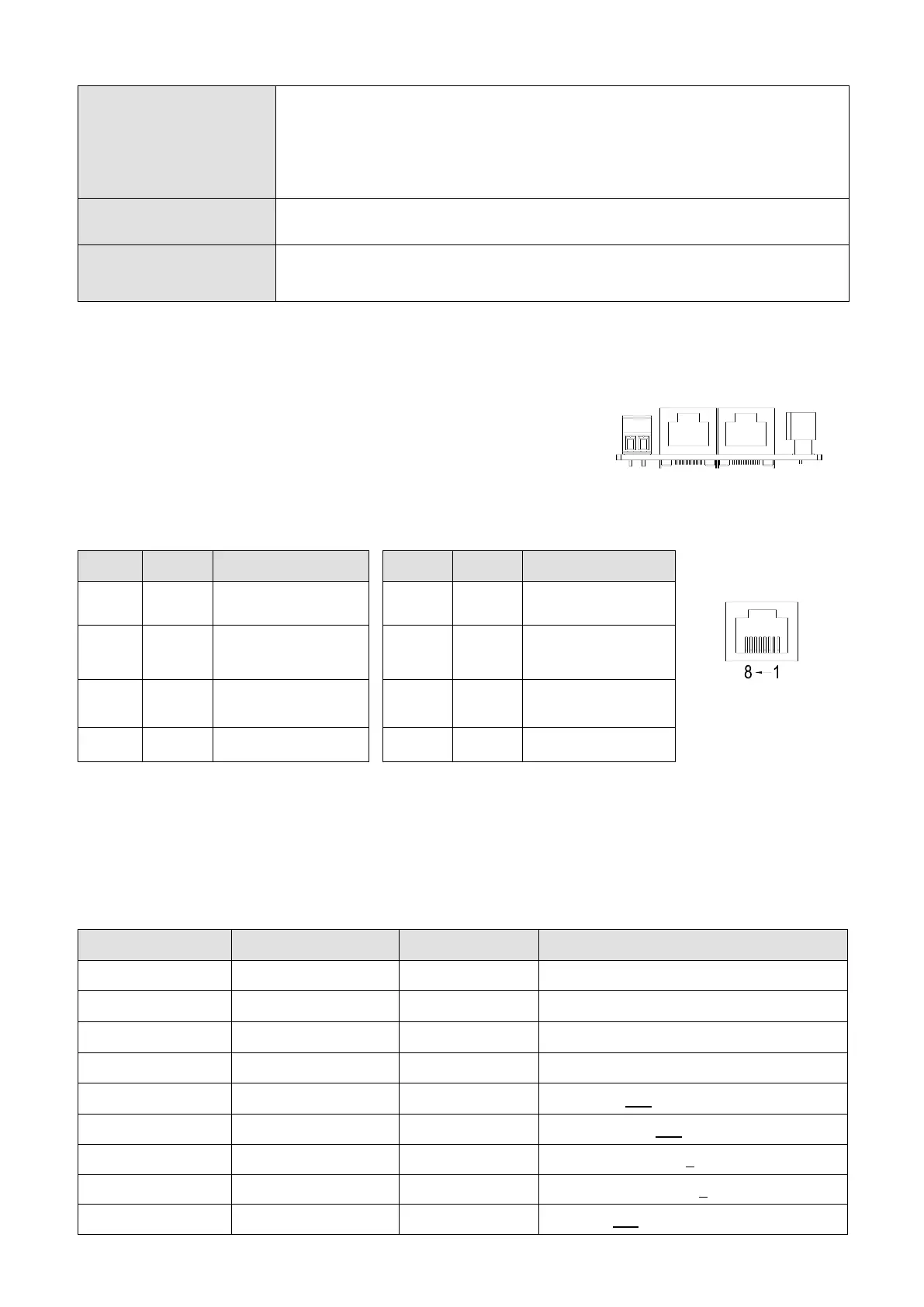

Chapter 8 Option CardsMS300
166
Environment
Noise Immunity
ESD (IEC 61800-5-1, IEC 61000-4-2)
EFT (IEC 61800-5-1, IEC 61000-4-4)
Surge Test (IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 61000-4-6)
Operation / Storage
Operation: -10–50°C (temperature), 90% (humidity)
Storage: -25–70°C (temperature), 95% (humidity)
Shock / Vibration
Resistance
International standards: IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC
60068-2-27
Table 8-29
8-5-4 Installation
Connecting the CMM-EIP03 to the Network
1. Switch OFF the power supply.
2. Open the front cover of the drive.
3. Connect the CAT-5e network cable to the RJ45 port on the
CMM-EIP03 (as shown in the right figure).
Figure 8-36
RJ45 PIN Definition
PIN
Signal
Definition
PIN
Signal
Definition
Figure 8-37
1
Tx+
Positive pole for data
transmission
5
--
N/C
2
Tx-
Negative pole for
data transmission
6
Rx-
Negative pole for
data reception
3
Rx+
Positive pole for data
reception
7
--
N/C
4
--
N/C
8
--
N/C
Table 8-30
Table 8-31
8-5-5 Communication Parameter Settings when MS300 Connects to Ethernet
When you connect the MS300 to EtherNet, set up the communication parameters based on the table
below. The EtherNet master reads and writes the frequency command words and operation command
words for the MS300 after you set the communication parameters.
Parameter
Function
Current Set Value
Definition of Parameter Values
00-20
Frequency command
source
8
The frequency command is controlled by
the communication card.
00-21
Operation command
source
5
The operation command is controlled by
the communication card.
09-30
Decoding method for
communication
0
The decoding method for Delta AC motor
drive
09-75
IP setting
0
Static IP(0) / Dynamic distribution IP(1)
09-76
IP address 1
192
IP address 192.168.1.5
09-77
IP address 2
168
IP address 192.168.1.5
09-78
IP address 3
1
IP address 192.168.1.5
09-79
IP address 4
5
IP address 192.168.1.5
09-80
Netmask 1
255
Netmask 255.255.255.0
