Chapter 12 Descriptions of Parameter SettingsMS300
266
simultaneously.
1: IM V/F control + MI7 one-phase pulse input: you can use the MI7 one-phase pulse input for
closed-loop speed control.
2: IM/PM space vector control: gets the optimal control by auto-tuning the motor parameters.
5: IM FOC sensorless: IM field-oriented sensorless vector control.
 If you use MI7 single-phase pulse input as speed feedback, apply it for VFPG closed-loop
control.
 If you use 1: IMVFPG control mode along with MI7 as speed feedback, you also need to set
Pr.10-00 = 5 and Pr.10-02 = 5.

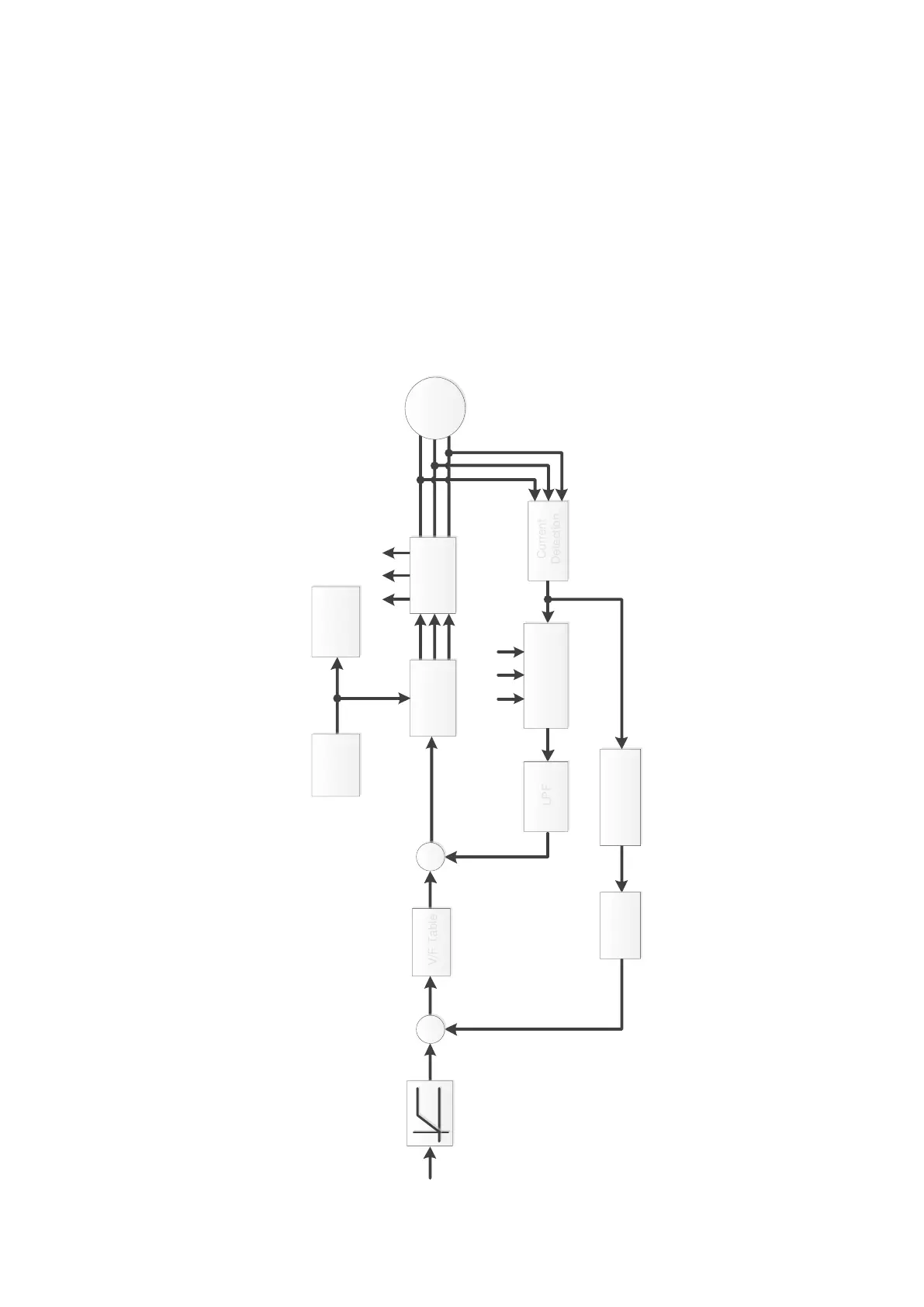

 When Pr.00-10 = 0 and you set Pr.00-11 to 0, the V/F control diagram is as follows:
AVR
LPF
LPF
Acc/Dec Time
V/F Table
V/F Table
Torque
Compensation
Current
Detection
Current
Detection
IGBT
PWM
IM
Pr.07-24
Pr.07-26
Pr.07-23
Pr.01-01~01-02 Pr.05-01~05-04
+
Pr.01-01~01-08
Pr.01-12~01-27
Fcmd
Pr.00-20
LPF
Slip
Compensation
Pr.07-25
U
a
U
b
U
c
+
U
a
U
b
U
c
Pr.07-27
I
a
I
b
I
c
DC Bus
Voltage
Detection
DC Bus
Voltage
Protection
+
+
