Delta VFD2A8MS21ANSAA User Manual

Chapter 12 Descriptions of Parameter SettingsMS300
311
Settings
Functions
Descriptions

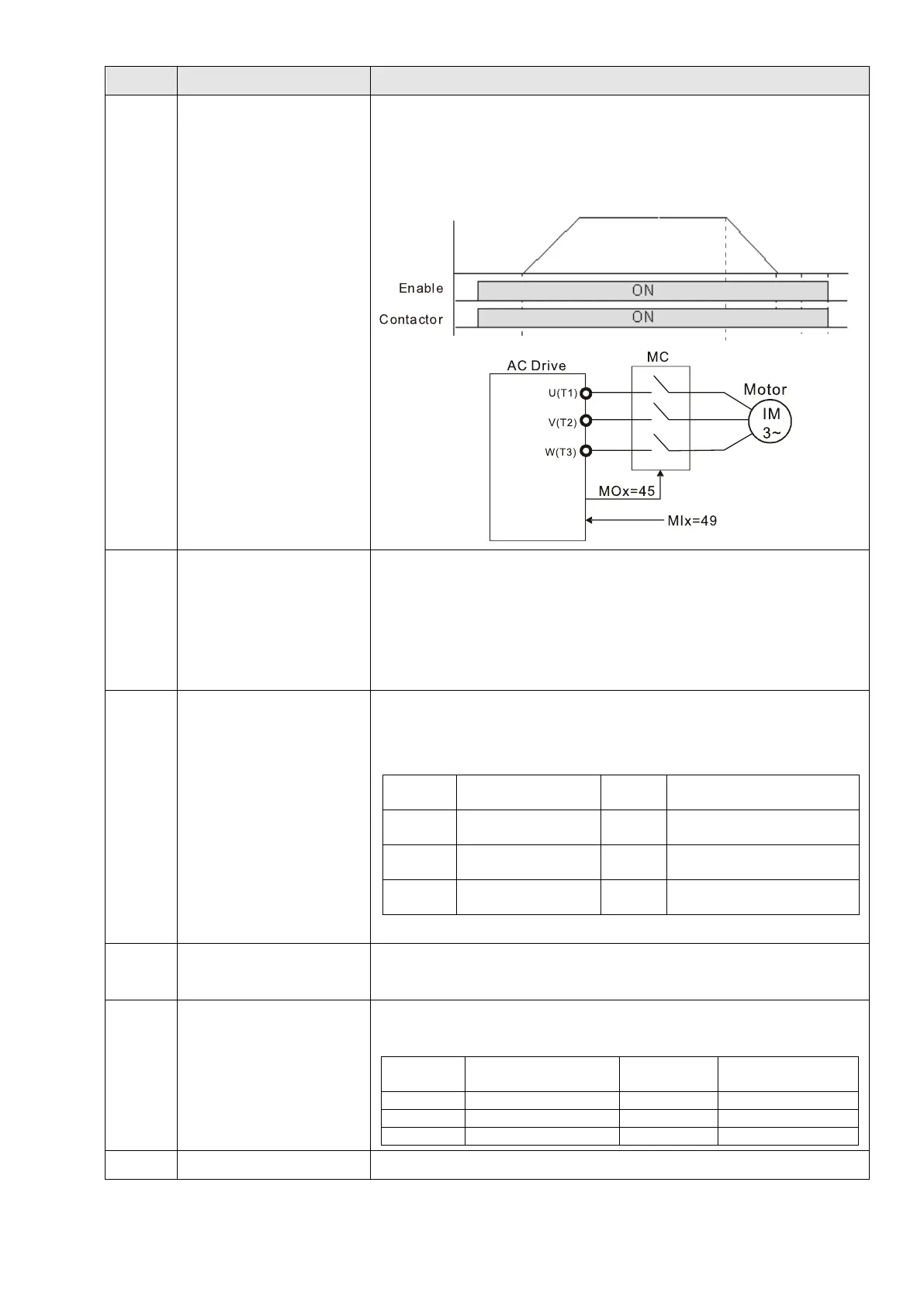

45
UVW output
electromagnetic valve
switch
Use this function with external terminal input = 49 (drive enabled)
and external terminal output = 45 (electromagnetic valve enabled),
and then the electromagnetic valve is ON or OFF according to the
status of the drive.
46
Master dEb output
When dEb rises at the master, MO sends a dEb signal to the
slave. Output the message when the master triggers dEb. This
ensures that the slave also triggers dEb. Then the slave follows
the deceleration time of the master to stop simultaneously with
the master.
50
Output control for
CANopen
Control the multi-function output terminals through CANopen.
The mapping table of the CANopen DO is shown in the following
table:
Physical
Terminal
Setting for Related
Parameters
Attribute
Corresponding Index
RY1
Pr.02-13=50
RW
2026-41
bit 0 of initial value 0x01
MO1
Pr.02-16=50
RW
2026-41
bit 3 of initial value 0x01
MO2
Pr.02-17=50
RW
2026-41
bit 4 of initial value 0x01
Refer to Section 15-3-5 for more information.
51
Analog output control for
RS-485 interface
For RS-485 communication control output.
52
Output control for
communication cards
Control the output through the communication cards
(CMM-PD02, CMM-DN02, CMM-EIP02, CMM-COP02, CMM-EC02)
Physical
Terminal
Setting of Related
Parameters
Attribute
Corresponding
Address
RY
Pr.02-13 = 51
RW
bit 0 of 2640
MO1
Pr.02-16 = 51
RW
bit 3 of 2640
MO2
Pr.02-17 = 51
RW
bit 4 of 2640
53
Fire mode indication
Activates when MI setting 58 or 59 is enabled.
