Delta VFD2A8MS21ANSAA User Manual

Chapter 15 CANopen OverviewMS300
652

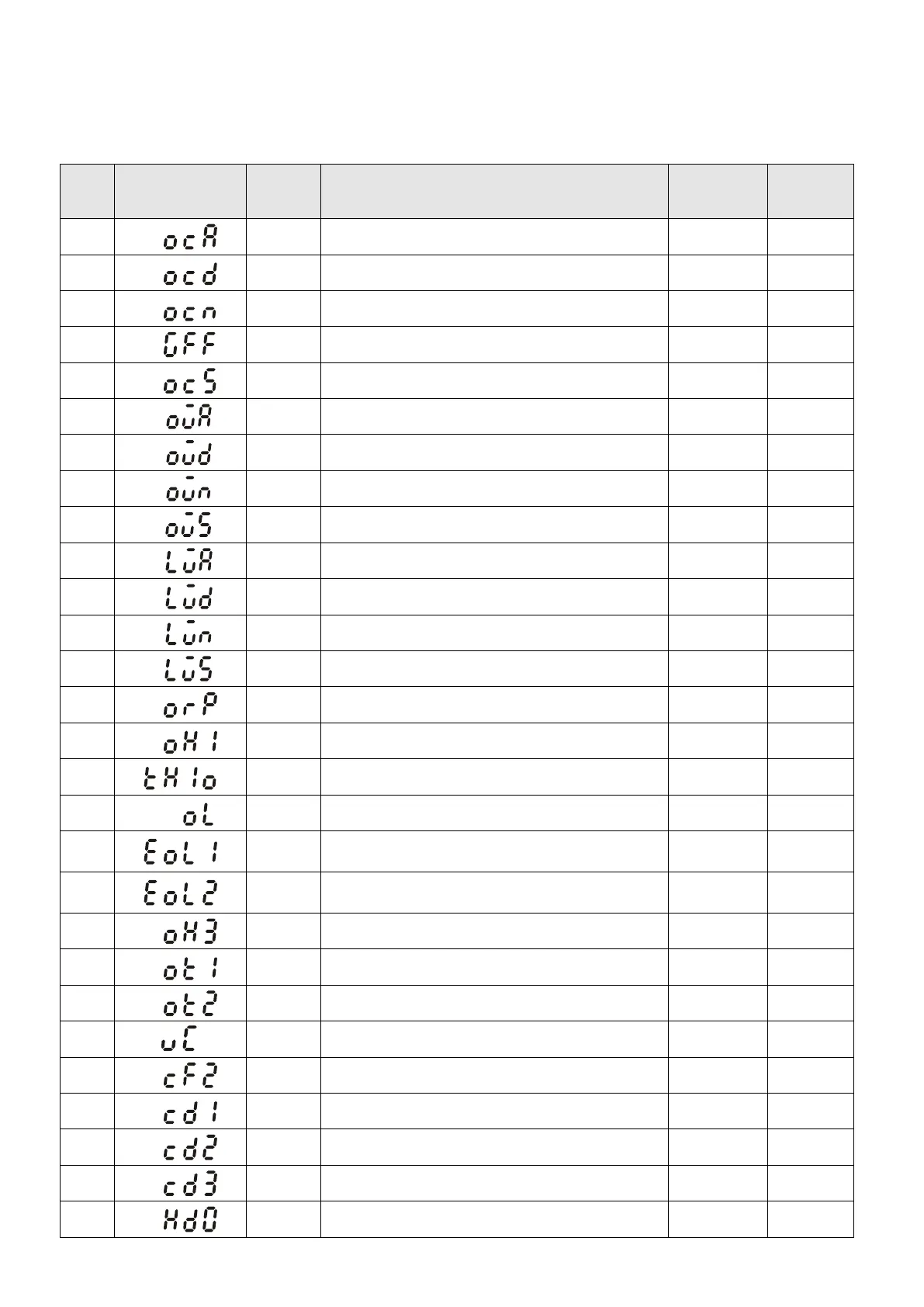

15-5 CANopen Fault Codes
 Refer to settings for Pr.06-17–Pr.06–22 and Pr.14-70–Pr.14-73
 Refer to Chapter 14 Fault Codes for detailed descriptions.
Setting
Display
Fault
Code
Description
CANopen
Fault Register
(bit 0–7)
CANopen
Fault Code
1
0001H
Over-current during acceleration (ocA)
1
2213H
2
0002H
Over-current during deceleration (ocd)
1
2213H
3
0003H
Over-current during steady operation (ocn)
1
2314H
4
0004H
Ground fault (GFF)
1
2240H
6
0006H
Over-current at stop (ocS)
1
2314H
7
0007H
Over-voltage during acceleration (ovA)
2
3210H
8
0008H
Over-voltage during deceleration (ovd)
2
3210H
9
0009H
Over-voltage during constant speed (ovn)
2
3210H
10
000AH
Over-voltage at stop (ovS)
2
3210H
11
000BH
Low-voltage during acceleration (LvA)
2
3220H
12
000CH
Low-voltage during deceleration (Lvd)
2
3220H
13
000DH
Low-voltage at constant speed (Lvn)
2
3220H
14
000EH
Low-voltage at stop (LvS)
2
3220H
15
000FH
Phase loss protection (orP)
2
3130H
16
0010H
IGBT overheating (oH1)
3
4310H
18
0012H
IGBT temperature detection failure (tH1o)
3
FF00H
21
0015H
Over load (oL)
1
2310H
22
0016H
Electronic thermal relay 1 protection
(EoL1)
1
2310H
23
0017H
Electronic thermal relay 2 protection
(EoL2)
1
2310H
24
0018H
Motor overheating (oH3)
3
FF20H
26
001AH
Over torque 1 (ot1)
3
8311H
27
001BH
Over torque 2 (ot2)
3
8311H
28
001CH
Under current (uC)
1
8321H
31
001FH
EEPROM read error (cF2)
5
5530H
33
0021H
U-phase error (cd1)
1
FF04H
34
0022H
V-phase error (cd2)
1
FF05H
35
0023H
W-phase error (cd3)
1
FF06H
36
0024H
cc hardware error (Hd0)
5
FF07H
