Chapter 7 Optional AccessoriesMS300
77

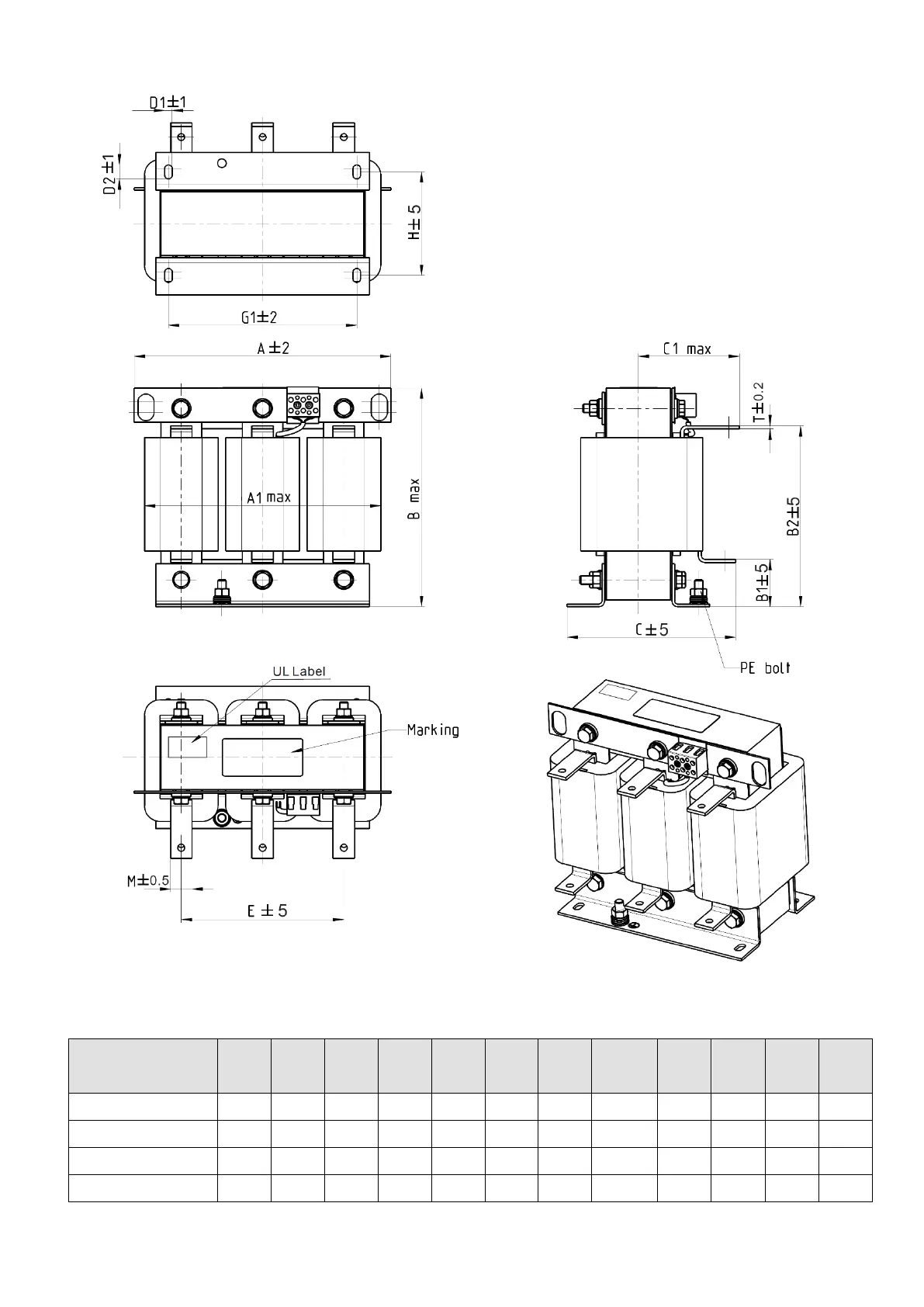

Figure 7-19
Unit: mm
AC Output
Reactors
Delta Part #
A
A1
B
B1
B2
C
C1
D1*D2
E
G1
H
M*T
DR060LP405
240
228
215
44
170
163
110
7*13
152
176
97
20*3
DR073LP334
250
235
235
44
186
174
115
11*18
160
190
124
20*3
DR091LP267
250
240
235
44
186
174
115
11*18
160
190
124
20*3
DR110LP221
270
260
245
50
192
175
115
10*18
176
200
106
20*3
Table 7-35
