Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-34

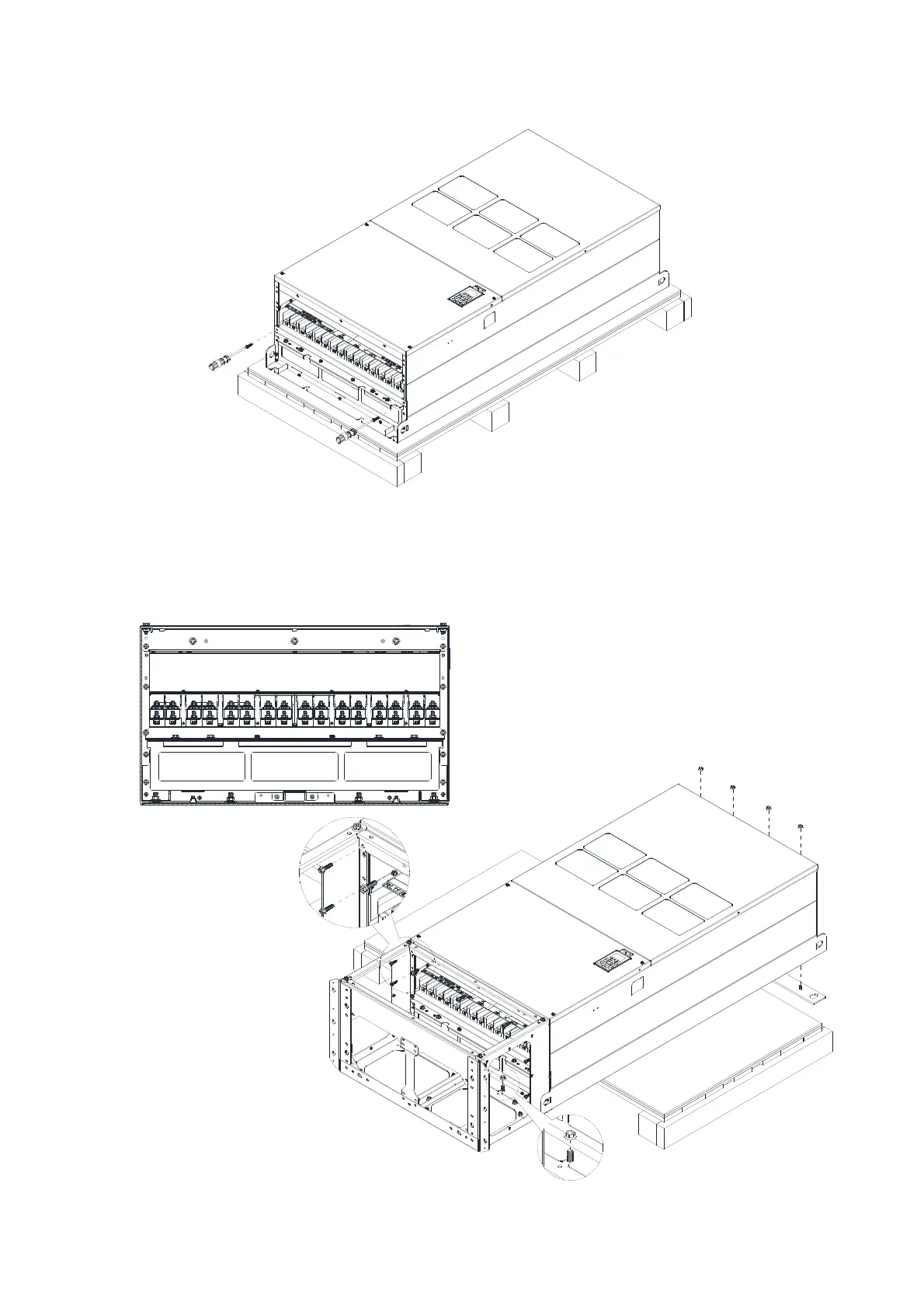

4. Fasten the M6 screws to locations shown in below figure.
Screw Torque: 35–45 kg-cm / [30.3–39 Ib-in.] / [3.4–4.4 Nm]
5. Install conduit box and accessories by fasten all the screws shown in the following figure.
Screw 1–6: M6 screw torque: 55–65 kg-cm / [47.7–56.4 Ib-in] / [5.4–6.4 Nm]
Screw 7–9: M8 screw torque: 100–110 kg-cm / [86.7–95.4 Ib-in] / [9.8–10.8 Nm]
Screw 10–13: M10 screw torque: 250–300 kg-cm / [216.9–260.3 Ib-in] / [24.5–29.4 Nm]
Screw 14–17: M8 screw torque: 100–110 kg-cm / [86.7–95.4 Ib-in] / [9.8–10.8 Nm]
13
1
8
6
10
2
9
11
3
5
1
2
7
4
12
7
3
2
17
16
15
14
