Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-38

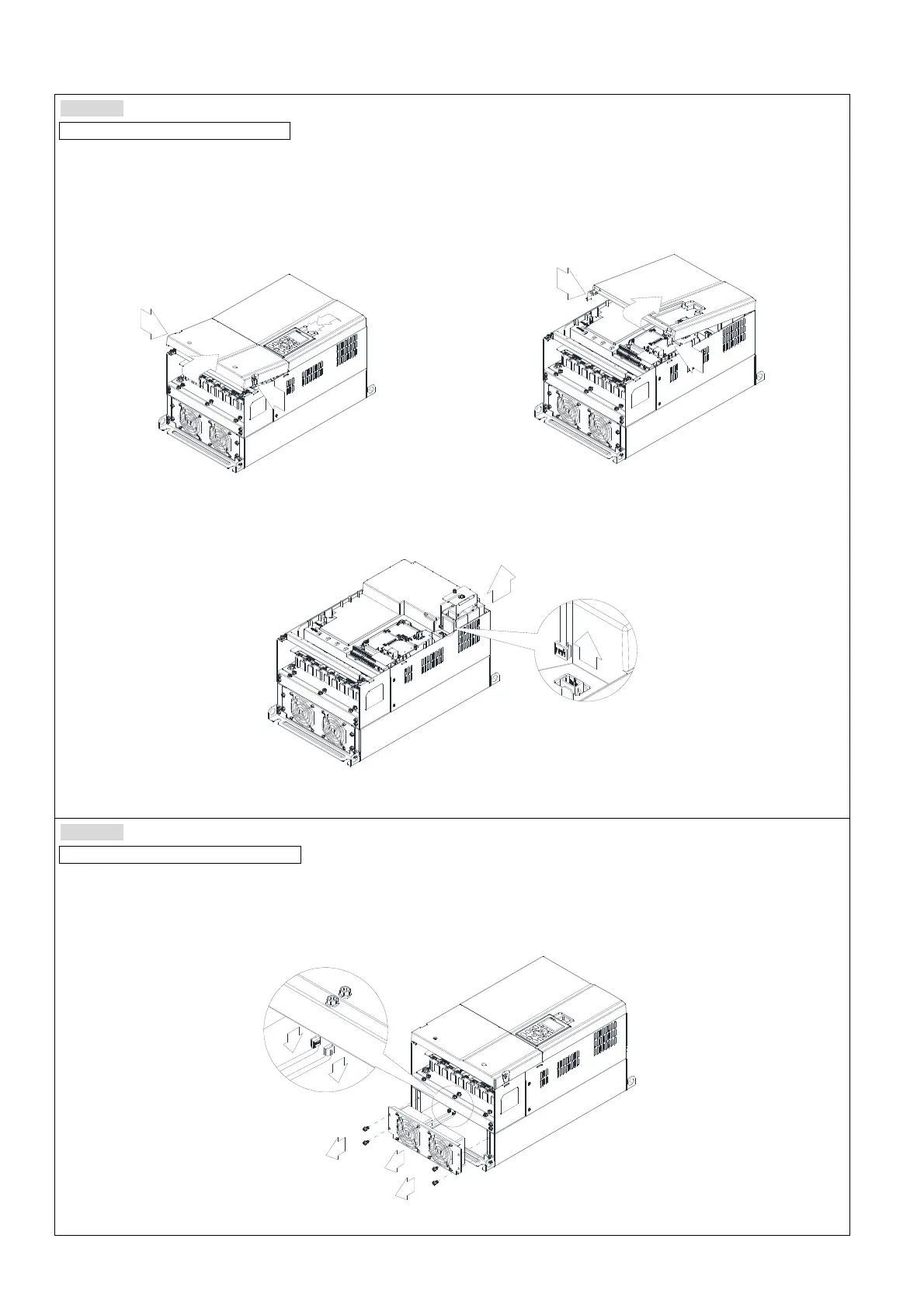

 Fan Removal
Frame D0
Model “MKC-DFKB” Capacitor Fan
Applicable model
VFD300C43S-HS; VFD370C43S-HS
1. Loosen screw 1 and screw 2, press the tab on the right
and left to remove the cover, follow the direction the
arrows indicate. Press on top of digital keypad to
properly remove it. Screw 1, 2 Torque: 12–15 kg-cm /
[10.4–13 lb-in.] / [1.2–1.5 Nm]
1
2
Figure 1
2. (Figure 2) Loosen screw 3; press the tab on the right
and the left to remove the cover. Screw 3 Torque: 6–8
kg-cm / [5.2–6.9 lb-in.] / [0.6–0.8 Nm]
3
Figure 2
3. Loosen screw 4 (figure 3) and disconnect fan power and pull out the fan. (As shown in the enlarged picture 3) Screw 4
Torque: 10–12 kg-cm / [8.7–10.4 lb-in.] / [1.0–1.2 Nm]
4
Figure 3
Frame D0
Model “MKC-D0FKM” Heat Sink Fan
Applicable model
VFD300C43S-HS; VFD370C43S-HS
1. Loosen the screw and remove the fan kit. Screw torque: 24–26 kg-cm / [20.8–22.6 lb-in. / [2.4–2.5 Nm]
2. (As shown Figure 1) Before pulling out the fan, make sure the fan power is disconnected.
1
2
3
4
Figure 1
