Delta VFD300C43S-HS User Manual

Chapter 7 Optional AccessoriesC2000-HS
7-49
Frame F

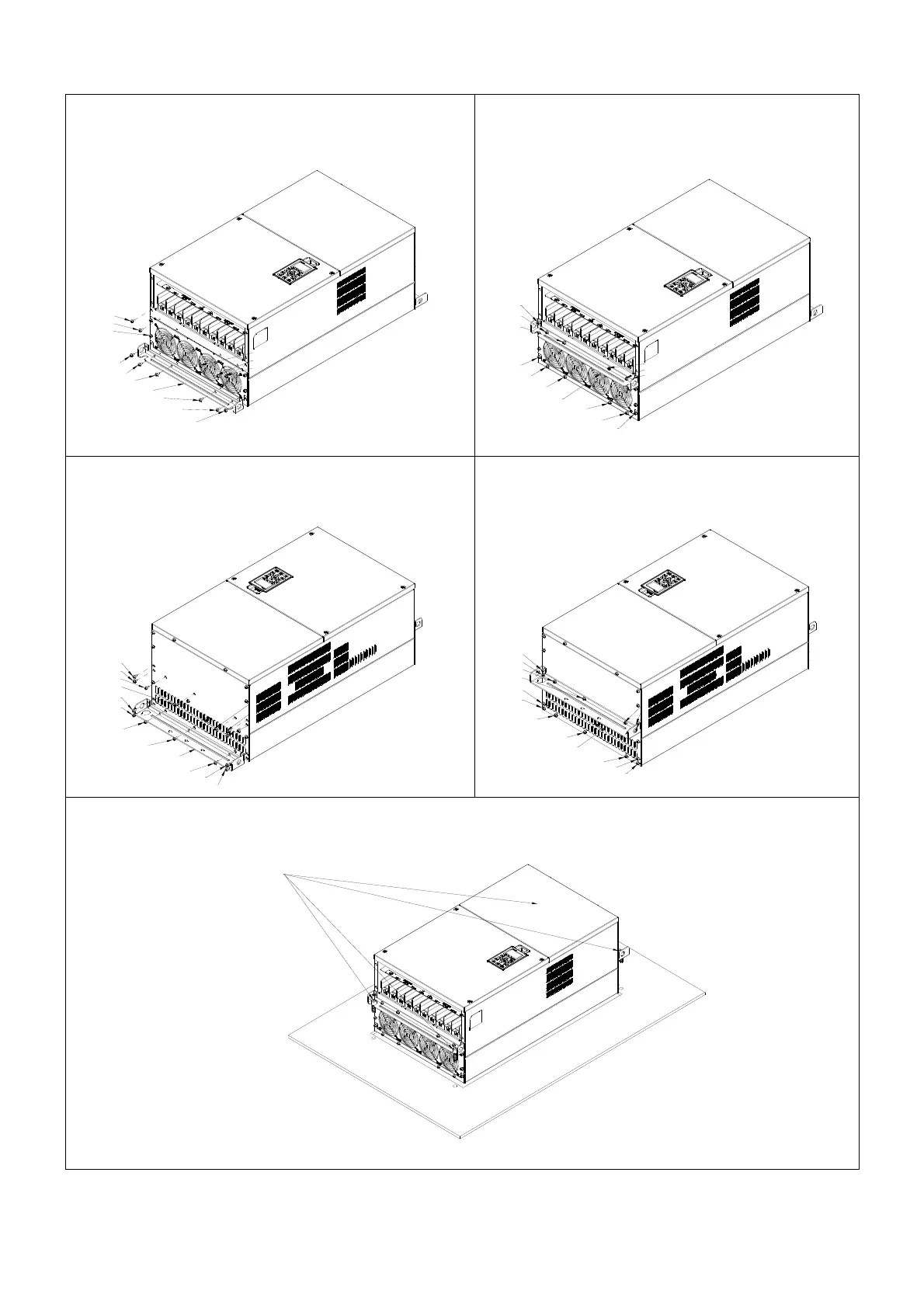

1. Loosen 12 screws and remove Fixture 2.
1
2
3
4
6
5
12
7
8
9
10
11
FIXTURE 2
2. Loosen 12 screws and remove Fixture 2.
Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]
1
6
5
12
7
8
FIXTURE2
9
10
11
2
3
4
3. Loosen screw 13–26 and remove Fixture 1.
13
19
18
17
14
15
16
20
26
25
21
22
23
24
FIXTURE1
4. Install Fixture 1 by fasten screw 13–26
Screw torque: 24–26 kg-cm / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]
13
19
18
17
20
26
25
24
FIXTURE1
23
21
22
14
15
16
5. Place 4 of the M12 screws through Fixture 1&2 and plate then fasten the screws.
Screw torque: 300–400 kg-cm / [260–347 Ib-in.] / [29.4–39.2 Nm]
Screws M12*4
