Delta VFD300C43S-HS User Manual

Chapter 8 Option CardsC2000-HS
8-4

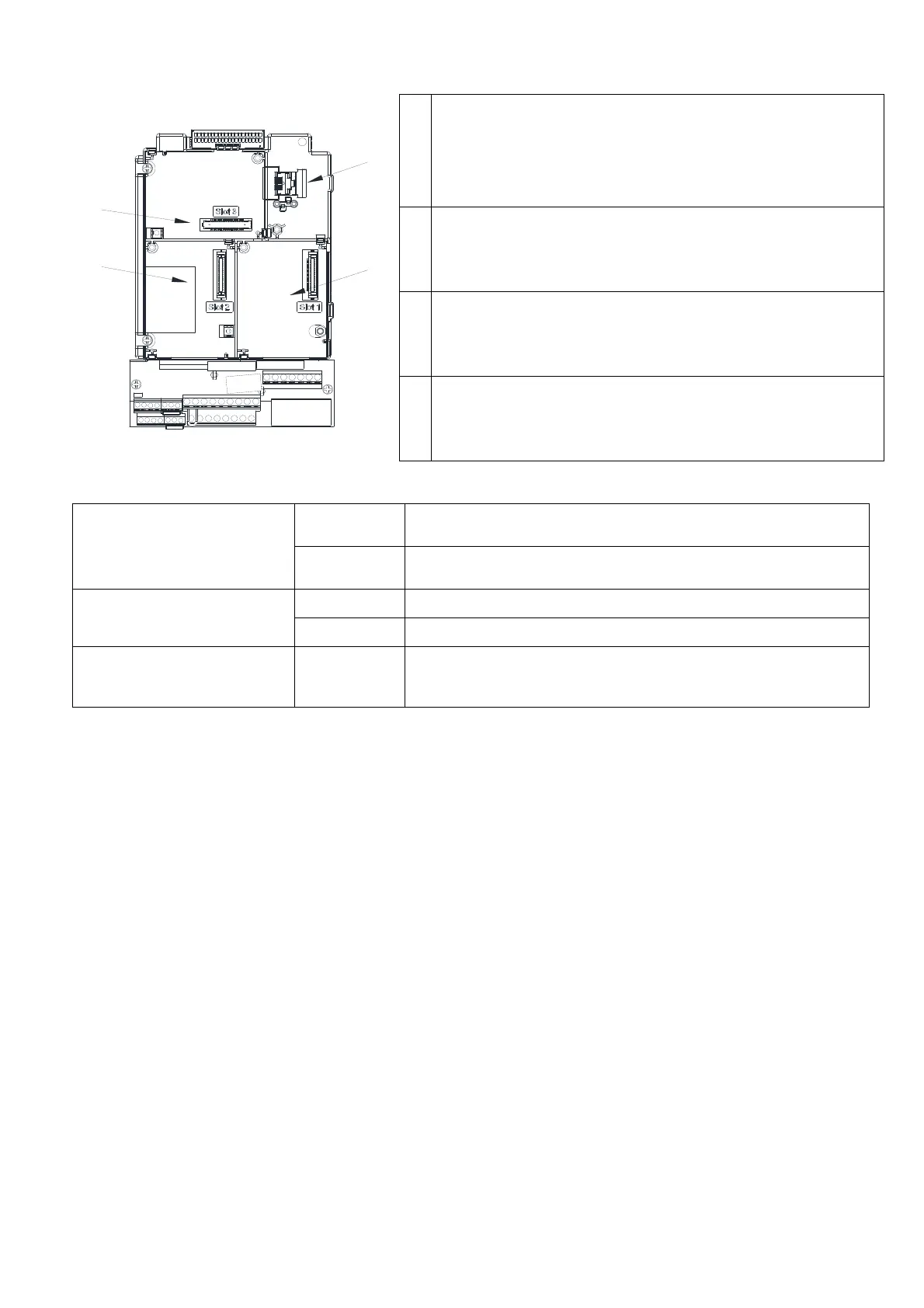

8-1-2 Option Card Installation Location
Slot 1
Slot 3
Slot 2
1 RJ45 (Socket) for digital keypad KPC-CC01
Please refer to CH10 for more details on digital keypad.
Please refer to CH10 Digital Keypad for more details on
optional accessory RJ45 extension cable.
2 Communication extension card (Slot 1)
CMC-MOD01; CMC-PD01; CMC-DN01; CMC-EIP01;
EMC-COP01; CMC-EC01; CMC-PN01
3 I/O & Relay extension card (Slot 3)
EMC-D42A; EMC-D611A; EMC-R6AA; EMC-BPS01;
EMC-A22A
4 PG Card (Slot 2)
EMC-PG01L; EMC-PG02L; EMC-PG01O; EMC-PG02O;
EMC-PG01U; EMC-PG02U; EMC-PG01R;
Screws Specification for option card terminals:
EMC-D42A; EMC-D611A;
EMC-BPS01
Wire gauge
0.2
–0.5mm
2
[26–20AWG ]
Torque
5kg-cm / [4.4 Ib-in] / [0.5Nm]
EMC-R6AA
Wire gauge
0.2
–0.5mm
2
[26–20AWG ]
Torque
8kg-cm / [7 Ib-in] / [0.8Nm]
EMC-PG01L; EMC-PG01O
EMC-PG01R; EMC-PG01U
Wire gauge
Torque
0.2
–0.5mm
2
[26–20AWG ]
2kg-cm / [1.73 Ib-in] / [0.2Nm]
○
1
○
2
○
3
○
4
