Chapter 8 Option CardsC2000-HS
8-17

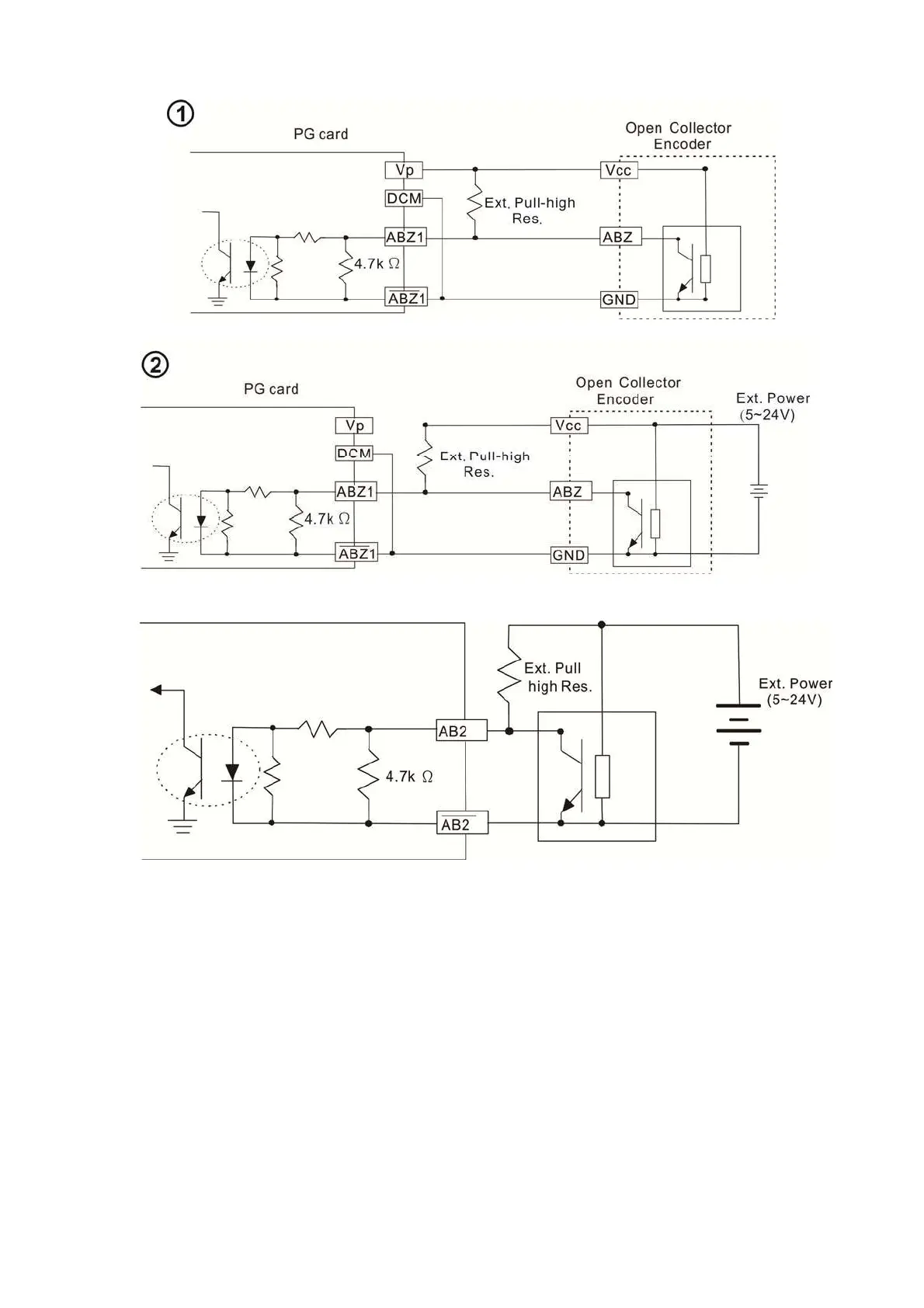

PG1 card wiring diagram (the image 1 and 2 below are wiring diagrams of Open Collector encoder)
PG2 Wiring Diagram
