Delta VFD300C43S-HS User Manual

Chapter 12 Description of Parameter SettingsC2000-HS
12.1-02-1

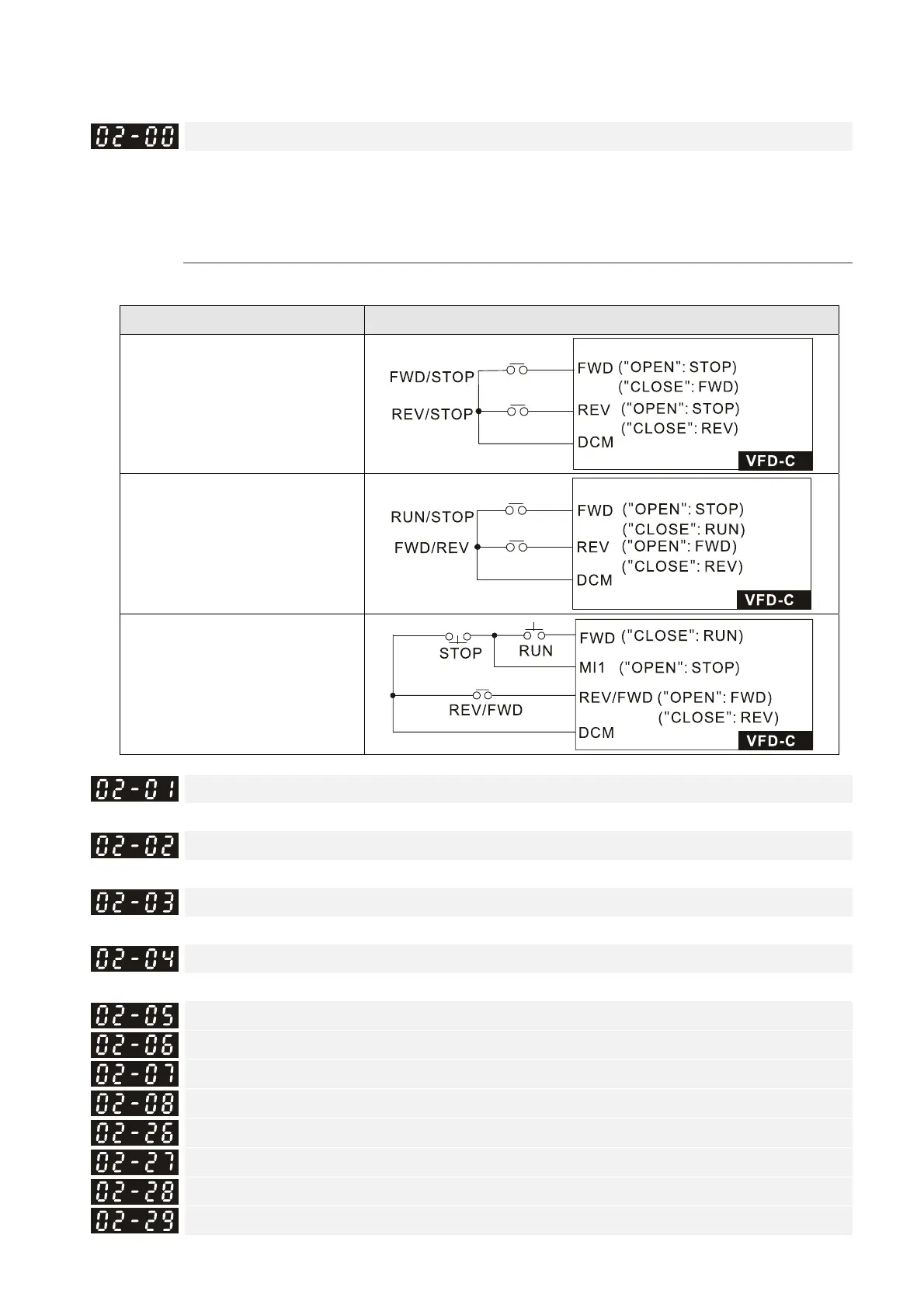

02 Digital Input / Output Parameter  This parameter can be set during operation.
Two-wire / Three-wire Operation Control
Default: 0
Settings 0: Two-wire mode 1, power on for operation control
1: Two-wire mode 2, power on for operation control
2: Three-wire, power on for operation control
 Sets the operation control method by external terminals (Pr. 00-21=1 or Pr. 00-31=1):
Pr. 02-00 Control Circuits of the External Terminal
Setting value: 0
Two-wire mode 1
FWD / STOP
REV / STOP
Setting value: 1
Two-wire mode 2
RUN / STOP
REV / FWD
Setting value: 2
Three-wire operation control
Multi-function Input Command 1 (MI1)
Default: 1
Multi-function Input Command 2 (MI2)
Default: 2
Multi-function Input Command 3 (MI3)
Default: 3
Multi-function Input Command 4 (MI4)
Default: 4
Multi-function Input Command 5 (MI5)
Multi-function Input Command 6 (MI6)
Multi-function Input Command 7 (MI7)
Multi-function Input Command 8 (MI8)
Input Terminal of I/O Extension Card (MI10)
Input Terminal of I/O Extension Card (MI11)
Input Terminal of I/O Extension Card (MI12)
Input Terminal of I/O Extension Card (MI13)
