Chapter 12 Description of Parameter SettingsC2000-HS
12.2-00-2

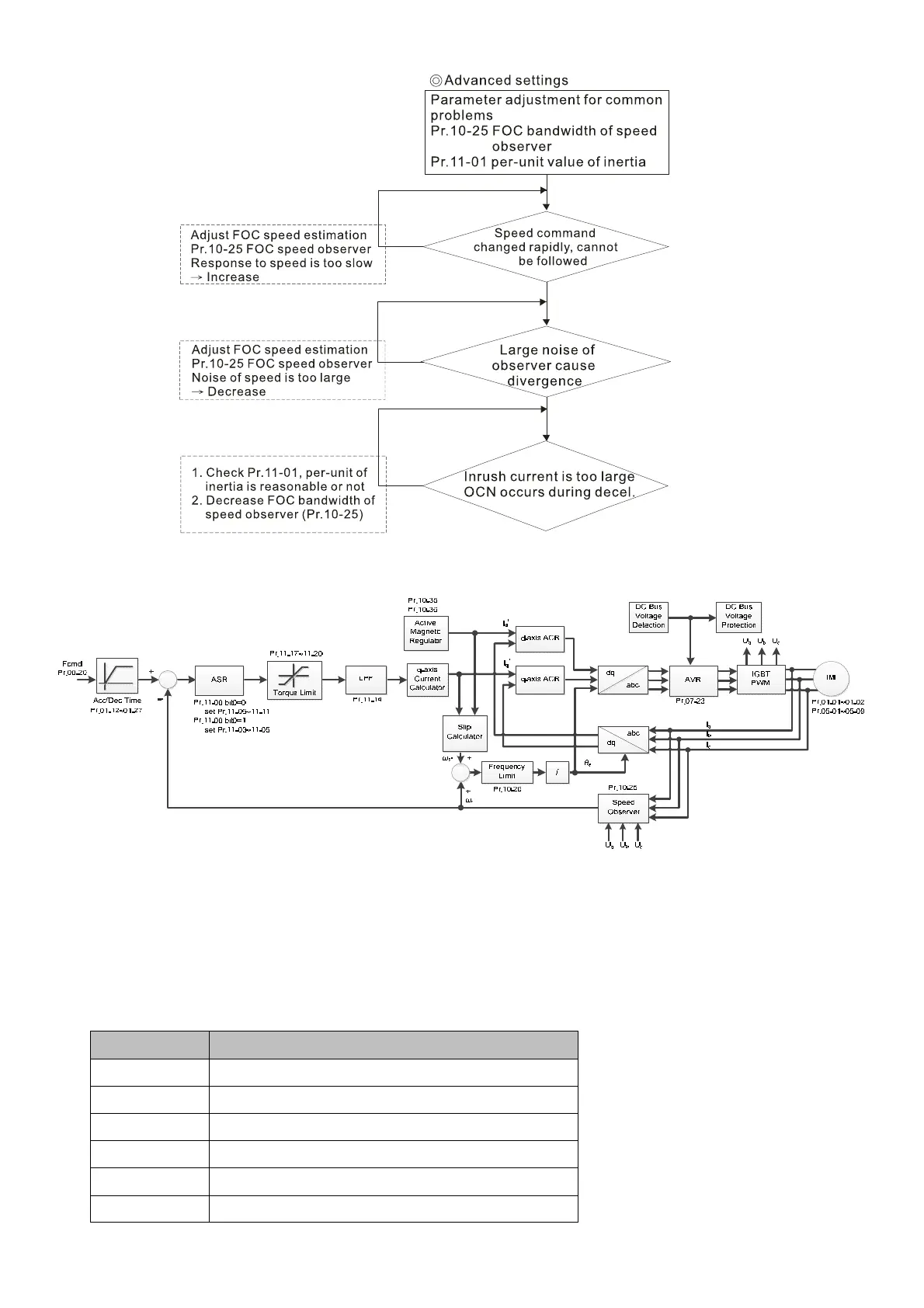

FOC sensorless control diagram
Adjustment procedure
1. Parameter reset
Reset Pr.00-02 = 10 (60Hz) to the default value.
2. Motor parameter setting
Pr.05-33 = 0 (IM)
3. Set up motor parameters according to the nameplate on the motor
Parameter Description
Pr.01-01 Output frequency of motor 1 (Hz)
Pr.01-02 Output voltage of motor 1 (V
AC
)
Pr.05-01 Full-load current for induction motor 1 (A)
Pr.05-02 Rater power for induction motor 1 (kW)
Pr.05-03 Rated speed for induction motor 1 (rpm)
Pr.05-04 Number of poles for induction motor 1 (poles)
