Chapter 5 Main Circuit TerminalsC2000-HS
5-3

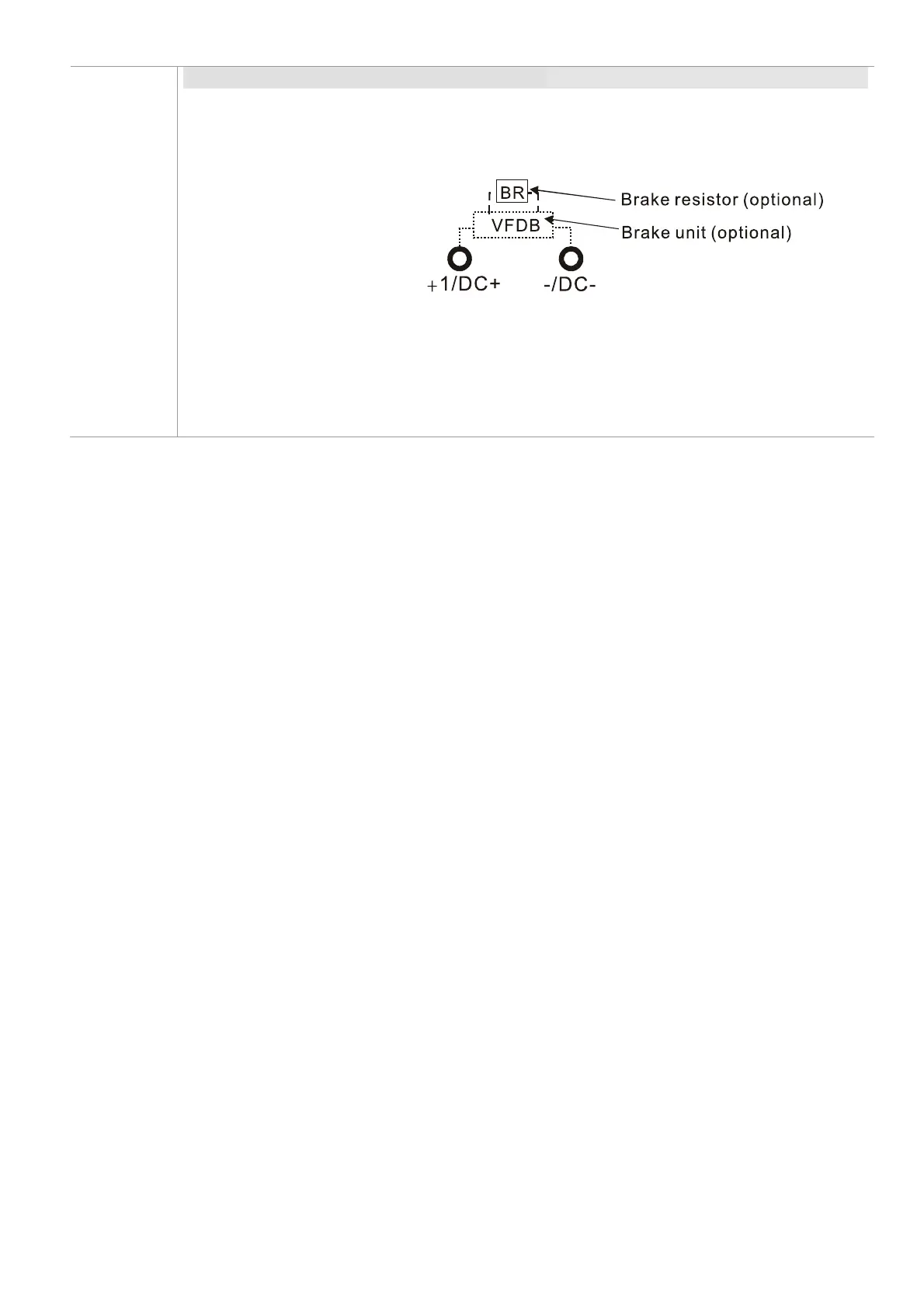

Terminals for connecting external brake unit
Connect a brake resistor or brake unit in applications with frequent deceleration
ramps, short deceleration time, too low brake torque or requiring increased brake
torque.
Figure 5-2
DC+ and DC- are connected by common DCBUS, please refer to Chapter 5-1 (Main
Circuit Terminal) for the wiring terminal specification and the wire gauge information.
Please refer to the VFDB manual for more information on wire gauge when installing
the brake unit.
