Delta VFD300C43S-HS User Manual

Chapter 6 Control TerminalsC2000-HS
6-5

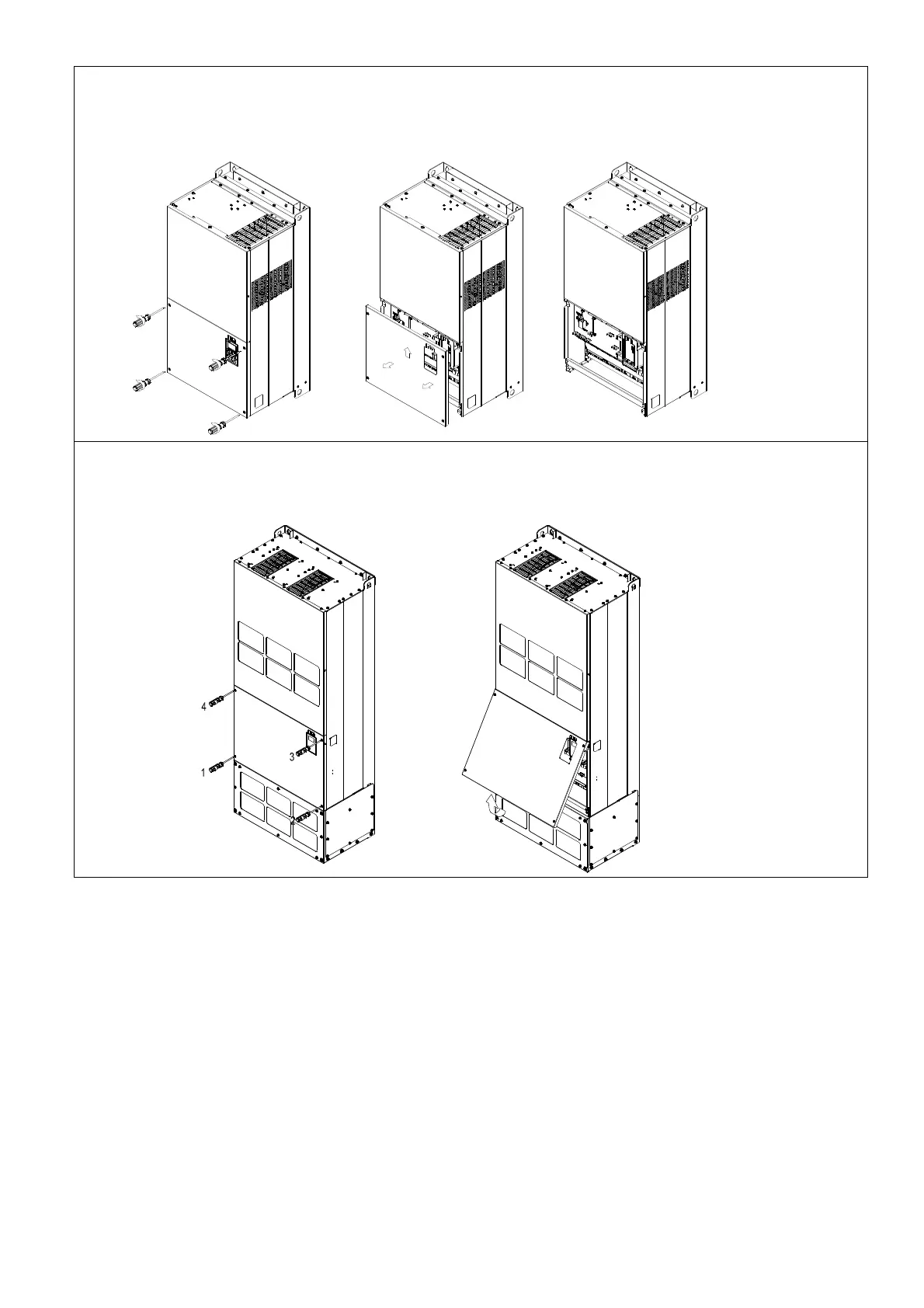

Frame G
Applicable models: VFD2200C43A-HS
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-9
Frame H
Applicable models: VFD3550C43A-HS
Screw torque: 14–16 kg-cm / [12.15–13.89 lb-in.] / [1.4–1.6 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-10
