Delta VFD300C43S-HS User Manual

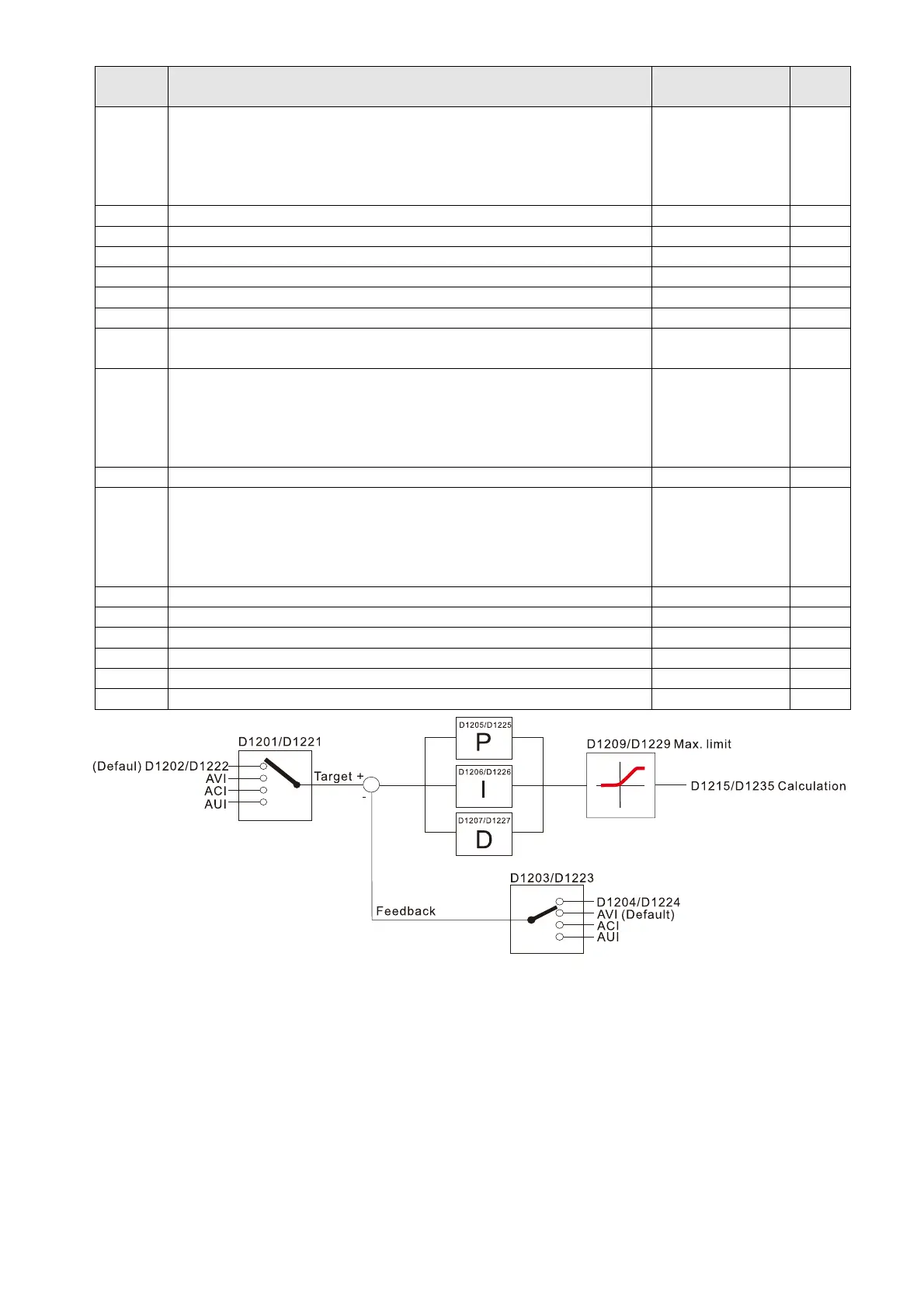

Chapter 16 PLC Function ApplicationsC2000-HS
16-36
Special
D
Description of Function Default R/W *
D1203
PID 1 Feedback selection:
0: Refer to D1204
1: AVI
2: ACI
3: AUI
1
RW
D1204 PID 1 Feedback value (0.00%–100.00%) 0
RW
D1205 PID 1 P value (decimal 2 points) 10
RW
D1206 PID 1 I value (decimal 2 points) 1000
RW
D1207 PID 1 D value (decimal 2 points) 0
RW
D1209 PID 1 Max. limit 10000
RW
D1215 PID 1 Calculation (decimal 2 points) 0
RO
D1220
PID2 Mode:
0: Basic mode
0
RW
D1221
PID 2 Target selection:
0: Refer to D1202
1: AVI
2: ACI
3: AUI
0
RW
D1222 PID 2 Target value (0.00%–100.00%) 5000
RW
D1223
PID 2 Feedback selection:
0: Refer to D1204
1: AVI
2: ACI
3: AUI
1
RW
D1224 PID 2 Feedback value (0.00%–100.00%) 0
RW
D1225 PID 2 P value (decimal 2 points) 10
RW
D1226 PID 2 I value (decimal 2 points) 1000
RW
D1227 PID 2 D value (decimal 2 points) 0
RW
D1229 PID 2 Max. limit 10000
RW
D1235 PID 2 Calculation (decimal 2 points) 0
RO
