Delta VFD300C43S-HS User Manual

Chapter 16 PLC Function ApplicationsC2000-HS
16-164
triggered.
*If the keypad is suddenly pulled out while the calendar is operating normally, and is not reconnected
for more than 1 minute, PLrt will be triggered.
Practical applications:
We will perform a demo of simple applications.
We first correct the keypad time. After pressing Menu on the keypad, select the 9th time setting
option. After selection, set the current time.

Menu
7.Quick Start
8.Displ Setup
9.Time Setup

Time Setup
2020/09/01
02:16:21

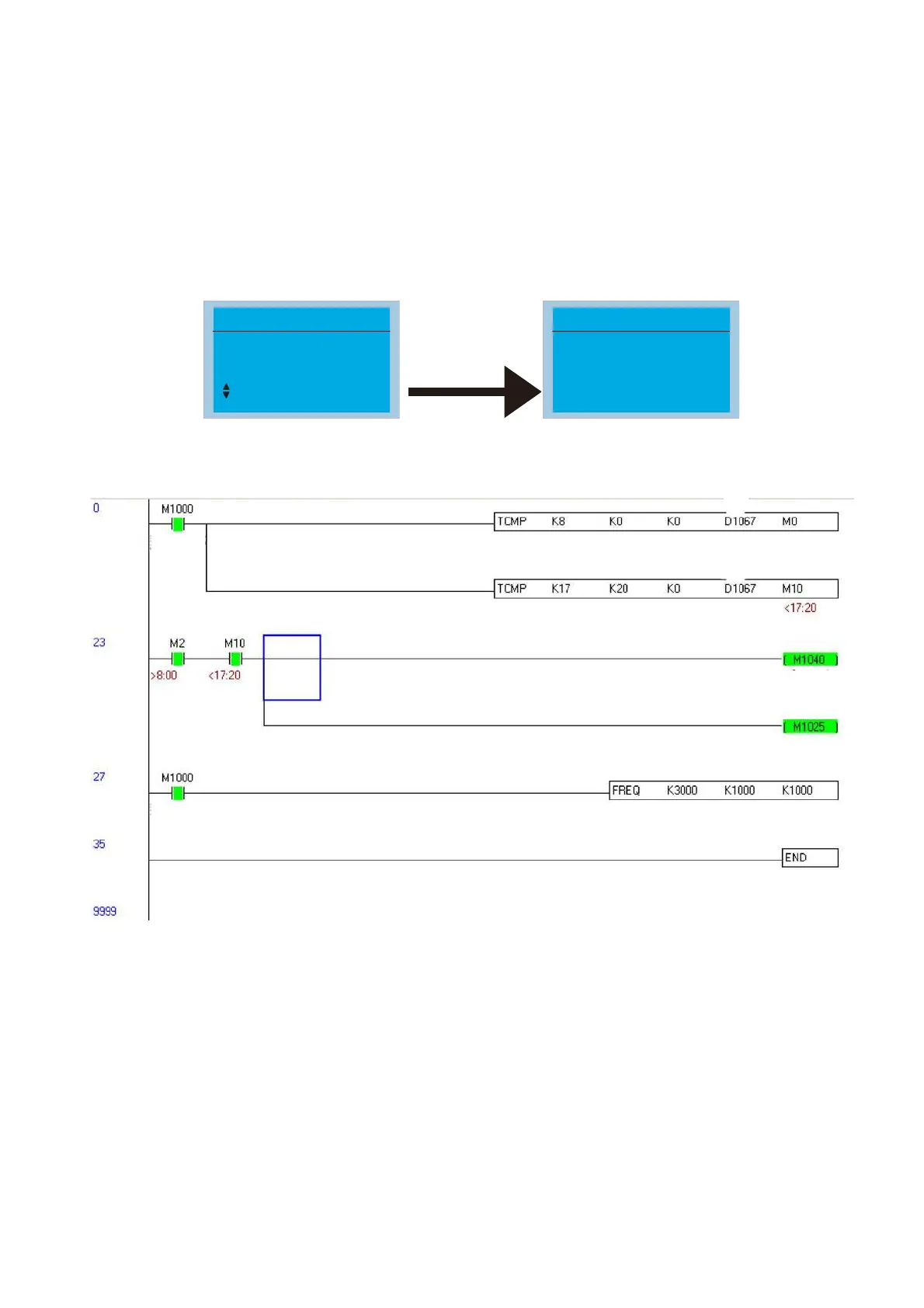

We set converter on during the period of 8:00–17:20, which allows us to write the following example
Normally open
contact of
operation
monitoring (a)
Normally open
contact of
operation
monitoring (a)
Servo on
Motor drive
Run (ON)/ Stop(OFF)
At K16
At K16
