Delta VFD370C43S-HS - Wiring for Canopen

Chapter 15 CANopen Overview C2000-HS
15-6
15-2 Wiring for CANopen

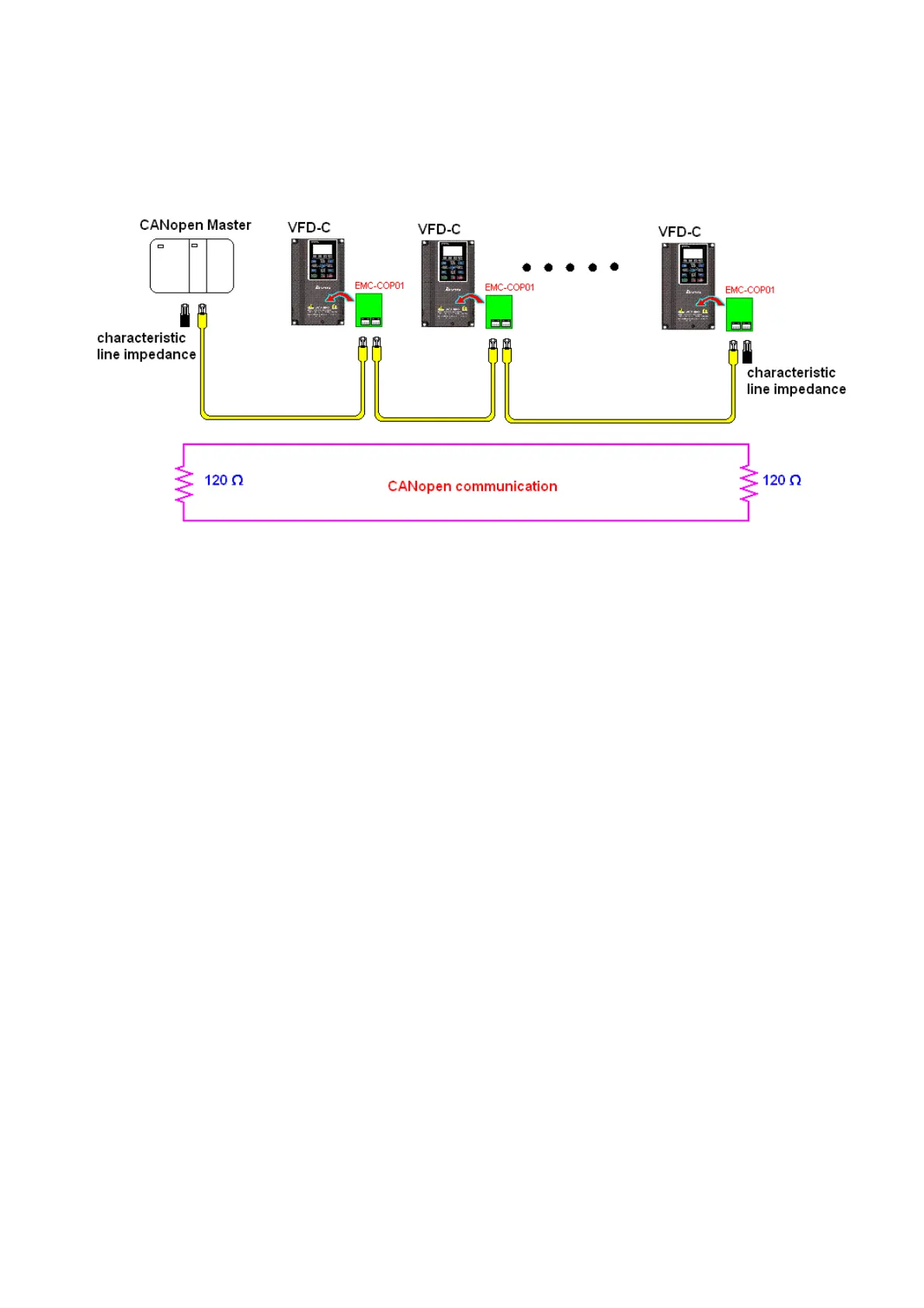

Use an external adapter card EMC-COP01 for CANopen wiring to connect CANopen to a
C2000-HS. The link uses a RJ45 cable. You must terminate the two farthest ends with 120 Ω
terminating resistors as shown in the picture below.
