Chapter 16 PLC Function ApplicationsC2000-HS
16-73

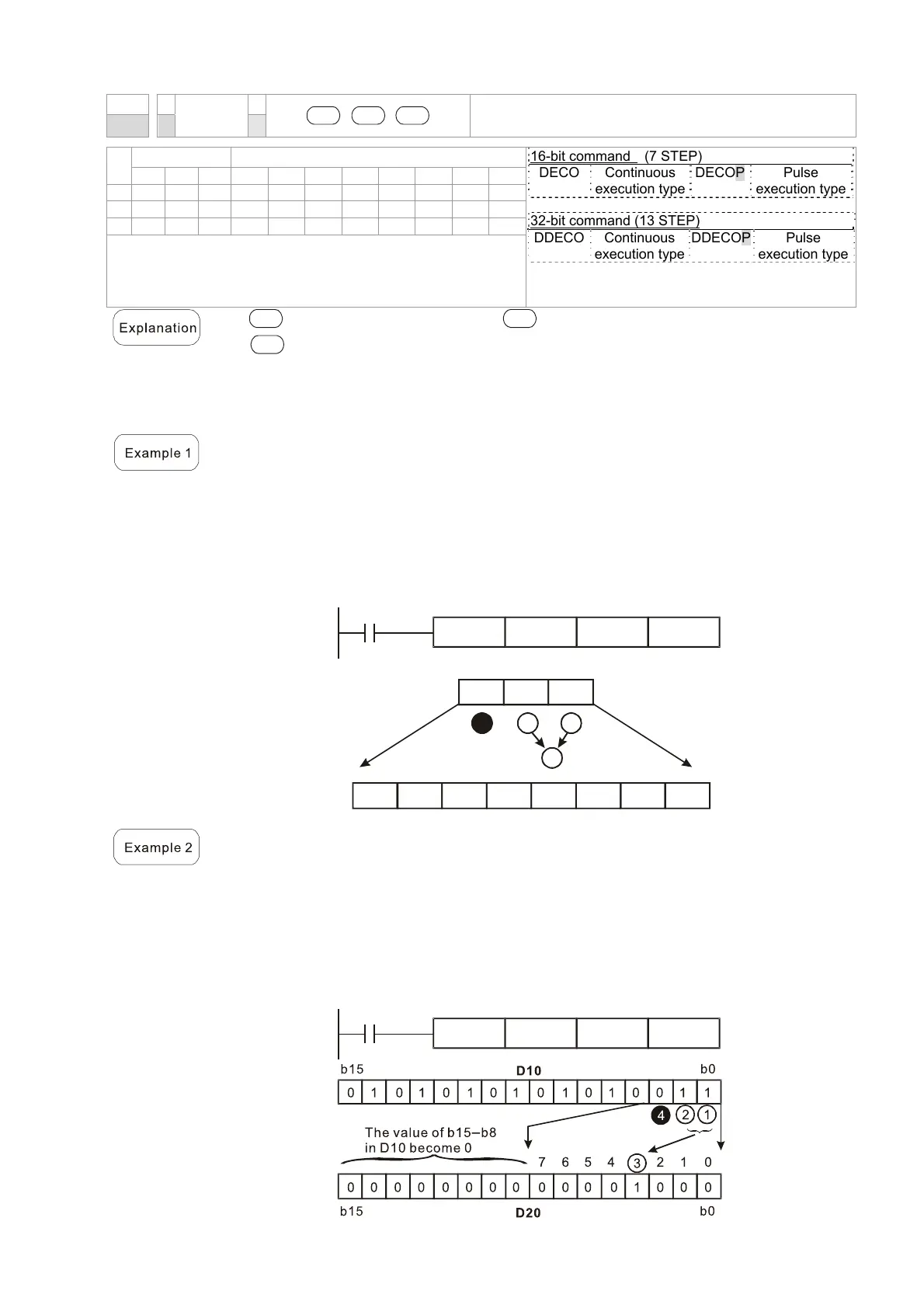

API
DECO
S D
n
Decoder
41
D P
Bit device Word device
16-bit command (7 STEP)
DECO Continuous
execution type
DECOP Pulse
execution type
32-bit command (13 STEP)
DDECO Continuous
execution type
DDECOP Pulse
execution type
Flag signal: none
X Y M K H KnX KnY KnM T C D
S * * * * * * * *
D * * * * * * *
n * *
Notes on operand usage: none

S
: Decoding source device.
D
: Device that saves the decoding result.
n
: Length of decoding bit.
 Decodes with the lower “n” bit, and saves the length of “2
n
” bit in D.
 This command usually uses pulse execution type command (DECOP).
 When D is the bit device, n = 1–8, when D is the word device, n = 1–4.
 When Dis the bit device, the valid range of n is 0< n ≦8. If n = 0 or n > 8, a fault
will occur.
 When n = 8, the maximum decoding will be 2
8
= 256 points.
 When M200 switches from Off to On, the content of X0–X2 is decoded to
M100–M107.
 If S = 3, M103 (the third digit starting from M100) = On.
 When the command is executed, M200 turns to Off. The ones that are decoded
and outputted act as usual.

DECOP X0 K3M100
M200
X2 X1 X0
M107 M106 M105 M104 M103 M102 M101 M100
011
1
0000 000
3
76 54 210
4 12
3
 When D is word device, the valid range of n is 0< n ≦4. If n = 0 or n > 4, the fault
occurs.
 When n = 4, the maximum decoding will be 2
4
= 16 points.
 When M200 switches from Off to On, the content of D10 (b2–b0) is decoded to
D20 (b7–b0). The unused digits (b15–b8) of D20 become 0.
 The lower 3 digits of D10 are decoded and saved in the lower 8 digits of D20, the
upper 8 digits are 0.
 When the command is executed, M200 turns to Off. The ones that are decoded
and outputted act as usual.
DECOP D10 K3D20
M200
